- Page 1 S9600-56DX Open Aggregation Router Hardware Installation Guide R1.2...
-
Page 2: Table Of Contents
Connecting the GNSS Interface ..................... 27 Connecting the 1PPS Interface ....................27 Connecting the 10MHz Interface ................... 28 Connecting the Transceiver ....................28 13 Cautions and Regulatory Compliance Statements .............. 29 Cautions and Regulatory Compliances .................. 29 S9600-56DX Hardware Installation Guide | i... -
Page 3: Overview
5G mobile Ethernet network. Due to its versatility, the S9600-56DX can be positioned into different parts of the network to perform aggregation, such as in the backhaul to aggregate BBU pooling or even as a Broadband Network Gateway (BNG) within the central office. -
Page 4: Preparation
PC with terminal emulation software. Refer to the "Initial System Setup" section for details. • Baud rate: 115200 bps • Data bits: 8 • Parity: None • Stop bits: 1 • Flow control: None S9600-56DX Hardware Installation Guide | 2... -
Page 5: Installation Environment Requirements
1.19 inches (3cm). Therefore, to accommodate the fan and power supply handles, a minimum space clearance of 6 inches (15.2cm) is needed at the back of the S9600-56DX. A total minimum reserve depth of 36 inches (91.4cm) is required. -
Page 6: Preparation Check List
S9600-56DX requires 2RU (3.45”/8.8cm) in height, 19” (48.3cm) in width, and need a minimum reserve depth of 36 inches (91.4cm) Thermal requirements S9600-56DX working temperature is 0 to 45°C (32°F to 113°F), airflow direction is front-to-back Installation tools required #2 Philips Screwdriver, 6-AWG yellow-and-green wire stripper, and... -
Page 7: Package Contents
(for 4 post) (22”~33” rack depth) Screw Kit (for Rack 1 set 2 x Screw M4.0*L5.5 0.004lb (1.9g)/1 set Mount Bracket) Power Cord 1.54lb (700g)/ 2 pcs 2 pcs 72.05” (1830mm) (AC only) 0.77lb (350g)/1 pcs S9600-56DX Hardware Installation Guide | 5... -
Page 8: Component Physical Information
0.23lb (105g) AC power cord (AC version only) 0.77lb (350g) 17.16” x 30” x 3.45” S9600-56DX (W x D x H) (436 x 762 x 87.7mm) Dimension PSU (W x D x H) 1.99” x 12.64” x 1.58” (50.5 x 321 x 40.2mm) Fan (W x D x H) 3.15”... -
Page 9: Identifying Your System
Identifying Your System S9600-56DX Overview Figure 4. PSU Overview Power supply unit (PSU) with 1+1 Redundancy. Hot swappable, field replaceable unit (FRU). AC Version: Figure 5. S9600-56DX Hardware Installation Guide | 7... -

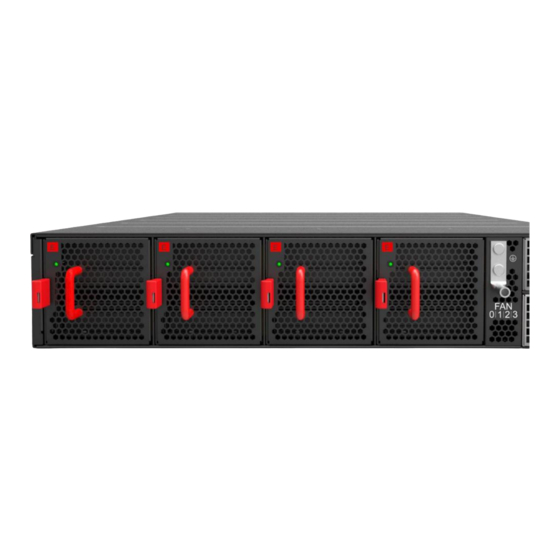

Page 10: Fan Overview
DC Version: Figure 6. Fan Overview 3+1 Redundant, hot swappable, field replaceable unit (FRU). Figure 7. Port Overview S9600-56DX Hardware Installation Guide | 8... - Page 11 1/10/25G 0 ~ 47 QSFP28 Up to 49.7mi (80km) 40/100G 0 ~ 7 QSFP-DD Up to 372.82mi (600km) 100/400G The 400G QSFP-DD interfaces on the S9600-56DX can support 400GZR and OpenZR+ transceivers. Figure 8. S9600-56DX Hardware Installation Guide | 9...
-
Page 12: Rack Mounting
Make sure the locking screw of the inner rail is positioned at the front of the chassis. 2.2 After the attachment pins are secured to the inner rail, lock the inner rail to the chassis using two M4 screws (one on each chassis side). S9600-56DX Hardware Installation Guide | 10... - Page 13 4.4 Push the blue release tab on each rail to unlock the rails and slide the chassis all the way into the rack. 4.5 Lock the chassis into place by using the screw on the front of the inner rail. S9600-56DX Hardware Installation Guide | 11...
- Page 14 Figure 12. S9600-56DX Hardware Installation Guide | 12...
-
Page 15: Installing Fan Modules
5. An audible click will be heard when the fan module is installed correctly. The fan module will not go in all the way if it is installed in the wrong direction. Figure 15. S9600-56DX Hardware Installation Guide | 13... -
Page 16: Installing Power Supply Units
4. Carefully slide the new PSU into the power bay and gently push until it is flush with the case. 5. An audible click will be heard when the PSU is installed correctly. The PSU will not go in all the S9600-56DX Hardware Installation Guide | 14... - Page 17 Figure 18. S9600-56DX Hardware Installation Guide | 15...
-
Page 18: Grounding The Router
4. Using a crimping tool, firmly secure the grounding wire to the grounding lug. Figure 19. 5. Locate the designated location for securing the grounding lug, which is located on the rear of the router and remove the protective label. S9600-56DX Hardware Installation Guide | 16... - Page 19 Figure 20. 6. Using 2 M4 screws and 2 washers (provided with the package contents), firmly lock the grounding lug to the designated grounding location on the router. Figure 21. S9600-56DX Hardware Installation Guide | 17...
-
Page 20: Connecting Power
Also, please ensure that both PSUs have been properly installed before powering up the equipment, as the S9600-56DX is designed to support 1 + 1 power redundancy. 2. Attach the DC power cables to the lugs. - Page 21 (below figure top picture). Secure the one-hole lugs (with the DC power cable attached) to the terminal block (below figure middle picture). Put plastic cover back on terminal block to guard against contact with terminals (below figure bottom picture). S9600-56DX Hardware Installation Guide | 19...
-
Page 22: Ac Version
Also, please ensure that both PSUs have been properly installed before powering up the equipment, as the S9600-56DX is designed to support 1 + 1 power redundancy. S9600-56DX Hardware Installation Guide | 20... - Page 23 If connected correctly, when turned on, the LED on the PSU will light up with a solid Green color designating normal operation. If only a single 110VAC power source is available, the S9600-56DX can still be powered using both PSUs (1000 watts each for a total output of 2000 watts).
-
Page 24: Verifying System Operation
PSU0 is working normal Solid Amber PSU0 fail (PSU0 need service) No Power Solid Green PSU1 is working normal Solid Amber PSU 1 fail (PSU1 need service) No Power Blinking Blue Enabled beacon feature S9600-56DX Hardware Installation Guide | 22... -
Page 25: Psu Fru Led
Additional information about fan status can be obtained by the LEDs located on the fan itself. LED Condition Equipment Status No input power to all power supplies Green Fan FRU function normal Amber Fan FRU abnormal, service is required S9600-56DX Hardware Installation Guide | 23... -
Page 26: Initial System Setup
USB cable provided in the packaging contents. Download the suitable driver for your operating system (OS) using the URL below: • https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge- vcp-drivers • https://www.silabs.com/ and search for CP210X Figure 28. S9600-56DX Hardware Installation Guide | 24... - Page 27 After the connection is established, a prompt for the username and password displays. Enter the username and password to access the CLI. The username and password should be provided by the Network Operating System (NOS) vendor. S9600-56DX Hardware Installation Guide | 25...
-
Page 28: Cable Connections
1. Connect one end of a straight-through Ethernet cable to the GNSS unit 2. Connect the other end of the straight-through Ethernet cable to the port marked “TOD” located on the front panel of the router. Figure 30. S9600-56DX Hardware Installation Guide | 26... -
Page 29: Connecting The Gnss Interface
Connect an external GNSS antenna with an impedance of 50 ohms to the port marked “GNSS ANT” located on the front panel of the router. Figure 31. Connecting the 1PPS Interface Connect an external 1PPS cable with an impedance of 50 ohms to the port labelled “ 1PPS”. Figure 32. S9600-56DX Hardware Installation Guide | 27... -
Page 30: Connecting The 10Mhz Interface
3. Place the bail (wire handle) in the unlocked position and align the transceiver with the port. 4. Slide the transceiver into the port and gently push until it is secured in place. An audible click can be heard when the transceiver is secured in the port. S9600-56DX Hardware Installation Guide | 28... -
Page 31: Cautions And Regulatory Compliance Statements
Warning: This equipment must be grounded. Do not defeat the ground conductor or operate the equipment without correctly grounding the equipment. If there is any uncertainty about the integrity of the equipment's grounding, please contact the electrical inspection authority or a certified electrician. S9600-56DX Hardware Installation Guide | 29... - Page 32 This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions. S9600-56DX Hardware Installation Guide | 30...
- Page 33 Only afforded by the use of a tool or lock and key, or other means of security, and controlled by the authority responsible for the location. Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75. S9600-56DX Hardware Installation Guide | 31...
- Page 34 www.ufispace.com...
