Verifying System Operation

Front Panel LED

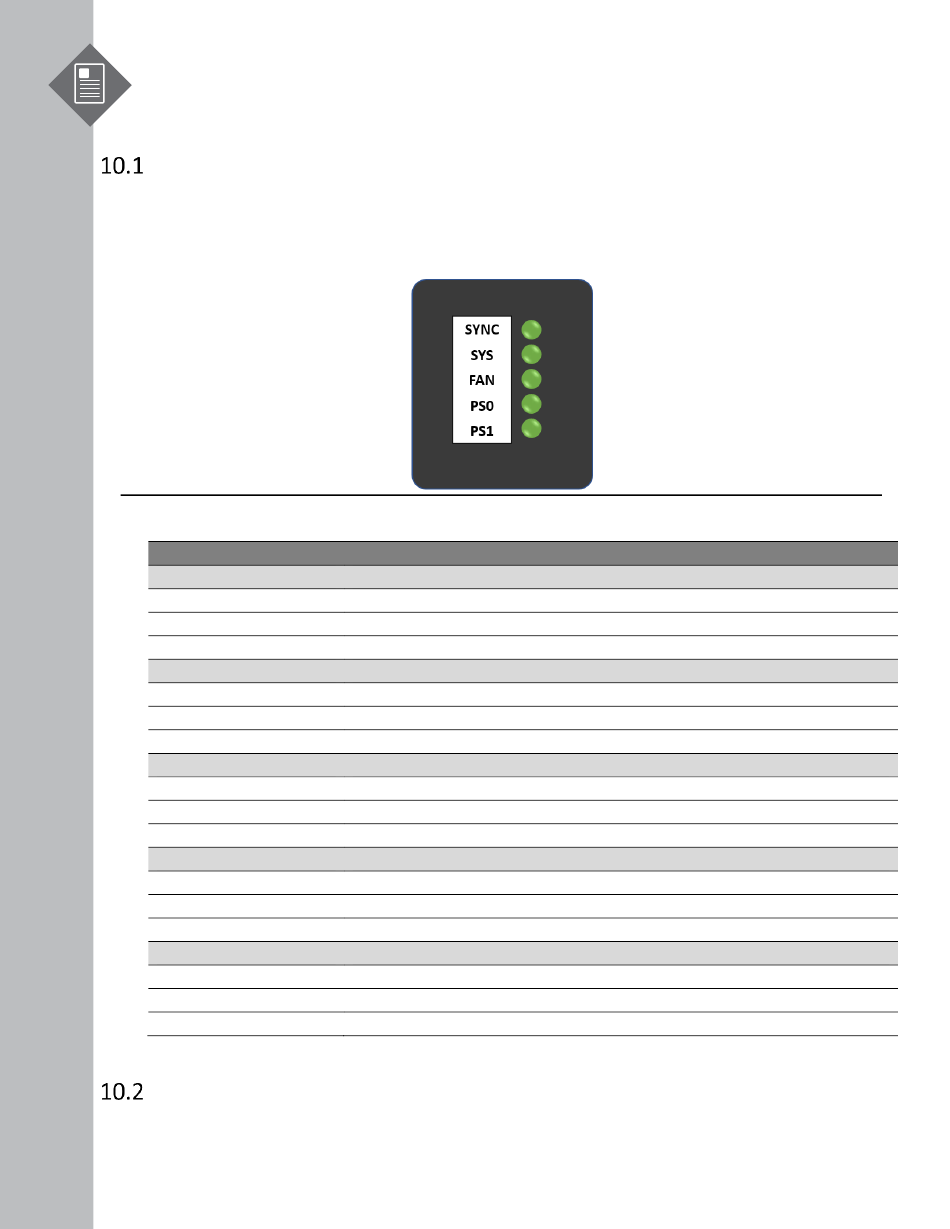

Verify basic operations by checking the system LEDs located on the front panel. When operating
normally, the SYS, FAN, PS0 and PS1 LEDs should all display green.
LED Condition
SYNC
Off
Solid Green
Solid Amber
SYS
OFF
Solid Green
Solid Amber
FAN
OFF
Solid Green
Solid Amber
PS0
OFF
Solid Green
Solid Amber
PS1
OFF
Solid Green
Solid Amber

PSU FRU LED

Additional information about PSU status can be obtained by the LEDs located on the PSU itself.
Figure 28.
Equipment Status
System timing/clock synchronization is disabled or unsynchronized
System timing/clock synchronization to external reference
System timing/clock synchronization is in free-run or holdover mode
No power
Host CPU/BMC boot complete
Power is up but Host CPU/BMC boot failed
No FAN modules present or FAN modules are not initialized
All FAN modules are working normal
One or more FAN module(s) need service
No Power
PSU0 is working normal
PSU0 fail (PSU0 need service)
No Power
PSU1 is working normal
PSU 1 fail (PSU1 need service)
