Page 2: Table Of Contents
10.1 Front Panel LED ..................18 10.2 PSU FRU LED ....................19 10.3 Fan FRU LED ....................19 11 Initial System Setup ..............20 11.1 Connecting Console Cables ...............20 11.3 Launching a Terminal Emulator ..............21 11.4 Accessing CLI .....................21 S9705-48D Hardware Installation Guide | i... - Page 3 12 Installing the Transceiver ............. 22 13 Cautions and Warnings ..............23 13.1 Cautions and Regulatory Compliance Statements ........23 13.2 Installation Location Statement ..............24 13.3 Compliance Statements ................24 S9705-48D Hardware Installation Guide | ii...
-
Page 4: Overview
Providing 400GbE fabric ports, the S9705-48D enables the disaggregated architecture required to fulfill the high traffic loading in a 5G mobile Ethernet network. As part of UfiSpace’s S9700 Series, the S9705-48D is a robust, flexible and carrier-grade router that is coupled with the S9700-53DX and/or S9700-23D routers for small/medium or large clusters. -
Page 5: Preparation
• Desktop or laptop with terminal emulation software. Refer to section 11, for details. • Baud rate: 115200 bps • Data bits: 8 • Parity: None • Stop bits: 1 • Flow control: None S9705-48D Hardware Installation Guide | 2... -
Page 6: Installation Environment Requirements
PSU FRUs. A total minimum reserve depth for the cabinet is 36 inches (94.4cm). • Cooling: The S9705-48D airflow direction is front-to-back. Make sure the air flow is in the same direction with other equipment in the same rack... -
Page 7: Dc Version
PSU FRUs. A total minimum reserve depth for the cabinet is 36 inches (94.4cm). • Cooling: The S9705-48D airflow direction is front-to-back. Make sure the air flow is in the same direction with other equipment in the same rack... -
Page 8: Preparation Task Checklist
(AC Version: 200 to 240V AC, 12.5 x 2 ampere maximum DC Version: -40 to -72V DC, 60 to 33 x 2 ampere maximum) Installing space and weight load requirement: (S9705-48D chassis has a height of 2RU (3.45”/8.8cm), a width of 19” (48.3cm), and a depth of 30” (76.2cm) without considering cable routing). Thermal requirement (S9705-48D working temperature is 32 to 113°F (0 to 45°C), airflow... -
Page 9: Package Contents
AC power cord 0.7lbs (318g) (AC version only) S9705-48D (W x D x H) 17.16” x 30” x 3.45” (436 x 762 x 87.6mm) Dimension PSU FRU (W x L x H) 1.99” x 14.17” x 1.58” (50.5 x 360 x 40mm) Fan module (W x H x D 3.15”... -
Page 10: Identifying Your System

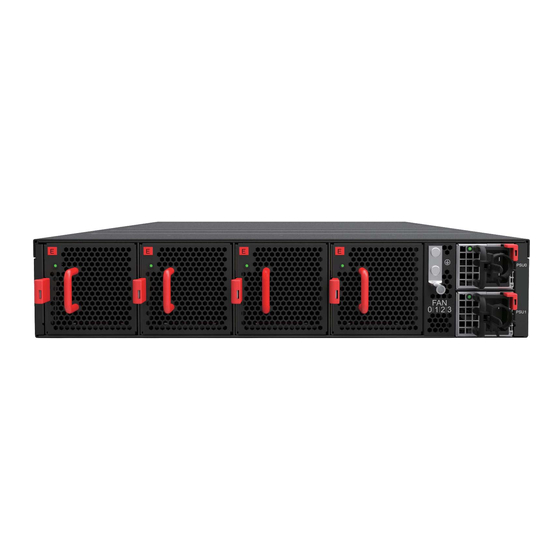

4 Identifying Your System S9705-48D Overview PSU FRU Overview 1+1 Redundant, hot swappable power supply field replaceable unit (PSU FRU). 4.2.1 AC Version S9705-48D Hardware Installation Guide | 7... -
Page 11: Dc Version
4.2.2 DC Version Fan FRU Overview 3+1 Redundant, hot swappable fan field replaceable unit (FRU). S9705-48D Hardware Installation Guide | 8... -
Page 12: Port Overview
Port Overview Port ID Form Factor Maximum Support Distance Support Speed 0-47 QSFP-DD 328.1ft (100m) 400GE S9705-48D Hardware Installation Guide | 9... -
Page 13: Mounting The Switch In A Rack
It is recommended that switch installation be done by two individuals. One individual should hold the switch in position on the rack, while the other secures it in place using the rail slide screws. Caution S9705-48D Hardware Installation Guide | 10... -
Page 14: Installing The Fan Modules
5. An audible click will be heard when the fan module is installed correctly. The fan module will not go in all the way if it is installed in the wrong direction. S9705-48D Hardware Installation Guide | 11... -
Page 15: Installing The Power Supply Units
4. Carefully slide the new PSU into the power bay and gently push until it is flush with the switch case. 5. An audible click will be heard when the PSU is installed correctly. The PSU will not go in all the way if it is in the wrong direction. S9705-48D Hardware Installation Guide | 12... -
Page 16: Grounding The Switch
3. Insert the exposed grounding wire all the way into the hole of the ground lug (provided with switch package contents). 4. Using a crimping tool, firmly secure the grounding wire to the ground lug. S9705-48D Hardware Installation Guide | 13... - Page 17 5. Remove yellow tape located on the switch chassis that is covering the holes for securing the ground lug. 6. Using 2 M4 screws and 4 washers (provided with switch package contents), firmly lock the ground lug to the switch chassis. ground lug to the switch chassis. S9705-48D Hardware Installation Guide | 14...
-
Page 18: Connecting Power
S9705-48D. Ensure that both PSUs have been properly installed before powering up the switch, as the S9705-48D is designed to support 1 + 1 power redundancy Connecting the AC Version PSU 9.2.1... - Page 19 6. Use a heat source to secure the heat shrink tubing in place. Allow the heat shrink tubing to cool before attaching the DC power cable. An example of the installed DC version with insulation material as below. S9705-48D Hardware Installation Guide | 16...
-
Page 20: Attaching The Dc Power Cable
The PSU has a built in 80 amperes, fast acting fuse based on the PSU maximum capacity, which will act as a second tier system protection in case the power distribution unit’s fuse is not functioning. S9705-48D Hardware Installation Guide | 17... -
Page 21: Verifying Switch Operation
One or more FAN module(s) need service Blinking Amber Reserved LED Condition PSU FRU Status No Power Solid Green PSU 0 is working well Blinking Green Reserved Solid Amber PSU 0 fail (PSU0 need service) Blinking Amber Reserved S9705-48D Hardware Installation Guide | 18... -
Page 22: Psu Fru Led
Additional information about Fan status can be obtained by the LEDs located on the Fans itself. LED Condition Fan Status Fan Status No input power to all power supplies Green Fan FRU function normal Yellow Fan FRU abnormal, service is required S9705-48D Hardware Installation Guide | 19... -
Page 23: Initial System Setup
USB port located on the switch. Download the suitable driver for your operating system (OS) using the URL below: • https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge- vcp-drivers • https://www.silabs.com/ and search for CP210X S9705-48D Hardware Installation Guide | 20... -
Page 24: Launching A Terminal Emulator
Flow control: None 11.3 Accessing CLI After the connection is established, a prompt for the username and password displays. Enter the username and password provided to you in order by your software vendor to access the CLI. S9705-48D Hardware Installation Guide | 21... -
Page 25: Installing The Transceiver
4. Slide the transceiver into the port and apply gentle pressure to seat it in place. An audible click sound should be heard when the transceiver is correctly installed into the port. S9705-48D Hardware Installation Guide | 22... -
Page 26: Cautions And Warnings
1/-2 recognized pluggable modules. Warning Avertissement: Ne pas utiliser d’instruments optiques pour voir la sortie du laser. L’utilisation de instruments optiques pour afficher la sortie laser augmente les risques oculaires. Utilisez uniquement UL/CSA, IEC/EN60825-1 /-2 reconnu modules enfichables. S9705-48D Hardware Installation Guide | 23... -
Page 27: Installation Location Statement
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. S9705-48D Hardware Installation Guide | 24... - Page 28 This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions. S9705-48D Hardware Installation Guide | 25...
