This publication describes the installation procedure for the 4100/4120-6014 Network Interface
Introduction
Card (NIC) and the following media modules:
•
•
•
Inspecting Contents
Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If
of Shipment
damage is apparent, immediately file a claim with the carrier and notify Simplex.
•
Related
Documentation
•
In this Publication
This publication discusses the following topics:
2001, Simplex Time Recorder Co., Westminster, MA 01441-0001 USA
All specifications and other information shown were current as of publication, and are subject to change without notice.
and 4100/4120-Series Media Modules
4100/4120-0142 Wired Media Card
4100/4120-0143 Fiber Media Card
4100/4120-0144 Modem Media Card
4100 Field Wiring Diagrams 841-731 (power-limited) or 841-995 (non power-limited)
4100U System Installation Guide (574-848)
Cautions, Warnings, and Regulatory Information
Introduction to the 4100 Network Interface Card (NIC)
Jumper Settings
Setting the NIC Daughter Card Address
Mounting Media Cards to the NIC
Installing Motherboards into 2975-91xx Back Boxes (4100)
Installing Motherboards into 2975-94xx Back Boxes (4100U)
Installing the Daughter Card
Wiring
Checkout Procedure
firealarmresources.com
4100/4120-6014 NIC
Installation Instructions
Topic
See Page
2
3
9
10
12
13
14
15
16
25
579-182
Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Simplex 4100 Series

Summary of Contents for Simplex 4100 Series

  • Page 1 4100/4120-0143 Fiber Media Card • 4100/4120-0144 Modem Media Card Inspecting Contents Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If of Shipment damage is apparent, immediately file a claim with the carrier and notify Simplex. •...

  • Page 2: Cautions, Warnings, And Regulatory Information

    Service In the event of equipment malfunction, all repair should be performed by Simplex Time Recorder Requirements or an authorized agent. It is the responsibility of users requiring service to report the need for service to our Company or to one of our authorized agents.

  • Page 3: Introduction To The 4100 Network Interface Card (Nic)

    Introduction to the 4100 Network Interface Card (NIC) Overview The Network Interface Card (NIC) is a slave card that uses the standard 4100 serial bus to communicate with the master. The NIC connects FACPs in a network, allowing for communication between each panel via fiber, modem, or twisted shielded pair wire in a Style 7 wiring configuration.

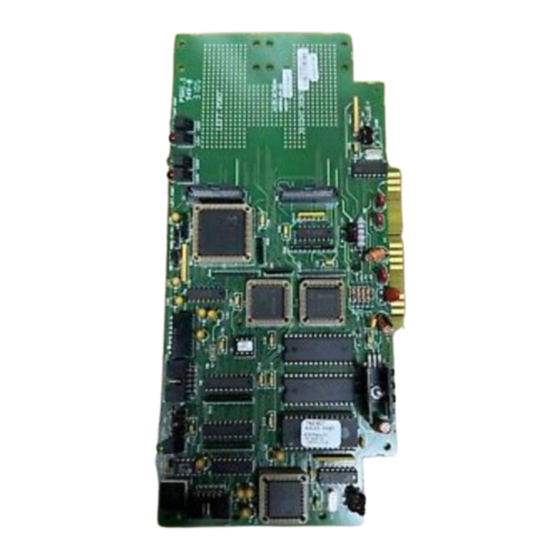

  • Page 4 Introduction to the 4100 Network Interface Card (NIC), Continued Illustration Figure 1 depicts the 4100-6014 Network Interface Card. DATA TRANSMIT/ RECEIVE LEDs (LED2 THROUGH LED5) MEDIA CARD 40-PIN CONNECTORS (P5, P6) DATA RATE JUMPER PORT (P3) DATA PROTOCOL JUMPER PORT (P3) MOTHERBOARD CONNECTOR (P4)
  • Page 5 Introduction to the 4100 Network Interface Card (NIC), Continued NIC Card LED The 4100-6014 NIC module has the following LEDs: Indications LED1 (yellow). Illuminates when • The host 4100 requests it to illuminate • A transmission fails • It is off-line with the 4100 host •...
  • Page 6 Introduction to the 4100 Network Interface Card (NIC), Continued Media Module There are three modules that can be plugged into the 4100-6014 NIC: Illustrations • 4100/4120-0144 Modem Media Card • 4100/4120-0143 Fiber-Optic Media Card • 4100/4120-0142 Wired Media Card Each module is shown below. MODEM TYPE JUMPER PORT RJ-11...
  • Page 7 Introduction to the 4100 Network Interface Card (NIC), Continued Media Module FIBER-OPTIC DATA: 40-PIN NETWORK Illustrations TRANSMIT (U1), INTERFACE CARD (continued) RECEIVE (U2) CONNECTOR (J1) Figure 3. The 4100/4120-0143 Fiber-Optic Media Card 40-PIN NETWORK RESERVED (TB1) INTERFACE CARD CONNECTOR (P1) Figure 4.
  • Page 8 Introduction to the 4100 Network Interface Card (NIC), Continued Modem Media Card The Modem Media Card has the following LEDs: LED Indications LED1. Illuminates when the modem goes off-hook in order to connect to the transmission lines. LED2. Illuminates when the modem receives an external call during dial-up mode. Specifications Refer to Table 1 for electrical and environmental requirements for the 4100 NIC and media cards.

  • Page 9: Jumper Settings

    Jumper Settings Overview The NIC card, along with the fiber, modem, and wired media cards, all have jumpers that must be set. NIC Card There are two shunt jumper ports on the NIC card that need to be set: P3 and P4. Jumper Settings Jumper port P3 on the NIC card determines the data transmission rate, 57.6 kbits/second or 9600 bits/second, that the NIC card is using.
  • Page 10 Setting the NIC Daughter Card Address Overview Switch SW2 on the 4100 NIC is a bank of eight dip switches. From left to right (see Figure 5, below) these switches are designated as SW2-1 through SW2-8. The function of these switches is as follows: •...
  • Page 11 Setting the NIC Daughter Card Address, Continued Overview (continued) Table 2. 4100-6014 Module Card Addresses Address SW 2-2 SW 2-3 SW 2-4 SW 2-5 SW 2-6 SW 2-7 SW 2-8 Address SW 2-2 SW 2-3 SW 2-4 SW 2-5 SW 2-6 SW 2-7 SW 2-8 firealarmresources.com...

  • Page 12: Mounting Media Cards To The Nic

    Mounting Media Cards to the NIC Overview The first step of the installation process is to identify the media cards that have to be connected to the NIC, and connect them properly. Media Board Refer to Figure 6 as you read the following instructions. Mounting Connect P1 on the wired media card, or J1 on the modem or fiber media cards, to P5 (the left port) on the NIC.
  • Page 13 Installing Motherboards into 2975-91xx Back Boxes (4100) Overview The NIC card can be mounted to either 2975-91xx Master Controller Bays (4100) or, for the 4100U, 2975-94xx CPU Bays. This section describes mounting into 4100 Master Controller Bays. Installing into a Use the following guidelines and instruction when installing into a master controller bay.
  • Page 14 Installing Motherboards into 2975-94xx Back Boxes (4100U) Overview The NIC card can be mounted to either 2975-91xx Master Controller Bays (4100) or, for the 4100U, 2975-94xx CPU Bays. This section describes mounting into 4100U CPU Bays. Installing into a Up to two motherboards may be installed with the system CPU in the CPU bay. In most cases, 2975-94xx CPU Bay the NIC is used with the CPU motherboard.

  • Page 15: Installing The Daughter Card

    Installing the Daughter Card Installing the The 4100 NIC daughter card, shown in Figure 9 below, inserts into the connector located in the Daughter Card center of the motherboard. The connector is keyed so that the daughter card fits only one way. Before installing the card, examine the slot in the motherboard and the fingers on the daughter card and note where the key is located.
  • Page 16 Wiring Overview The type of wiring used depends on the type of media cards being used in the system. The only time the motherboard terminals are used is when wired media cards are plugged into the daughter card. Otherwise, modem and fiber connections are made straight to and from the media cards. General Guidelines Make sure these guidelines are accounted for before wiring: •...
  • Page 17 Wiring, Continued Power-Limited Make sure these guidelines are accounted for before wiring for power-limited systems: Guidelines • Non-power limited field wiring (AC power, batteries, City connection) must be installed and routed in the shaded areas shown in Figure 10. • Power-limited field wiring must be installed and routed in the non-shaded areas shown in Figure 10, with the exception of City wiring.
  • Page 18 Wiring, Continued • Power-Limited Auxiliary power only: In order to connect a circuit using power-limited wiring, the devices Guidelines being powered must all be addressable, or a UL Listed EOL relay must be used to supervise (continued) the circuit. Refer to Figure 11 for wiring directions for the EOL relay. TO AU POWER Note: BLACK...
  • Page 19 Wiring, Continued Media Card Wiring Data wiring is dependent on the type of media card used on each 4100-6014 NIC in the system. Guidelines • TB1 on the NIC motherboard (565-275) corresponds to the media card in the NIC daughter card’s (565-516) right port (using the NIC daughter card’s connector P6). •...
  • Page 20 Wiring, Continued Modem Wiring The Modem Media Card uses RJ-11 connectors to connect 4100-6014 NIC Assemblies across parts of a network. Use the RJ-11 connector (P2) to connect nodes that use the modem media card. Do not use connector P1 (P1 is reserved for when the daughter card is used as a physical bridge). Leased lines must be analog, full-duplex, private line (no dial tone), with a two-wire RJ-11 interface.
  • Page 21 Wiring, Continued Fiber-Optic Wiring Connectors U1 (transmitter) and U2 (receiver) on the Fiber-Optic Media Card are used to connect 4100-6014 NICs across parts of a network. The maximum distance between nodes when using fiber cable is dependent on the size of the cable.
  • Page 22 Wiring, Continued Wiring with the Node-to-node wiring with the Wired Media Card requires the use of TB1 and TB2 on the 575-274 Wired Media Card Master Motherboard or the 575-275 Class B Motherboard. IMPORTANT: TB1 on the wired media card must not be used when it is connected to the 4100-6014 NIC.
  • Page 23 Wiring, Continued Wiring with the Wired Media Card 18 AWG (continued) 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 575-275 CLASS B MOTHERBOARD 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Figure 14.
  • Page 24 Wiring, Continued Combining Figure 15 is an illustration of how all three wiring types fit together in a Style 4 configuration. Wiring Types TELCO Cable MODEM MEDIA CARD U1 U2 Fiber-Optic FIBER Cable MEDIA CARD MODEM MEDIA CARD 4100-6014 4100-6014 575-275 CLASS B NETWORK NETWORK...

  • Page 25: Checkout Procedure

    Checkout Procedure Checkout Procedure When the 4100 NIC installation is completed, verify its operation using the Network Programmer’s Reports. In addition, do the following: • Test point status changes • Test common annunciation • Interrogate the network about point information •...
