Introduction
In this Publication
© 2001-2011 SimplexGrinnell LP. All rights reserved.
Specifications and information shown were current as of publication, and are subject to change without notice.
Simplex and the Simplex logo are trademarks of Tyco International Ltd. and its affiliates and are used under license.

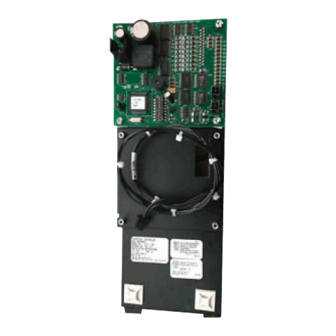

This publication describes the installation procedure for the 4100-1288 LED/Switch Controller
Card and the associated 4100-1275 to –1278, 4100-1280 to –1287, 4100-1295, 4100-1296 and
4100-1299 to -1302 LED/Switch Modules.
This product is compatible with 4100U and 4100ES Fire Alarm Control Panels (FACP).
This publication discusses the following topics:
Cautions and Warnings
The LED/Switch User Interface
Step 1. Configuring the LED/Switch Controller Card
Step 2: Mounting
Step 3: Interconnecting Cards
4100-1300 Switch and LED Mapping for Programmer
LED/Switch Modules
Installation Instructions
Topic
See Page #
2
3
6
8
12
13
574-843
Rev. K
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simplex 4100-1288
Summary of Contents for Simplex 4100-1288
- Page 1 © 2001-2011 SimplexGrinnell LP. All rights reserved. 574-843 Specifications and information shown were current as of publication, and are subject to change without notice. Rev. K Simplex and the Simplex logo are trademarks of Tyco International Ltd. and its affiliates and are used under license.
-
Page 2: Cautions And Warnings
- Upon DO NOT INSTALL ANY SIMPLEX® PRODUCT THAT APPEARS DAMAGED unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex product supplier. -
Page 3: The Led/Switch User Interface
User Interface functionality is driven by the LED/Switch Controller Card, which mounts behind one of the display cards. The varieties of modules are as follows: • 4100-1288 LED/Switch Controller Card with mounting plate. • 4100-1289 LED/Switch Controller Card (no mounting plate; mounts on extra space of 4100-1288). - Page 4 The LED/Switch User Interface, Continued LED/Switch The LED/switch controller card is an FACP slave that is intended to mount behind a user interface Controller Card (UI) card. The LED/switch controller handles up to 64 switches and 64 LEDs on the UI cards and communicates their status to the FACP CPU.
- Page 5 The LED/Switch User Interface, Continued LED/Switch If more than 64 LEDs or 64 switches are used, a second controller may be installed. Controller Card LED 1. This LED illuminates if communication loss between the controller and the CPU occurs. It is independent of jumper P1 (which configures different communication loss features). Display Cards All types of display cards are mounted to the front of a cabinet, and are connected to each other via a ribbon cable.
-
Page 6: Step 1. Configuring The Led/Switch Controller Card
Positions 2 and 3 activate the communication loss feature. Setting the 4100-1288/1289 LED/Switch Controller only. The controller device address is set via DIP switch Controller Address SW1, which is a bank of eight switches. From left to right (see Figure 2, below) these switches are designated as SW1-1 through SW1-8. - Page 7 Step 1. Configuring the LED/Switch Controller Card, Continued Setting the Controller Address Table 2. Controller Addresses Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8 Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8...
- Page 8 Step 2: Mounting Overview This section covers the following topics: • Mounting Display Cards to a Bay. All display cards must be mounted to the front of a bay. • Changing Display Card LEDs. Yellow, green, and red replacement LEDs are available for customizing the LED pattern on a display card.
- Page 9 Step 2: Mounting, Continued Mounting the Refer to the figures and instructions below to mount the controller card assembly to the back of Controller Card one of the LED/switch cards. Assembly 1. Use four 322-123 Nuts and four 268-009 Washers to secure the 637-141 Bracket to the inside front of the expansion box.
- Page 10 Step 2: Mounting, Continued Changing Display Table 3. Color Codes for Visual Indicators Card LEDs Function Color Alarm Inputs Alarm Signal Red with unique identifier Alert Signal Red with unique identifier Page Select Green Signal Circuit Fault Yellow Ancillary Device “ON” Green or Blue Ancillary Device “OFF”...
- Page 11 Step 2: Mounting, Continued Changing Display Card LEDs Figure 5. Assembling / Disassembling the LED Display Card...
-
Page 12: Step 3: Interconnecting Cards
Step 3: Interconnecting Cards User Interface wiring consists of connecting the LED/switch controller card to the Power Distribution Interface (PDI) and connecting display cards to each other. 1. Use Harness 734-008 to connect P2 on the controller card to one of the 4-pin connectors on the PDI. - Page 13 4100-1300 Switch and LED Mapping for Programmer LED1 LED9 LED2 LED10 SW10 LED3 LED11 SW11 LED4 LED12 SW12 LED5 LED13 SW13 LED6 LED14 SW14 LED7 LED15 SW15 LED8 LED16 SW16 Figure 7. 4100-1300 LED/Switch Mapping...
- Page 14 574-843 Rev. K...
