This publication describes the installation procedure for the following:
Introduction
•
•
•
Inspecting Contents
Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If
of Shipment
damage is apparent, immediately file a claim with the carrier and notify Simplex.
Related
•
Documentation
•
In this Publication
This publication discusses the following topics:
2001, Simplex Time Recorder Co., Westminster, MA 01441-0001 USA
All specifications and other information shown were current as of publication, and are subject to change without notice.
Event and Point Reporting Digital Alarm
Communications Transmitters (DACTs)
4100/4120-0155 Serial Digital Alarm Communications Transmitter (SDACT)
4100-6052/9830 Event Reporting Digital Alarm Communications Transmitter
(Event Reporting DACT)
4100-6053/9831 Point Reporting Digital Alarm Communications Transmitter
(Point Reporting DACT).
4100 Field Wiring Diagrams 841-731 (power-limited) or 841-995 (non power-limited)
4100U Fire Alarm System Installation Guide (574-848)
Cautions, Warnings, and Regulatory Information
Introduction to the DACTs
Wiring Guidelines
Step 1. Connecting to the Phone Lines
Step 2. Configuring the DACT
Step 3. Data and Power Wiring
Step 4. Mounting
Step 5. Testing
Compatibility Table
firealarmresources.com

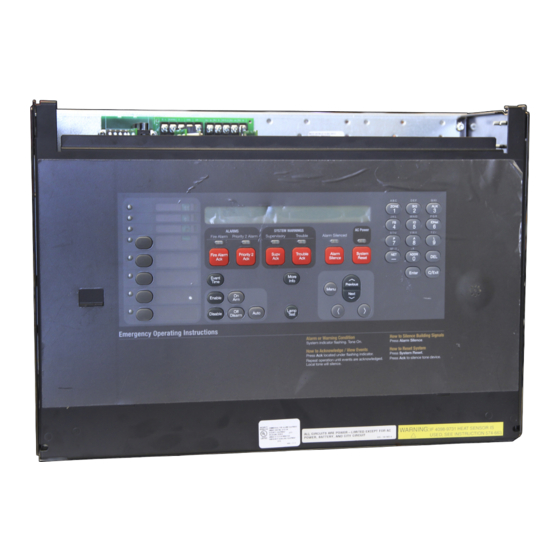

4100- and 4120-Series
Installation Instructions
Topic
See Page
2
4
7
10
12
14
15
17
18
574-836
Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simplex 4100 Series

Summary of Contents for Simplex 4100 Series

  • Page 1 4100-6053/9831 Point Reporting Digital Alarm Communications Transmitter (Point Reporting DACT). Inspecting Contents Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If of Shipment damage is apparent, immediately file a claim with the carrier and notify Simplex.

  • Page 2: Cautions, Warnings, And Regulatory Information

    Product operation and reliability depends upon proper installation. ELECTRICAL HAZARD - Disconnect electrical field power when making any internal adjustments or repairs. Servicing should be performed by qualified Simplex Representatives. STATIC HAZARD - Static electricity can damage components. Therefore, handle as follows: •...
  • Page 3 See installation instructions for details. Service In the event of equipment malfunction, all repair should be performed by Simplex Time Recorder Requirements or an authorized agent. It is the responsibility of users requiring service to report the need for service to our Company or to one of our authorized agents.
  • Page 4 Introduction to the DACTs Overview The DACTs are option cards that mount within 4100 Fire Alarm Control Panels (FACP). • The 4100/4120-0155 Serial Digital Alarm Communications Transmitter (SDACT) mounts into 2975-91xx Back Boxes. • The 4100-6052 Event Reporting Digital Alarm Communications Transmitter (Event Reporting DACT) mounts into 2975-91xx Back Boxes.
  • Page 5 Introduction to the DACTs, Continued Illustration Figure 1 is an illustration of the DACT. All DACTs discussed in this publication are identical in appearance. SCREW TERMINALS TO RJ-31X JACK (ONE JACK PER 4 TERMINALS) DEVICE ADDRESS SWITCH (SW4) PANEL TROUBLE LED (LED3) COMM TROUBLE LED (LED2)
  • Page 6 Introduction to the DACTs, Continued LEDs Refer to Table 1 for DACT LED indicators. Table 1. LED Indications Possible States Not Illuminated. The system is not receiving DC power, or the power-up self-test failed. Power (LED 1) On Steady. The DACT is receiving DC power and is operational.

  • Page 7: Wiring Guidelines

    Conductors must test free of all grounds. • Wiring to IO terminals must not be run with AC wiring. • Power must come from a Simplex-approved power supply. • All wiring must be done using copper conductors only, unless noted otherwise. •...

  • Page 8: Non-Power Limited Wiring

    Wiring Guidelines, Continued Power-Limited Make sure these guidelines are accounted for before wiring for power-limited systems: Guidelines • Non-power limited field wiring (AC power, batteries, City connection) must be installed and routed in the shaded areas shown in Figure 2. •...
  • Page 9 Wiring Guidelines, Continued Power-Limited • Auxiliary power only: In order to connect a circuit using power-limited wiring, the devices Guidelines being powered must all be addressable, or a UL Listed EOL relay must be used to supervise (continued) the circuit. Refer to Figure 3 for wiring directions for the EOL relay. TO AUX POWER Note: The 2098-9739 Relay is...

  • Page 10: Step 1. Connecting To The Phone Lines

    The connection to the RJ-31X jacks must be made via the modular jack in installations where the 2080-9046/9047 DACT will share the telephone line with premises phones or other equipment. Use two Simplex Harness to the harnesses for this connection  either 2080-9046 (7 feet) or 2080-9047 (14 feet).
  • Page 11 Step 1. Connecting to the Phone Lines, Continued Connecting the 2080-9046/9047 Harness to the Incoming Grey TIPH DACT and Telephone Line Direct RJ-31X Jacks Connect Cord Green (continued) RING Blue RINGH RJ-31X BL O BK R G Y BN S Two shorting bars complete the Testing: (direct connect cord connection of premises phones to...
  • Page 12 Step 2. Configuring the DACT Overview Configuring the DACT consists of • setting the correct communication mode • specifying whether the DACT is in Test mode • specifying whether the DACT should be ready to download new programming data • setting the device address This section covers all of these settings.
  • Page 13 Step 2. Configuring the DACT, Continued Setting the Address (continued) Table 2. DACT Card Addresses Address SW 4-2 SW 4-3 SW 4-4 SW 4-5 SW 4-6 SW 4-7 SW 4-8 Address SW 4-2 SW 4-3 SW 4-4 SW 4-5 SW 4-6 SW 4-7 SW 4-8 firealarmresources.com...
  • Page 14 Step 3. Data and Power Wiring Guidelines Review the following guidelines before wiring P1 and P4 of the DACT. • If U.T. motherboard 565-274 or 565-213 is wired to the DACT, jumper P4 on the motherboard must be at position 13 when the DACT is wired to it. •...
  • Page 15 Step 4. Mounting Overview The DACT assembly can be installed into a 2975-91xx Back Box (4100) or a 2975-94xx Back Box (4100U). This section describes how to mount the DACT into both types of bays. Installing the Use the instructions and figure below to mount a DACT bracket into a 2975-91xx 4100 Back Box. Assembly into The directions are the same regardless of whether you’re installing the DACT into a CPU bay or 2975-91xx Bays...
  • Page 16 Step 4. Mounting, Continued Installing Use the following directions to mount the DACT into a 4100-94xx Back Box (4100U). The Motherboards into following directions cover mounting for a master controller bay and an expansion bay. 2975-94xx Bays (If applicable) Disconnect one of the two battery terminals, and then remove AC power at the power source.
  • Page 17 Step 5. Testing The TEST Switch When the DACT is connected to the system, its operations should be tested with the manual TEST (SW1) switch (SW1). The manual test ensures that: • the phone line is working • the DACT has been programmed with a correct phone number •...

  • Page 18: Compatibility Table

    Compatibility Table Overview Refer to Table 5, below, for compatibility information. Table 5. Compatibility Information Osborne/ ADEMCO Silent Comm. RADIONICS SUR-GARD Hoffman Knight CP220FB Format 6500 MLR2-DG Quickalert (Notes 2, 6) 9000 (Notes 5, 6) Model II 3/1 Standard 1800/2300 Hz (Note 3) (Note 1) 3/1 Standard...
