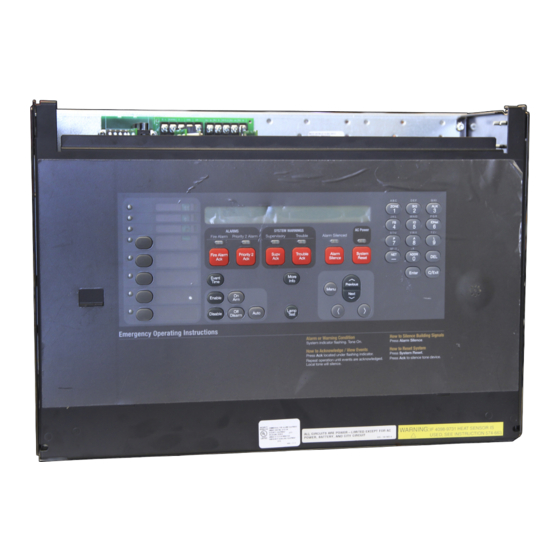

Simplex 4100 Series Installation Instructions Manual

Simplex 4100 Series Installation Instructions Manual

Esda interface cards
Hide thumbs Also See for 4100 Series:

Advertisement

Quick Links

Cautions, warnings, and regulatory information
READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this installation manual. These instructions must be followed to avoid damage to
this product and associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents
of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex
product supplier.
ELECTRICAL HAZARD Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be
performed by a representative or an authorized agent of your local Simplex product supplier.
STATIC HAZARD Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
FCC RULES AND REGULATIONS – PART 15. This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Introduction
This publication describes the installation procedure for the 4100-0154/4120-0154 and 4100-6048 VESDA Interface modules. This document covers
the following topics:
• Configuring, wiring, and installing a VESDA RS-232 Interface card in a 4100/4100U/ 4100ES FACP.
• Adding supervisory wiring to a VESDA power supply. This wiring is only required for VESDA power supplies, and is not required if VESDA
detectors are powered by 4100 power supplies.
Related documentation
• VESDA Installation Sheet: This document ships with the detector, and gives basic instructions on installing, wiring, and powering up the detector.
This is also available from the Xtralis Extranet site.
• VESDA Product Guide: This document is available from the Xtralis Extranet site, and gives a more detailed guide on installation, wiring, powering,
and maintaining the detector.
• VESDA LCD Programmer Product Guide: This document is available from the Xtralis Extranet, and documents how to program using the LCD
Programmer. The methods described are also used with the high level interface (HLI)
• VESDA Intelligent Interface, Operating, and Programming Manual,
• Field Wiring Diagram for 4100 Power Limited (841-731) or Field Wiring Diagram for Non Power Limited (841-995)
• 4100ES Fire Alarm System Installation Guide (574-848)
4100/4120-Series VESDA Interface Cards Installation Instructions
574-050 Rev. N
*0574050N*

Advertisement

Table of Contents
loading

Summary of Contents for Simplex 4100 Series

  • Page 1 DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex product supplier.
  • Page 2: Setting Jumpers

    4100/4120-Series VESDA Interface Cards Installation Instructions Setting jumpers Verifying jumper settings All jumpers on the VESDA RS-232 interface daughter card are factory preset and do not require modification. If necessary, use this section to verify that the jumpers are in the correct positions. See Table 1 and Figure 1. Table 1: VESDA default jumper settings Remove Jumper In the table above, 2-3 means you should place the jumper on pins 2 and 3, whereas a designation of 1-2 means you should place the jumper on pins...
  • Page 3: Setting Switches

    4100/4120-Series VESDA Interface Cards Installation Instructions Setting switches Switch SW1 on the VESDA RS-232 interface daughter card is a bank of eight dip switches. From left to right (Figure 2) these switches are designated as SW1-1 through SW1-8. The function of these switches is as follows: •...
  • Page 4 4100/4120-Series VESDA Interface Cards Installation Instructions Figure 3: 4100 Daughter card addresses page 4 574-050 Rev. N...
  • Page 5 4100/4120-Series VESDA Interface Cards Installation Instructions Installing the Motherboard into 2975-91xx Back Boxes (4100) The VESDA motherboard can be mounted to either 4100 Back Boxes (PID series 2975-91xx) or 4100U/4100ES Back Boxes (PID series 2975-94xx). • The 4100-0154/4120-0154 is used for systems with 4100 Back Boxes. •...
  • Page 6 4100/4120-Series VESDA Interface Cards Installation Instructions Installing into a 2975-91xx Expansion Bay Review the following guidelines before mounting the motherboard into a 2975-91xx Expansion Bay. • If a power supply is installed in the bay, it must be installed on the far right of the bay and any relay modules must be installed in the slots immediately to its left.
  • Page 7 4100/4120-Series VESDA Interface Cards Installation Instructions Connecting the 733-525 Harness If you need to connect a 733-525 Harness to a motherboard, refer to Figure 5 and follow these steps. Make sure to route the power and communication wiring on the left side of the bay. Connect one end of the harness to a motherboard in an adjacent bay.
  • Page 8 4100/4120-Series VESDA Interface Cards Installation Instructions Installing the Motherboards in 2975-94xx Back Boxes (4100U/4100ES) The VESDA motherboard can be mounted to either 4100 Back Boxes (PID series 2975-91xx) or 4100U/4100ES Back Boxes (PID series 2975-94xx). • The 4100-0154 4120-0154 is used for systems with 4100 Back Boxes. •...
  • Page 9 4100/4120-Series VESDA Interface Cards Installation Instructions Figure 8: Installing the motherboard in a 4100U/4100ES expansion bay Use the following procedure when installing motherboards in an expansion bay. Start with the second slot from the left and fill to the right. Orient the motherboard with the connector labeled J1 on the right and the header labeled P1 on the left Attach four metal threaded standoffs and lockwashers into the screw holes on the chassis.
  • Page 10 4100/4120-Series VESDA Interface Cards Installation Instructions Connecting the 733-525 Harness If you need to connect a 733-525 Harness to a motherboard, refer to Figure 10 and follow these steps. Make sure to route the power and communication wiring on the left side of the bay. Connect one end of the harness to a motherboard in an adjacent bay.
  • Page 11 4100/4120-Series VESDA Interface Cards Installation Instructions Figure 10: Power and Communication Wiring for Motherboard (4100U/4100ES) page 11 574-050 Rev. N...
  • Page 12: Installing The Daughter Card

    4100/4120-Series VESDA Interface Cards Installation Instructions Installing the Daughter Card The daughter card inserts into the connector located in the center of the motherboard. The connector is keyed so that the daughter card fits only one way. Before installing the card, examine the slot in the motherboard and the fingers on the daughter card and note where the key is located. Note: The Figure 11 is a general-purpose illustration that applies to all daughter cards.
  • Page 13: General Guidelines

    4100/4120-Series VESDA Interface Cards Installation Instructions Wiring General Guidelines • All wires must be 18 AWG, minimum, twisted/shielded pair. • The Maximum wiring distance is: 18 AWG: 150 ft. 16 AWG: 250 ft 14 AWG: 400 ft. 12 AWG: 625 ft. •...
  • Page 14 4100/4120-Series VESDA Interface Cards Installation Instructions Connecting the 733-571 Harness Wire the 733-571 Harness as shown in Figure 14. Connect the wires to the terminals located at the top of the motherboard. Figure 13: VESDA wiring page 14 574-050 Rev. N...
  • Page 15 4100/4120-Series VESDA Interface Cards Installation Instructions Figure 14: VESDA Wiring page 15 574-050 Rev. N...
  • Page 16 Adding a Power Supervision Circuit for VESDA Power Supplies Overview Power for the VESDA detectors must be from either a VESDA-supplied, UL-Listed power supply, or an Simplex 4100 supply. The nominal voltage is 24Vdc and the maximum power is 20W.
  • Page 17: Alarm Levels

    4100/4120-Series VESDA Interface Cards Installation Instructions Programming Up to 30 VESDA devices can be programmed per VESDA Interface Card. Each VESDA device takes up four slots in the Programmer. Four slots are reserved for each VESDA unit because the Laser Scanner can have up to 4 channels ( 4 pipes, one for each channel). Mapping Table 2 explains how to map various VESDA devices into the devices shown in the ES Panel Programmer.
  • Page 18 © 2020 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. Additional listings may be applicable, contact your local Simplex® product supplier for the latest status. Listings and approvals under Simplex Time Recorder Co. Simplex, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm Code are registered trademarks of the National Fire Protection Association (NFPA).
