Cautions and Warnings
DO NOT INSTALL ANY SIMPLEX PRODUCT THAT APPEARS DAMAGED. Upon unpacking your Simplex product,
inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and
notify Simplex.
ELECTRICAL HAZARD - Disconnect electrical power when making any internal adjustments or repairs.
Servicing should be performed by qualified Simplex Representatives.
STATIC HAZARD - Static electricity can damage components. Therefore, handle as follows:
1.
Ground yourself before opening or installing components.
2. Keep uninstalled component wrapped in anti-static material at all times (use 553-484 Static Control Kit).
RADIO FREQUENCY ENERGY - This equipment generates, uses, and can radiate radio frequency energy and
if not installed and used in accordance with the instruction manual, may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class A computing device pursuant
to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such
interference when operated in a commercial environment. Operation of this equipment in a residential area may
cause interference in which case the user at his own expense will be required to take whatever measures may be
required to correct the interference.

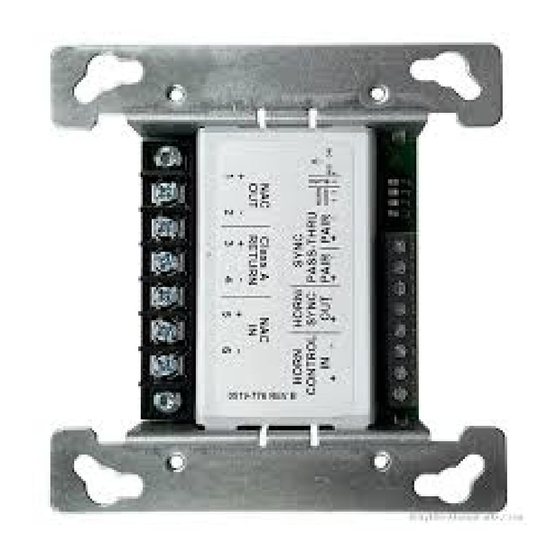

4905-9938 SmartSync
The SmartSync Control Module (SCM) is designed to allow TrueAlert
to be put on the same Notification Appliance Circuit (NAC). This allows the silencing of the Horns without deactivation of
the Strobes. The SCM connects to and derives power from a reverse polarity Notification Appliance Circuit (NAC). It
operates the visible appliances when the NAC is in the forward polarity (alarm state), and uses energy from this circuit to
power the attached TrueAlert Non-Addressable (or other) notification appliances. When the NAC is in the reverse polarity, or
supervision state, the SCM is off, and connects the NAC to the TrueAlert wiring for traditional appliance supervision. The
SCM uses a 2nd circuit from the panel to control operation of audible appliances connected to the TrueAlert SCM output. The
TrueAlert SCM also supports Class A wiring configurations, and synchronization across multiple TrueAlert Non-Addressable
NACs.
Notes:
1. The SCM is also compatible with Simplex old style Strobes,
Speaker/Visible, and Horn/Visible when switched for
"Synchronous" operation.
2. The SCM is compatible with Simplex old style Audible/Visible
appliances, but only the strobe circuit if switched for
"Synchronous" operation.
3. The SCM is not compatible with addressable TrueAlert
appliances.
 2000 Simplex Time Recorder Co., Westminster, MA 01441-0001 USA
All specifications and other information shown were current as of publication, and are subject to change without notice.
TrueAlert
and SmartSync
are trademarks of Simplex Time Recorder Company.
4905-9938 SmartSync
Control Module Operation
Installation Instructions
Non-Addressable Horns, Strobes, A/V, and S/V units
HORN
HORN
SYNC
CONTROL
SYNC
PASS - THRU
IN
OUT
PAIR PAIR
+ -
+ -
+ -
TB2

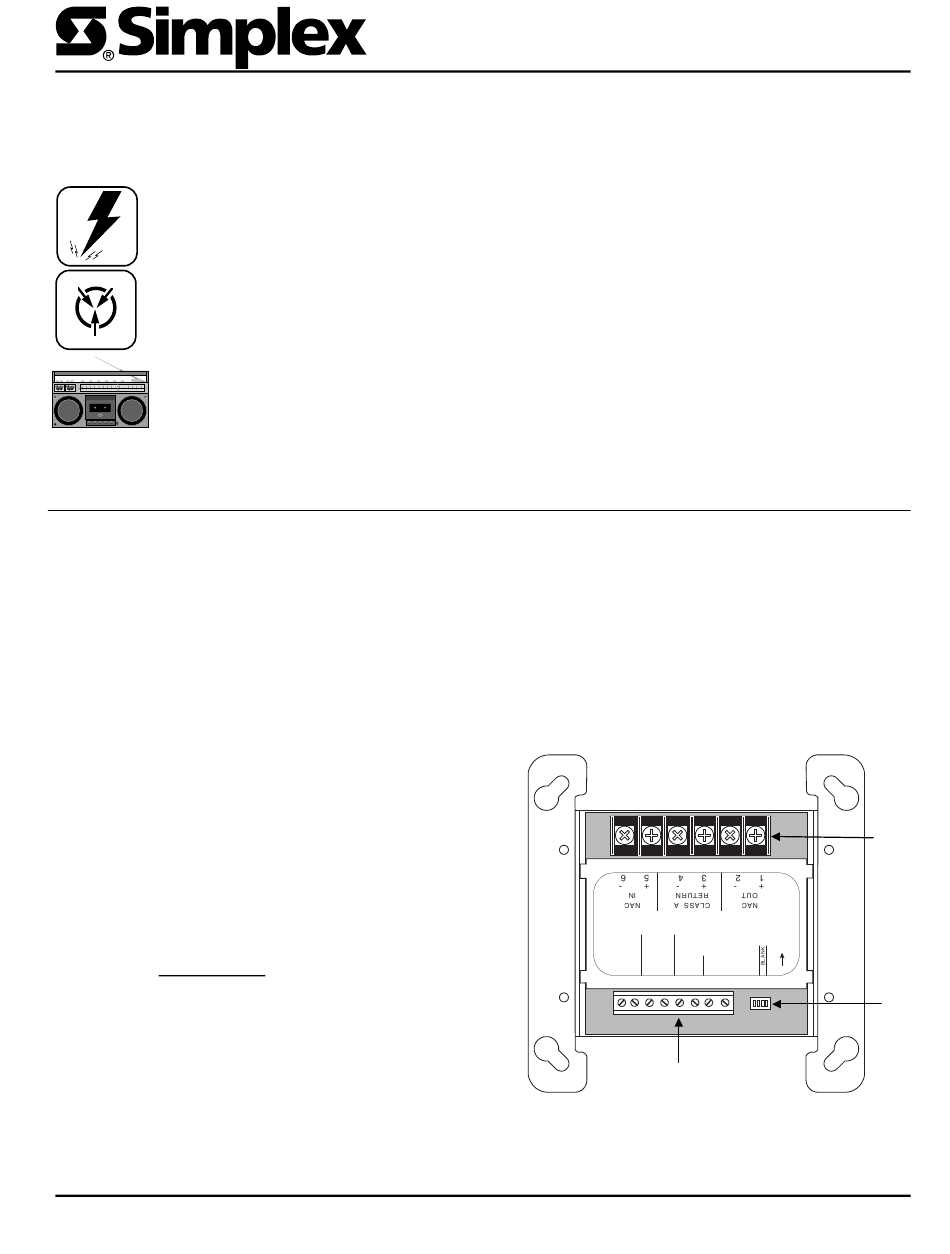

Figure 1. SmartSync Control Module
Control Module
TB1
HORN
CODE
M/S
ON
+ -
1
2
3
4
574-719
Rev. C
SW1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmartSync 4905-9938 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simplex SmartSync 4905-9938

  • Page 1 Installation Instructions Cautions and Warnings DO NOT INSTALL ANY SIMPLEX PRODUCT THAT APPEARS DAMAGED. Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify Simplex.
  • Page 2 SCM Operation The SCM requires two Simplex Fire Alarm Control Panel (FACP) notification appliance circuits to control SmartSync Horns separately from strobes on a TrueAlert Non-Addressable NAC. The SCM uses these circuits to power attached Notification Appliances, and control Horn and Strobe operation. A once-a-second pulse on the SmartSync NAC output synchronizes the flashing of Strobes.
  • Page 3: Scm Specifications

    SCM DIP Switch Settings Configure the TrueAlert SCM operation by setting the 4-position DIP Switch SW1 (see Table 1) as follows: Table 1. TrueAlert SmartSync Control Module DIP Switch Settings Audible Appliances Multi-Sync DIP Switch SW1 “ON” Sound Code Master Code Output Position 1 Temporal...
  • Page 4 Maintain correct polarity on terminal connections. Maximum 8-SCMs connect together for multiple synchronized operation. If last appliance on circuit, connect EOLR. Consult Simplex FACP Field Wiring Diagrams for correct EOLR. Class A outputs have internal 10K EOLR. These appliances were only tested to the operating voltage limits of 16VDC and 33VDC. Do not operate these appliances outside these limits: doing so may cause appliance to fail to operate, and/or cause permanent damage to this equipment.
  • Page 5 Maintain correct polarity on terminal connections. Maximum 8-SCMs connected together for multiple synchronized operation. If last appliance on circuit, connect EOLR resistor. Consult Simplex FACP Field Wiring Diagrams for correct EOLR. Class A outputs have internal 10K EOLR. These appliances were only tested to the operating voltage limits of 16VDC and 33VDC. Do not operate these appliances outside these limits: doing so may cause appliance to fail to operate, and/or cause permanent damage to this equipment.
  • Page 6 Mounting the TrueAlert SCM The TrueAlert SCM assembly mounts to the 4-inch square electrical box via 2 screws. Box depth is dependent on the number and size of conductors used in a particular application; the range extends from a minimum 2 1/8” deep box to a 2 1/8” deep box with a minimum 1 1/4”...
