Chapter 3 – Using the Web Management Software

Serial-Port, Serial Port Settings Parameters

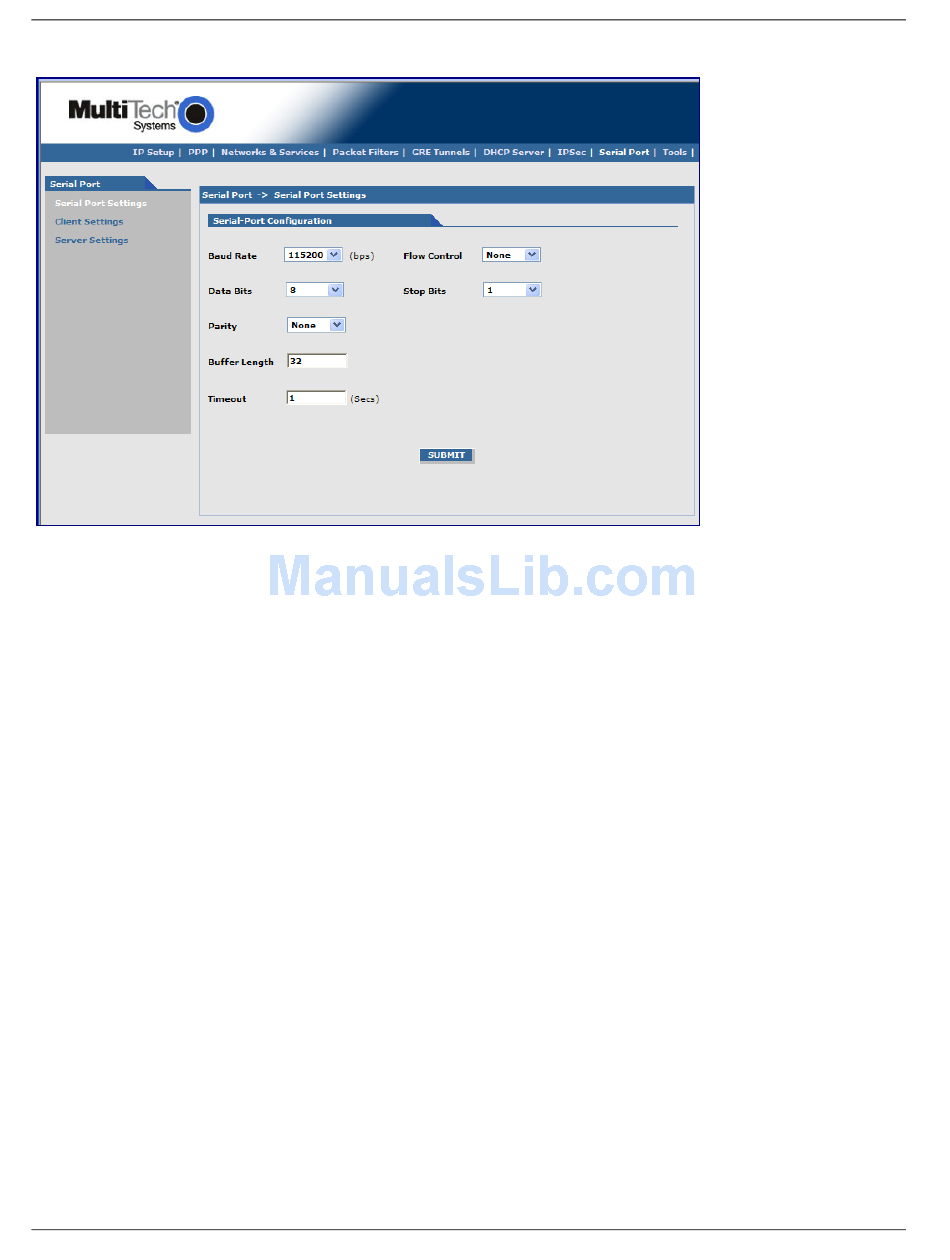

Serial-Port Configuration Group

Serial-Port Configuration lets you configure the serial terminal connected to the RS-232 connector DE9 on the
back of the unit.
Baud Rate:
Sets the baud-rate at which the serial terminal is communicating. The default is 115200.
Flow Control:
Sets the flow control for the serial port. Options are None or RTS-CTS. The default is None.
Data Bits:
Sets the data bits for the serial port. Data bit selection is 7 or 8. The default is 8.
Stop Bits:
Sets the stop bits for the serial port. Options are 1 or 2. The default is 1.
Parity:
Sets the parity for the serial port. Options are None, Even, or Odd. The default is None.
Buffer Length:
Sets the length up to which the data from the serial device is buffered before IP transmission. The
default length is 32-characters.
Timeout:
Sets the timeout value for the serial terminal of how long it waits before IP transmission. The default is
1-second.
Submit Button:
Click Submit to save these settings.
Multi-Tech Systems, Inc. MultiModem rCell User Guide
69
