Optional – Attaching the Router to a Flat Surface
Before you mount your router to a permanent surface, verify signal strength. For more information, refer to Verify
Signal Strength in this chapter.
The router can be panel mounted with screws spaced according to the measurement shown.
Note:
Use either #6 or #8 pan head screws for all four mount locations.

Setting TCP/IP Address

This section describes how to configure a TCP/IP address so the computer can communicate with the router.

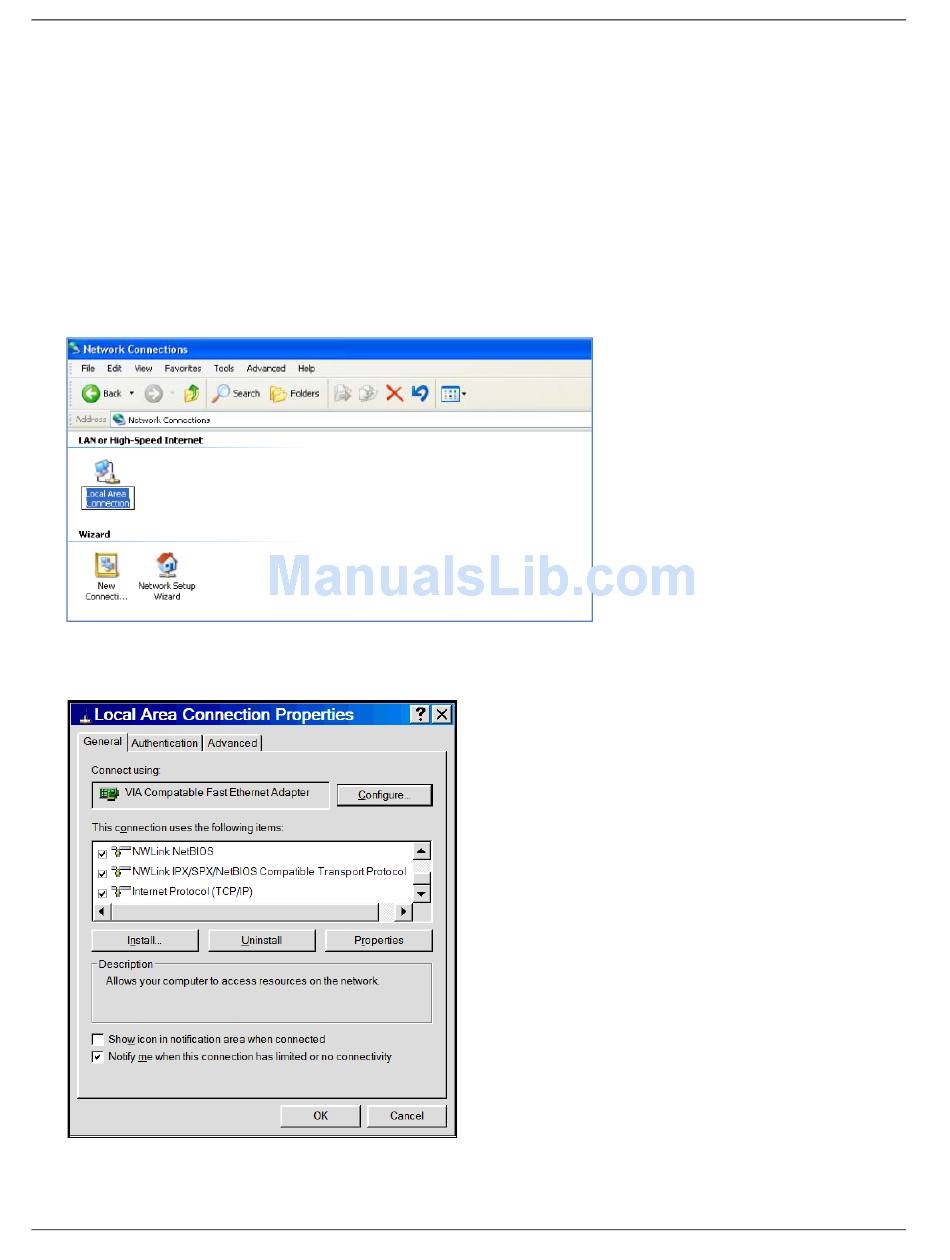

From the Start menu, select Control Panel. In the window that opens, double-click Network Connections. The
1.
Network Connections window opens.
Right-click Local Area Connection. From the menu that appears, select Properties.
2.
The Local Area Connection Properties window opens.
Select Internet Protocol [TCP/IP].
3.
Click Properties. The Internet Protocol (TCP/IP) Properties window opens.
4.
Multi-Tech Systems, Inc. MultiModem rCell User Guide
Chapter 2 – Installing the Router
21
