For information about obtaining service or assistance, see "Getting help and
technical assistance," on page 61.

CRU parts listing

The Ethernet modules, hard disk drive modules, fan modules, and power supply
modules are CRU parts. Figure 19 shows the CRU parts on the front and rear of
the Type 7198 appliance.

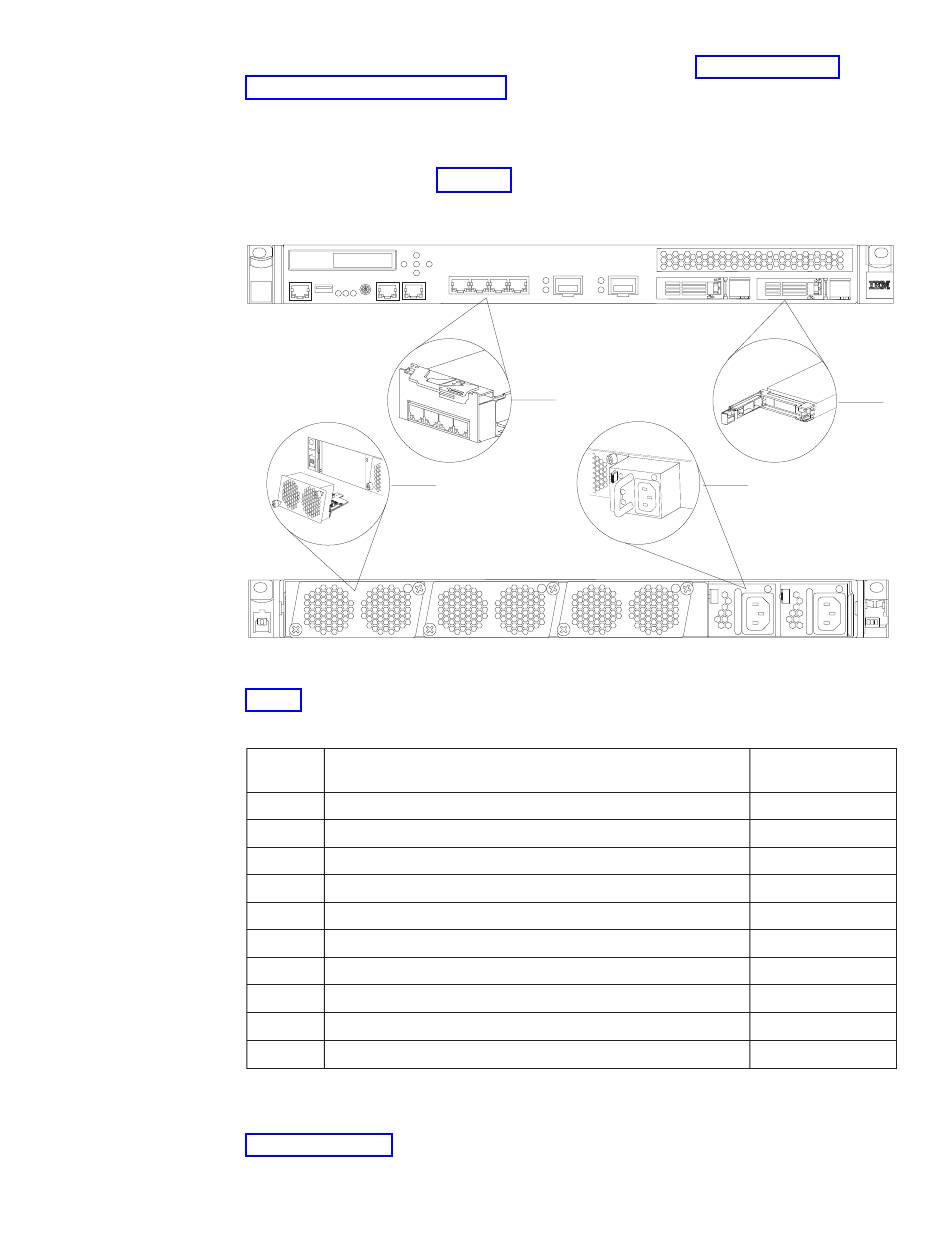

Figure 19. 7198 CRU parts
Table 6 lists the part numbers and their corresponding descriptions.
Table 6. Part numbers for the Type 7198 appliance
Index Description
1 Ethernet module four port 1 gigabit connector
1 Ethernet module two port 10 gigabit connector
2 Hard disk drive module
3 Fan module
4 Power supply module, 650 watts
DE-9 serial console cable
USB serial console cable
SFP+ SR transceiver
SFP+ LR transceiver
Rack-mounting kit

FRU parts listing

Table 7 on page 44 lists the FRU parts that are in Type 7198 appliances. FRU parts
must be replaced by a trained service technician.
1
3
Chapter 7. Removing or replacing the appliance or parts
2
4
Tier 1 CRU part
number
46N5530
46N5534
96Y0485
46N5529
46N5528
46N5656
97Y0519
46N5592
46N5593
60Y0328
