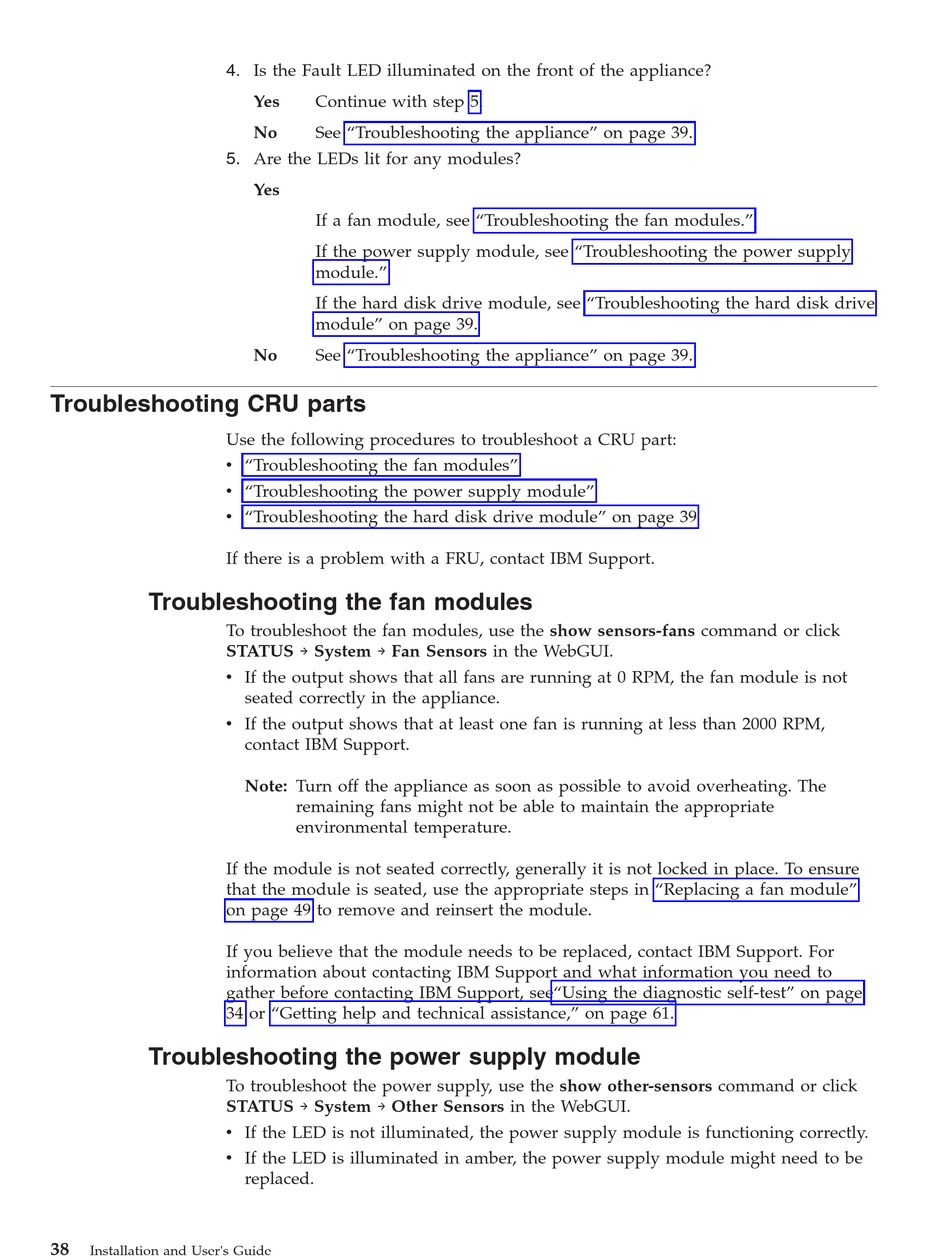

4. Is the Fault LED illuminated on the front of the appliance?
5. Are the LEDs lit for any modules?

Troubleshooting CRU parts

Use the following procedures to troubleshoot a CRU part:
v "Troubleshooting the fan modules"
v "Troubleshooting the power supply module"
v "Troubleshooting the hard disk drive module" on page 39
If there is a problem with a FRU, contact IBM Support.

Troubleshooting the fan modules

To troubleshoot the fan modules, use the show sensors-fans command or click
STATUS → System → Fan Sensors in the WebGUI.
v If the output shows that all fans are running at 0 RPM, the fan module is not
v If the output shows that at least one fan is running at less than 2000 RPM,
If the module is not seated correctly, generally it is not locked in place. To ensure
that the module is seated, use the appropriate steps in "Replacing a fan module"
on page 49 to remove and reinsert the module.
If you believe that the module needs to be replaced, contact IBM Support. For
information about contacting IBM Support and what information you need to
gather before contacting IBM Support, see"Using the diagnostic self-test" on page
34 or "Getting help and technical assistance," on page 61.

Troubleshooting the power supply module

To troubleshoot the power supply, use the show other-sensors command or click
STATUS → System → Other Sensors in the WebGUI.
v If the LED is not illuminated, the power supply module is functioning correctly.
v If the LED is illuminated in amber, the power supply module might need to be
38
Installation and User's Guide
Yes Continue with step 5.
No See "Troubleshooting the appliance" on page 39.
Yes
If a fan module, see "Troubleshooting the fan modules."
If the power supply module, see "Troubleshooting the power supply
module."
If the hard disk drive module, see "Troubleshooting the hard disk drive
module" on page 39.
No See "Troubleshooting the appliance" on page 39.
seated correctly in the appliance.
contact IBM Support.
Note: Turn off the appliance as soon as possible to avoid overheating. The
remaining fans might not be able to maintain the appropriate
environmental temperature.
replaced.
