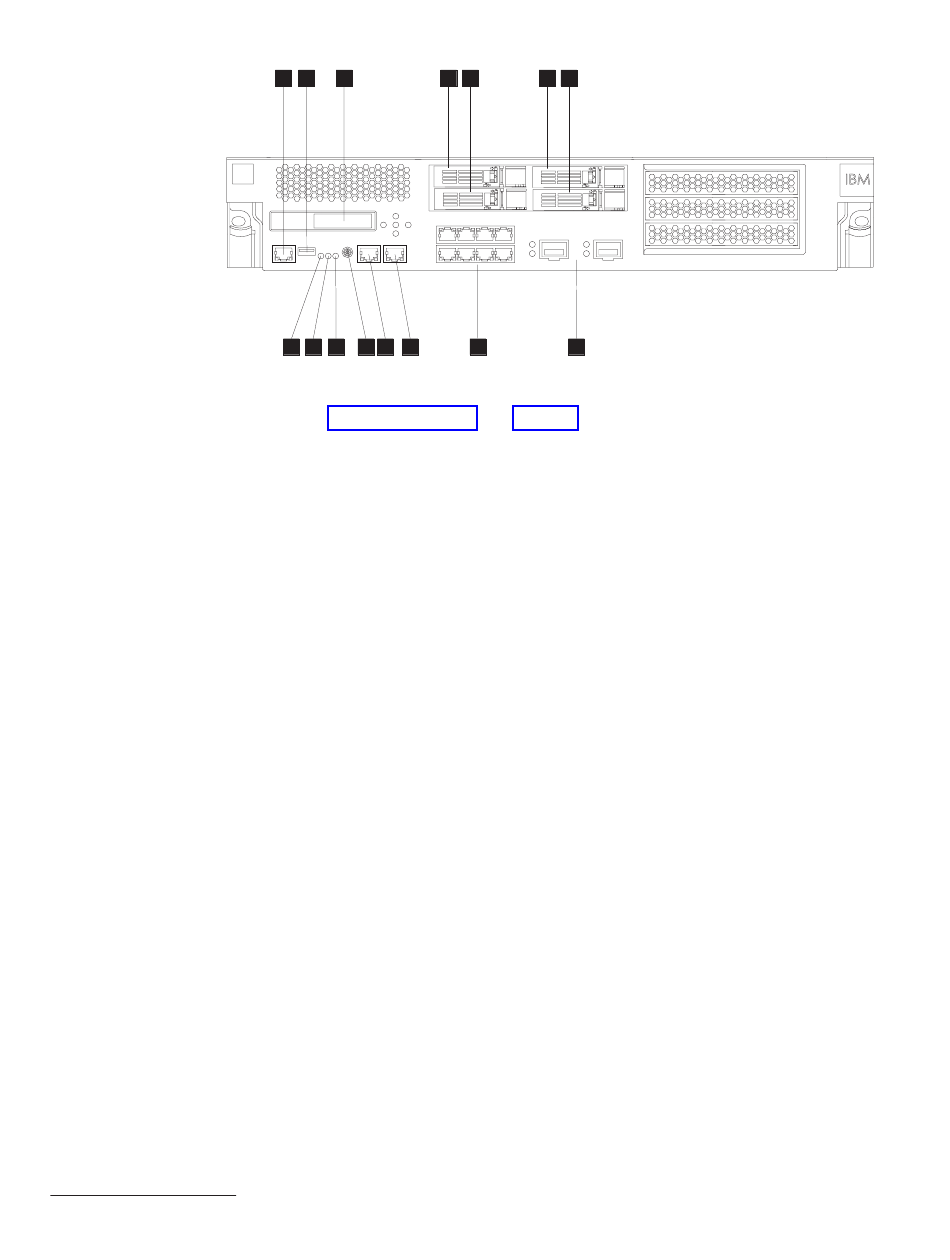

Figure 2. Type 7199 front view
The labels in Figure 1 on page 3 and Figure 2 correspond to the following
components on the front of the appliances:
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Console connector
The front panel has a console connector. The console connector is an 8-position
modular jack (ISO 8877, often called RJ45). For initial configuration, use the
supplied cable to connect from an ASCII terminal
from a PC that is running terminal emulation software to the appliance.
USB port
The front panel has a USB interface that conforms to USB 2.0 devices. This USB
connector is not enabled and therefore does not provide any connection.
1. A simple device that transmits (inputs) and receives (outputs) ASCII data.
4
Installation and User's Guide
A B C D E
H I K L M
J
Console connector
USB port
LCD module
Hard disk drive module 2
Hard disk drive module 0
Hard disk drive module 3
Hard disk drive module 1
Fault LED
Locate LED
Power LED
Power button
MGT0 Ethernet connector
MGT1 Ethernet connector
Left Ethernet modules
Right Ethernet modules
F G
N
O
1
to the appliance or to connect
