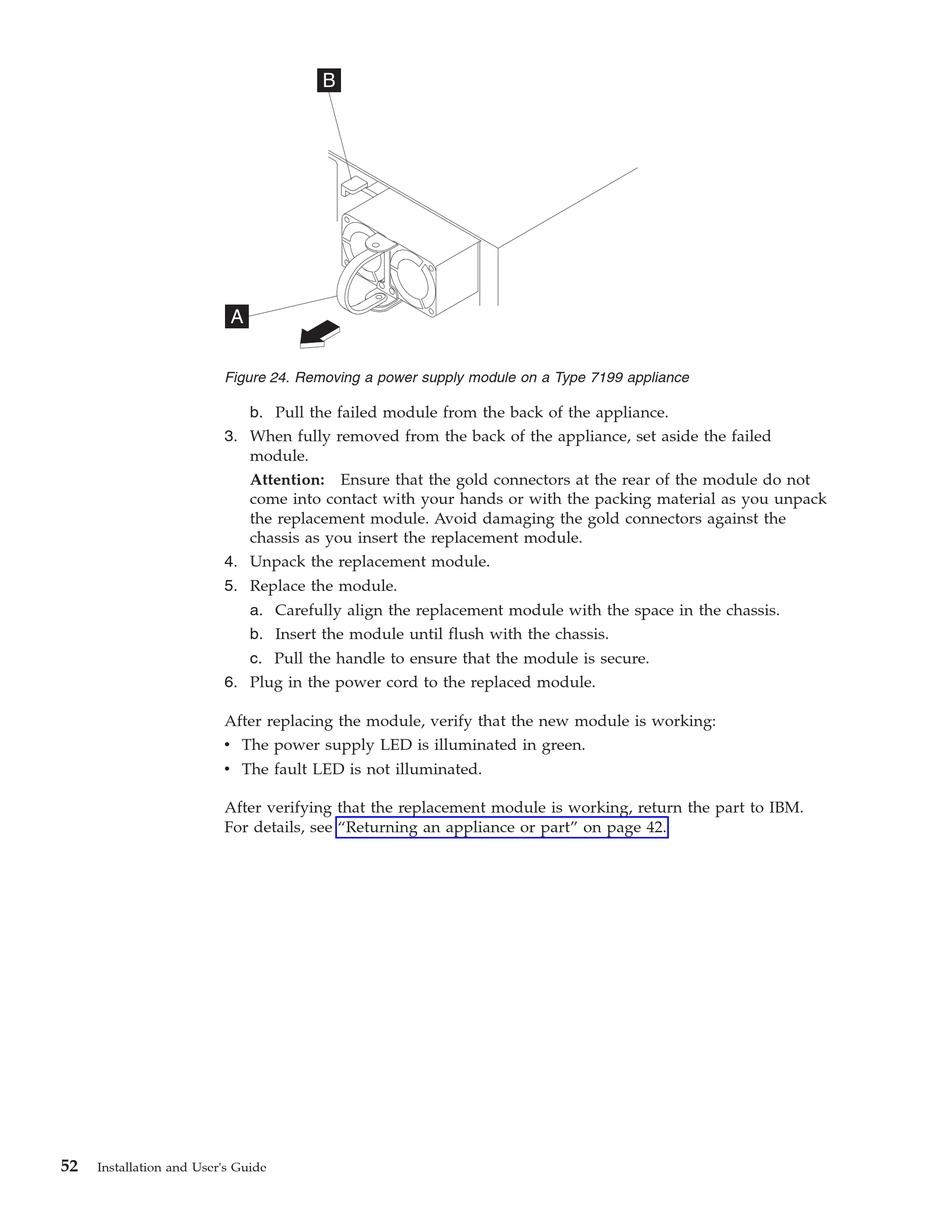

Figure 24. Removing a power supply module on a Type 7199 appliance
3. When fully removed from the back of the appliance, set aside the failed
4. Unpack the replacement module.
5. Replace the module.
6. Plug in the power cord to the replaced module.
After replacing the module, verify that the new module is working:
v The power supply LED is illuminated in green.
v The fault LED is not illuminated.
After verifying that the replacement module is working, return the part to IBM.
For details, see "Returning an appliance or part" on page 42.
52
Installation and User's Guide
B
A
b. Pull the failed module from the back of the appliance.
module.
Attention: Ensure that the gold connectors at the rear of the module do not
come into contact with your hands or with the packing material as you unpack
the replacement module. Avoid damaging the gold connectors against the
chassis as you insert the replacement module.
a. Carefully align the replacement module with the space in the chassis.
b. Insert the module until flush with the chassis.
c. Pull the handle to ensure that the module is secure.
