Package Information

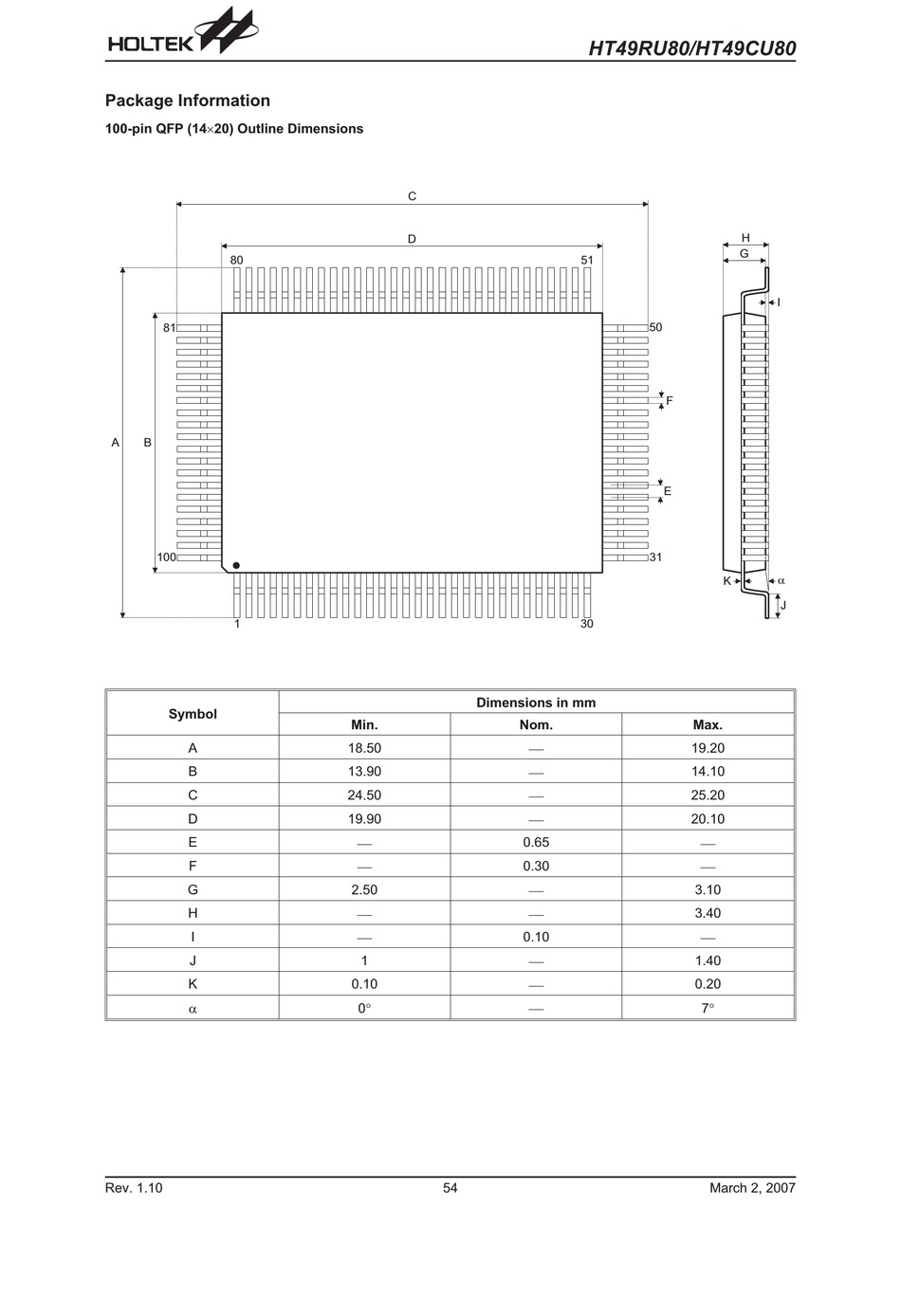

100-pin QFP (14´20) Outline Dimensions
Symbol
A
B
C
D
E
F
G
H
I
J
K
a
Rev. 1.10
Dimensions in mm
Min.
18.50
13.90
24.50
19.90
¾
¾
2.50
¾
¾
1
0.10
0°
54
HT49RU80/HT49CU80
Nom.
¾
¾
¾
¾
0.65
0.30
¾
¾
0.10
¾
¾
¾
a
Max.
19.20
14.10
25.20
20.10
¾
¾
3.10
3.40
¾
1.40
0.20
7°
March 2, 2007
