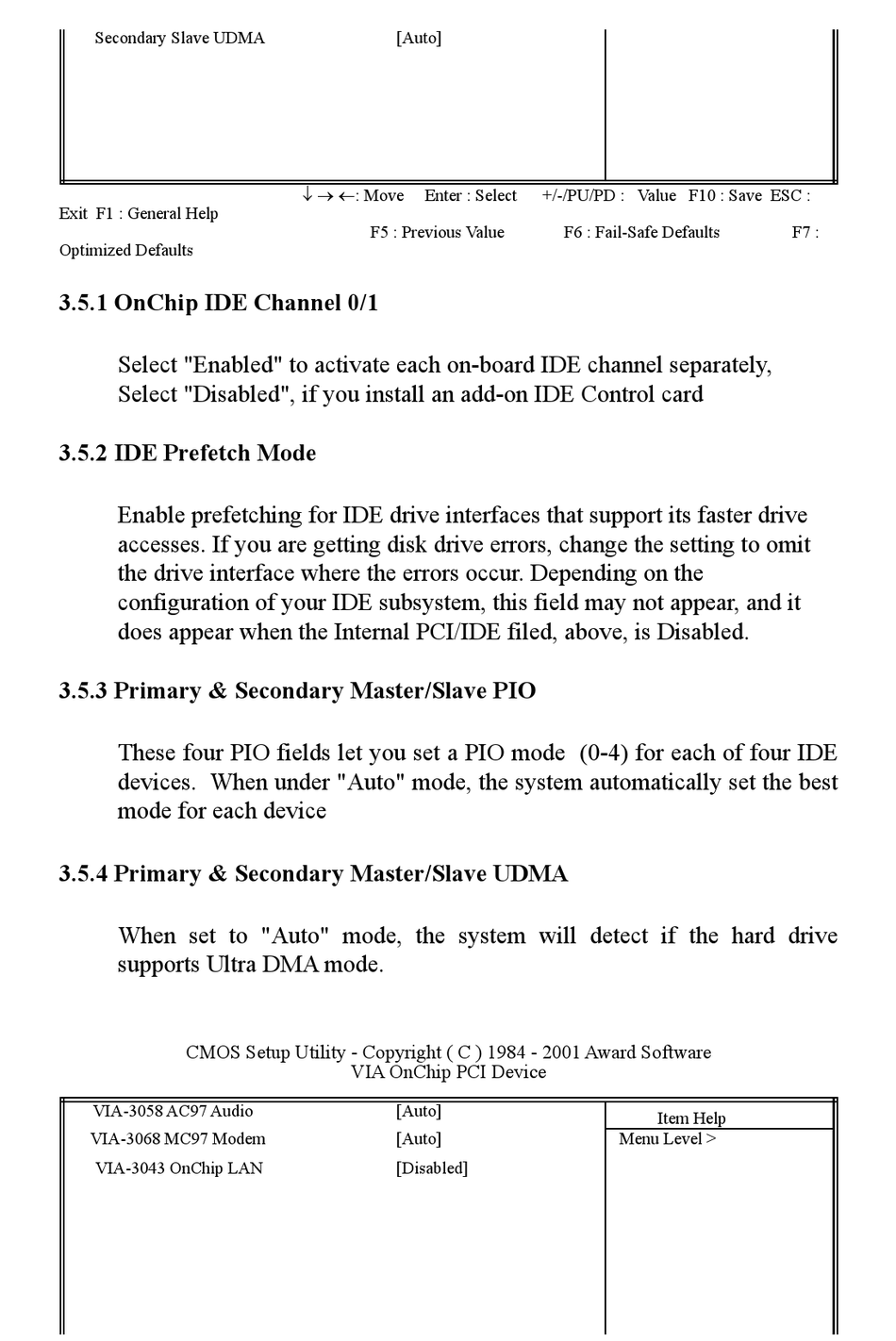

Taiwan Commate Computer Inc. PV-DDR User Manual page 30

Secondary Slave UDMA
Exit F1 : General Help
Optimized Defaults
3.5.1 OnChip IDE Channel 0/1
Select "Enabled" to activate each on-board IDE channel separately,
Select "Disabled", if you install an add-on IDE Control card
3.5.2 IDE Prefetch Mode
Enable prefetching for IDE drive interfaces that support its faster drive
accesses. If you are getting disk drive errors, change the setting to omit
the drive interface where the errors occur. Depending on the
configuration of your IDE subsystem, this field may not appear, and it
does appear when the Internal PCI/IDE filed, above, is Disabled.
3.5.3 Primary & Secondary Master/Slave PIO
These four PIO fields let you set a PIO mode (0-4) for each of four IDE
devices. When under "Auto" mode, the system automatically set the best
mode for each device
3.5.4 Primary & Secondary Master/Slave UDMA
When set to "Auto" mode, the system will detect if the hard drive
supports Ultra DMA mode.
CMOS Setup Utility - Copyright ( C ) 1984 - 2001 Award Software
VIA-3058 AC97 Audio
VIA-3068 MC97 Modem
VIA-3043 OnChip LAN
[Auto]
¯ ® ¬: Move
Enter : Select
F5 : Previous Value
VIA OnChip PCI Device
[Auto]
[Auto]
[Disabled]
+/-/PU/PD : Value F10 : Save ESC :
F6 : Fail-Safe Defaults
Item Help
Menu Level >
F7 :
