Taiwan Commate Computer Inc. PV-DDR User Manual page 17

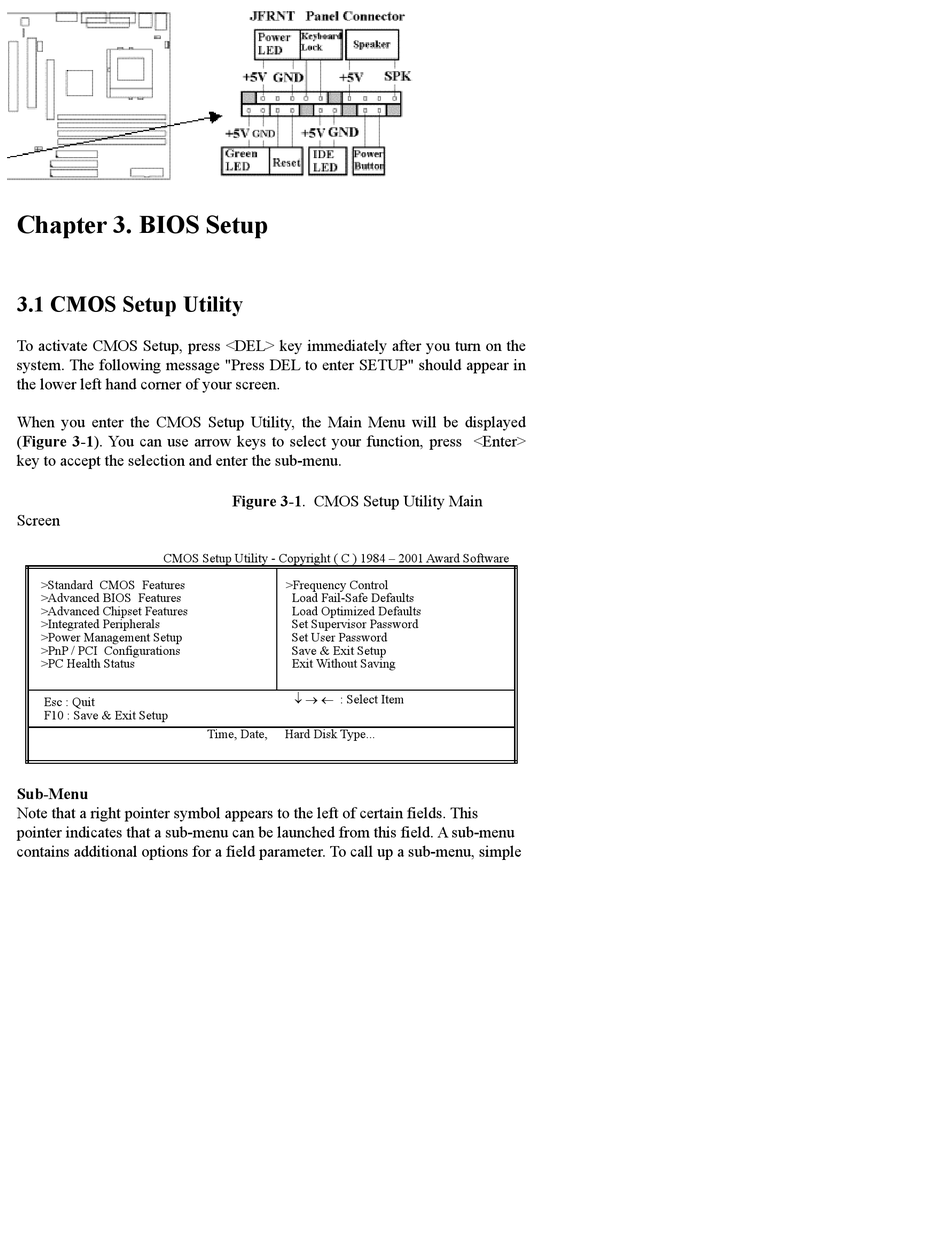

Chapter 3. BIOS Setup
3.1 CMOS Setup Utility
To activate CMOS Setup, press <DEL> key immediately after you turn on the
system. The following message "Press DEL to enter SETUP" should appear in
the lower left hand corner of your screen.
When you enter the CMOS Setup Utility, the Main Menu will be displayed
(Figure 3-1). You can use arrow keys to select your function, press <Enter>
key to accept the selection and enter the sub-menu.
Screen
CMOS Setup Utility - Copyright ( C ) 1984 – 2001 Award Software
>Standard CMOS Features
>Advanced BIOS Features
>Advanced Chipset Features
>Integrated Peripherals
>Power Management Setup
>PnP / PCI Configurations
>PC Health Status
Esc : Quit
F10 : Save & Exit Setup
Sub-Menu
Note that a right pointer symbol appears to the left of certain fields. This
pointer indicates that a sub-menu can be launched from this field. A sub-menu
contains additional options for a field parameter. To call up a sub-menu, simple
Figure 3-1. CMOS Setup Utility Main
>Frequency Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
¯ ® ¬ : Select Item
Time, Date, Hard Disk Type...
