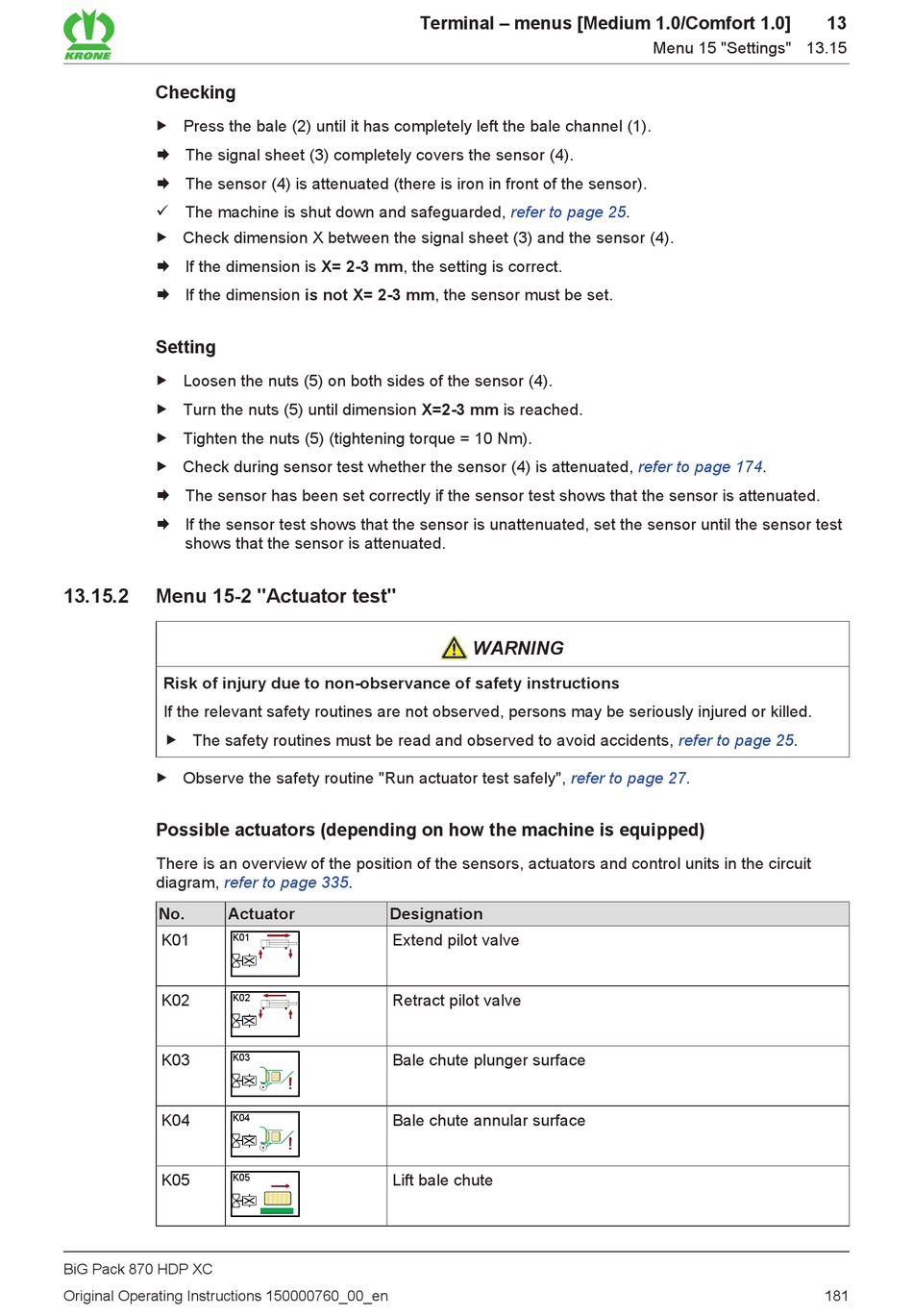

Checking
„ Press the bale (2) until it has completely left the bale channel (1).
Æ The signal sheet (3) completely covers the sensor (4).
Æ The sensor (4) is attenuated (there is iron in front of the sensor).
ü The machine is shut down and safeguarded,
„ Check dimension X between the signal sheet (3) and the sensor (4).
Æ If the dimension is X= 2-3 mm, the setting is correct.
Æ If the dimension is not X= 2-3 mm, the sensor must be set.
Setting
„ Loosen the nuts (5) on both sides of the sensor (4).
„ Turn the nuts (5) until dimension X=2-3 mm is reached.
„ Tighten the nuts (5) (tightening torque = 10 Nm).
„ Check during sensor test whether the sensor (4) is attenuated,
Æ The sensor has been set correctly if the sensor test shows that the sensor is attenuated.
Æ If the sensor test shows that the sensor is unattenuated, set the sensor until the sensor test
shows that the sensor is attenuated.
13.15.2

Menu 15-2 "Actuator test"

Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
„ The safety routines must be read and observed to avoid accidents,
„ Observe the safety routine "Run actuator test safely",
Possible actuators (depending on how the machine is equipped)
There is an overview of the position of the sensors, actuators and control units in the circuit
diagram, refer to
No. Actuator
K01 K01
K02 K02
K03 K03
K04
K04
K05 K05
BiG Pack 870 HDP XC
Original Operating Instructions 150000760_00_en
Terminal – menus [Medium 1.0/Comfort 1.0]
page 335.
Designation
Extend pilot valve
Retract pilot valve
Bale chute plunger surface
Bale chute annular surface
Lift bale chute
refer to page 25.
refer to
WARNING
refer to page 27.
Menu 15 "Settings" 13.15
page 174.
refer to page 25.
