DB-9 Serial Port
The DB-9 serial port allows the network administrator to configure and manage the
CPSMC13xx-100 chassis using the SNMP Command-Line Interface (CLI) at an
attached terminal or terminal emulator.

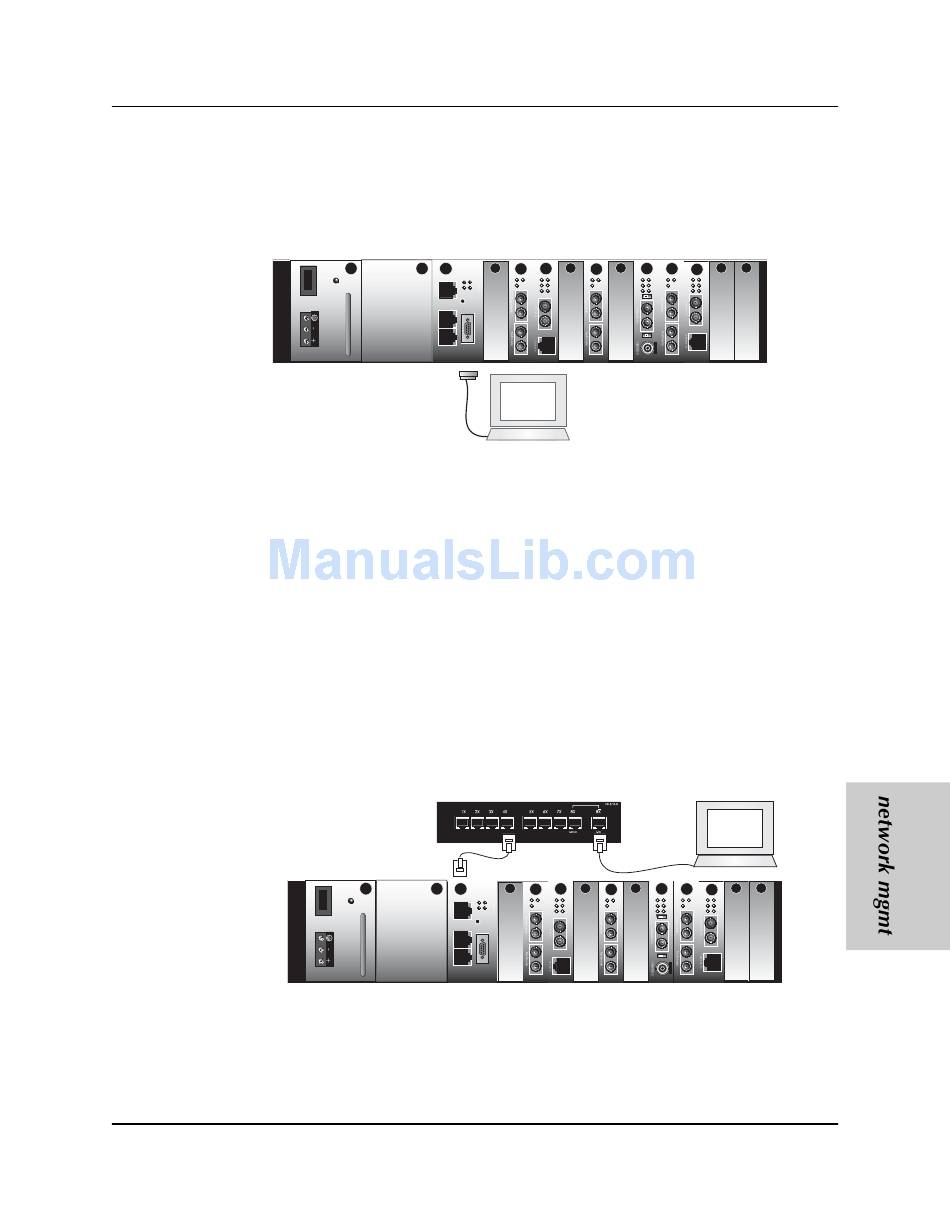

Use a null modem cable to attach a terminal to the DB-9 serial port on the
management module as shown.
RJ-45 Ethernet Port
The RJ-45 Ethernet port allows the network administrator to manage the
CPSMC13xx-100 chassis via a remote Network Management Station (NMS) in one
of two ways:
1. Using the Transition Networks FocalPoint™ graphical user interface.
2. Using a remote Telnet connection.
Use an RJ-45 network cable to attach a terminal (via a network hub or switch) to the
RJ-45 Ethernet port on the management module as shown.
NOTE: To manage the chassis via a remote NMS, both the RJ-45 Ethernet port and
the NMS must be connected to a network with Internet access.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
I
TX PWR
0
RX LNK
RESET
Network hub or switch
connected to the
RJ-45 Ethernet port.
I
TX PWR
0
RX LNK
RESET
CPSMC13xx-100 PointSystem ™ Chassis
PWR PWR PWR
PWR
LKS SPD PWR LKS LA LKS SPD
LNK
LKM FRX FLNK LKM RXF LKM FRX
CRX CLNK CRX
RXC COL TX
TX TX
Link Alert
E D TX
TX
RX RX RX
RX
TX
TX RX TX
0 50½
RX RX RX
CFMFF100
CFMFF100 CFETF110 CETCF100 CFMFF100
Attached terminal or terminal emulator
connected to the DB-9 serial port
via a null modem cable .
Remote Telnet connection
oR Remote NMS with
an SNMP application
PWR
PWR PWR
PWR
LKS SPD PWR LKS LA LKS
LNK
LKM FRX FLNK LKM RXF LKM
CRX CLNK RXC COL
TX TX TX
Link Alert
E D
TX
RX
RX RX
TX RX TX TX
0 50½
RX RX RX
CFMFF100 CFETF110 CFMFF100 CETCF100 CFMFF100
PWR
FLNK
CLNK
CFETF100
SPD PWR
FRX FLNK
CRX CLNK
TX
RX
CFETF100
