Warning: Do NOT connect the power supply module to the external power source before installing it
into the chassis. Failure to observe this caution could result in equipment damage and/or personal
injury or death.
3.5

Power Supply Module Maintenance

3.5.1

Installing the Power Supply Module

The AC and DC modules are installed in the same manner:

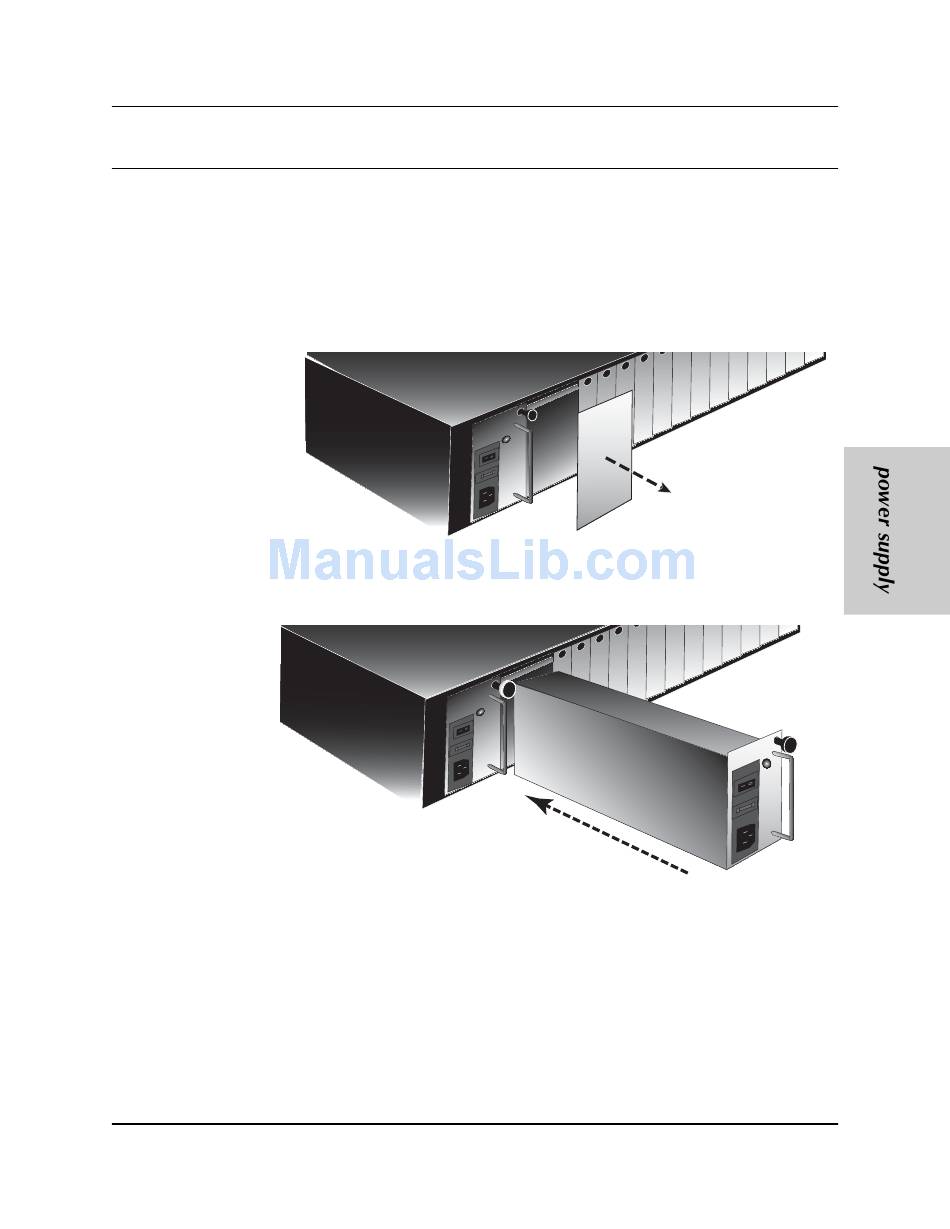

1. Remove the power supply module protective plate from the installation slot by
2. Carefully slide the power supply module into the installation slot, aligning the
3. Ensure that the power supply module is firmly seated inside the chassis. If the
4. Rotate the attached panel fastener screw clockwise to secure the power supply
5. Connect the power supply module to the external power source.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
removing and retaining the screw that secures the protective plate to the front
of the chassis.
power supply module with the installation guides.
power supply module does not fit flush against the frame, remove the module
and ensure that it is aligned with the installation guides before installing.
module to the chassis.
(AC: see page 13 / 48-VDC: see page 15 / 24-VDC: see page 17.)
CPSMC13xx-100 PointSystem ™ Chassis
