Warning: Do NOT connect the power supply module to the external power source before installing it
into the chassis. Failure to observe this caution could result in equipment damage and/or personal
injury or death.
3.5.2

Replacing the Power Supply Module

NOTE: Any of the power supply modules may be "hot swapped" provided the
module to be swapped has been disconnected from the external power source and
the On/Off switch has been set to "0".
The AC and DC modules are replaced in the same manner:
1. Set the On/Off switch on the power supply module to be replaced to "0".
2. Disconnect the power supply module to be replaced from the external power
2. Loosen the panel fastener screw that secures the power supply module to the
3. Slide the power supply module from the chassis.

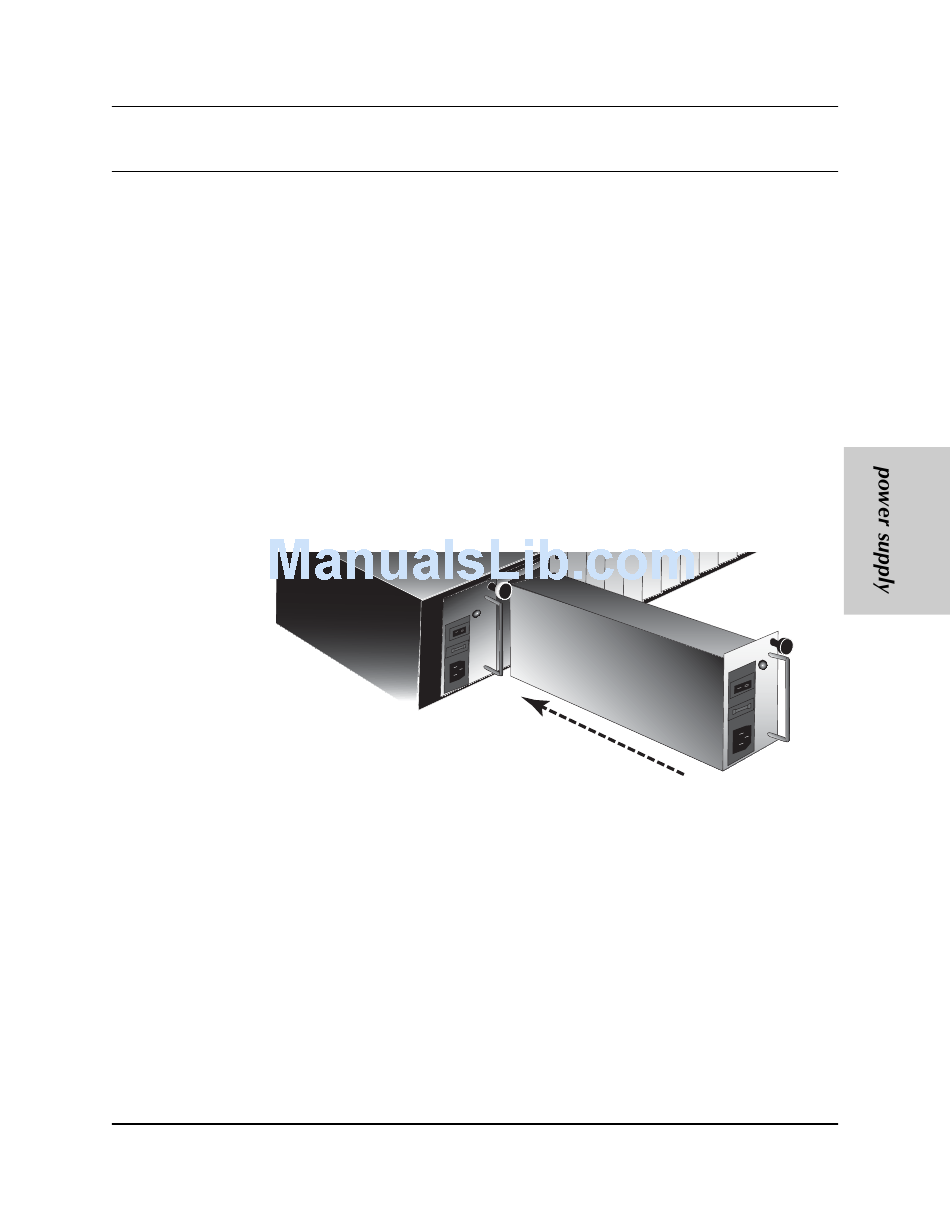

4. Carefully slide the replacement power supply module into the installation slot,
5. Ensure that the the power supply module is firmly seated against the back of the
6. Rotate the attached panel fastener screw clockwise to secure the power supply
7. Connect the power supply module to the external power source.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
source.
chassis.
aligning the power supply module with the installation guides.
chassis. If the power supply module does not fit flush against the frame, remove
the module and ensure that it is aligned with the installation guides before
installing.
module to the chassis.
(AC: see page 13 / 48-VDC: see page 15 / 24-VDC: see page 17.)
CPSMC13xx-100 PointSystem ™ Chassis
