Read and follow all warning notices & instructions marked on the product or included in the manual.
CAUTION: All installation and service must be performed by qualified service personnel.
CAUTION: Ensure that the external power source is NOT powered and that the On/Off switch is set
to "0" when connecting the 24-VDC power supply module. Failure to observe this caution could result
in damage to, and subsequent failure of, the power supply module.
Powering the 24-VDC Power Supply Module
•
•
To power the CPSMC1320-100 chassis through the CPSMP-140 24-VDC power
supply module:
1. Set the On/Off switch to "0".
2. Connect the +24-VDC terminal to the chassis external power connector marked
3. Connect the -24-VDC terminal to the chassis external power connector marked
4. Connect the ground terminal to the chassis external power connector marked
5. Set the On/Off switch to "I".
6. Verify that chassis is powered by observing the illuminated power LED.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
This product is intended to be used in a restricted access location. Proper
earthing (grounding) is required to ensure safe operation. Grounding terminals
are provided (section 4.1.3) for proper grounding of the device as per customer
installation requirements and local electrical codes. Prior to installation, use a
voltmeter/ohmmeter to check the wiring for the presence of earth ground.
A readily accessible disconnect device as part of the building installation shall
be incorporated into the fixed wiring. The disconnect device (a 24 VDC, 15 or
20A circuit breaker or switch) must be included in the ungrounded supply
conductor. Overcurrent protection must be a 24 VDC, 15 or 20A fuse or circuit
breaker.
"+". Turn the terminal screw clockwise to secure.
"-". Turn the terminal screw clockwise to secure.
"chassis ground". Turn the terminal screw clockwise to secure.
On/Off
Switch
0
0
I
I
GND
–

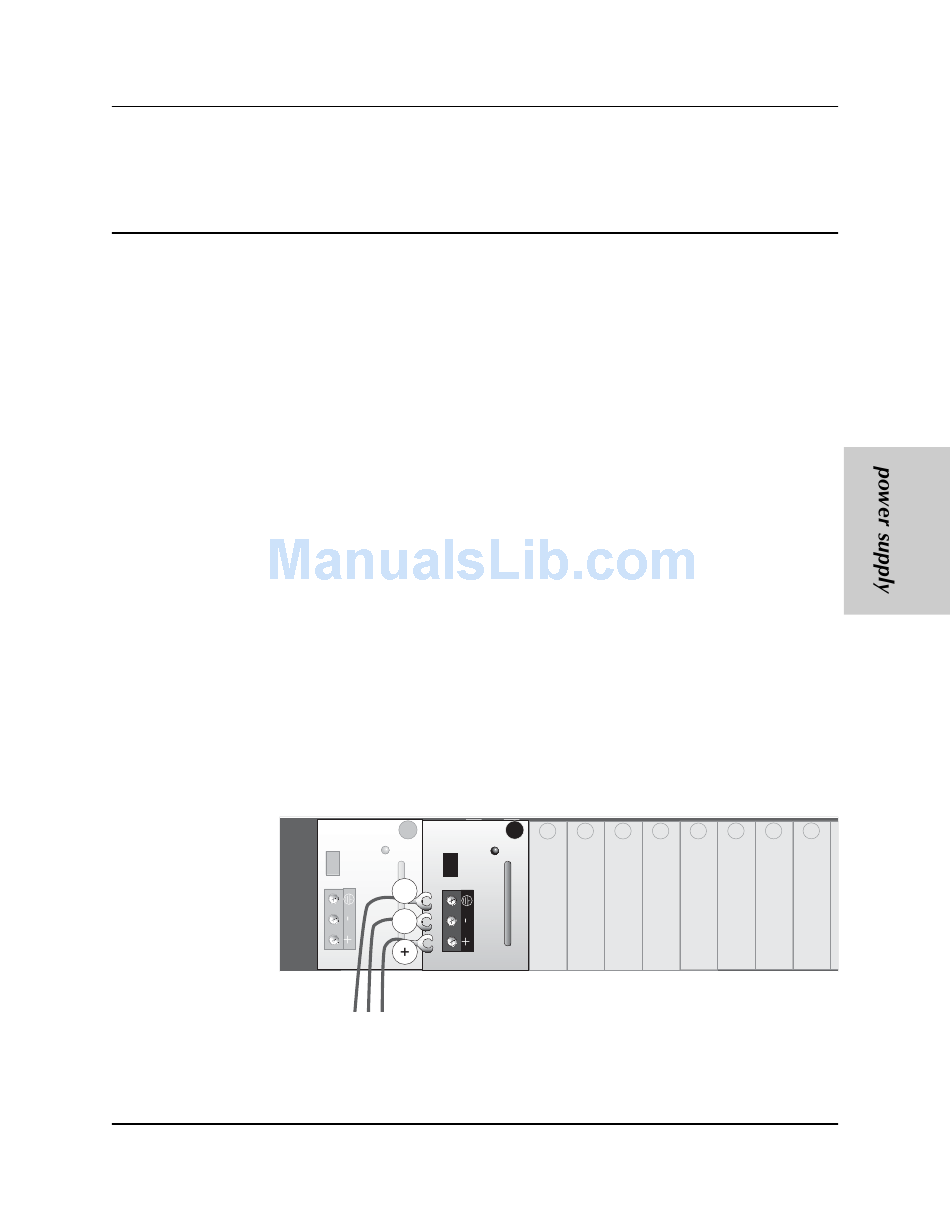

External Power Connectors
CPSMC13xx-100 PointSystem ™ Chassis
Panel Fastener Screw
Power LED
