3.2

CPSMP-130 Power Supply Module (48-VDC)

The CPSMC1310-100 chassis is equipped with a 48-VDC power supply module
(P/N CPSMP-130) installed in the front of the chassis. The power supply module
supplies power to the chassis, installed media converter slide-in-modules, and
management modules.

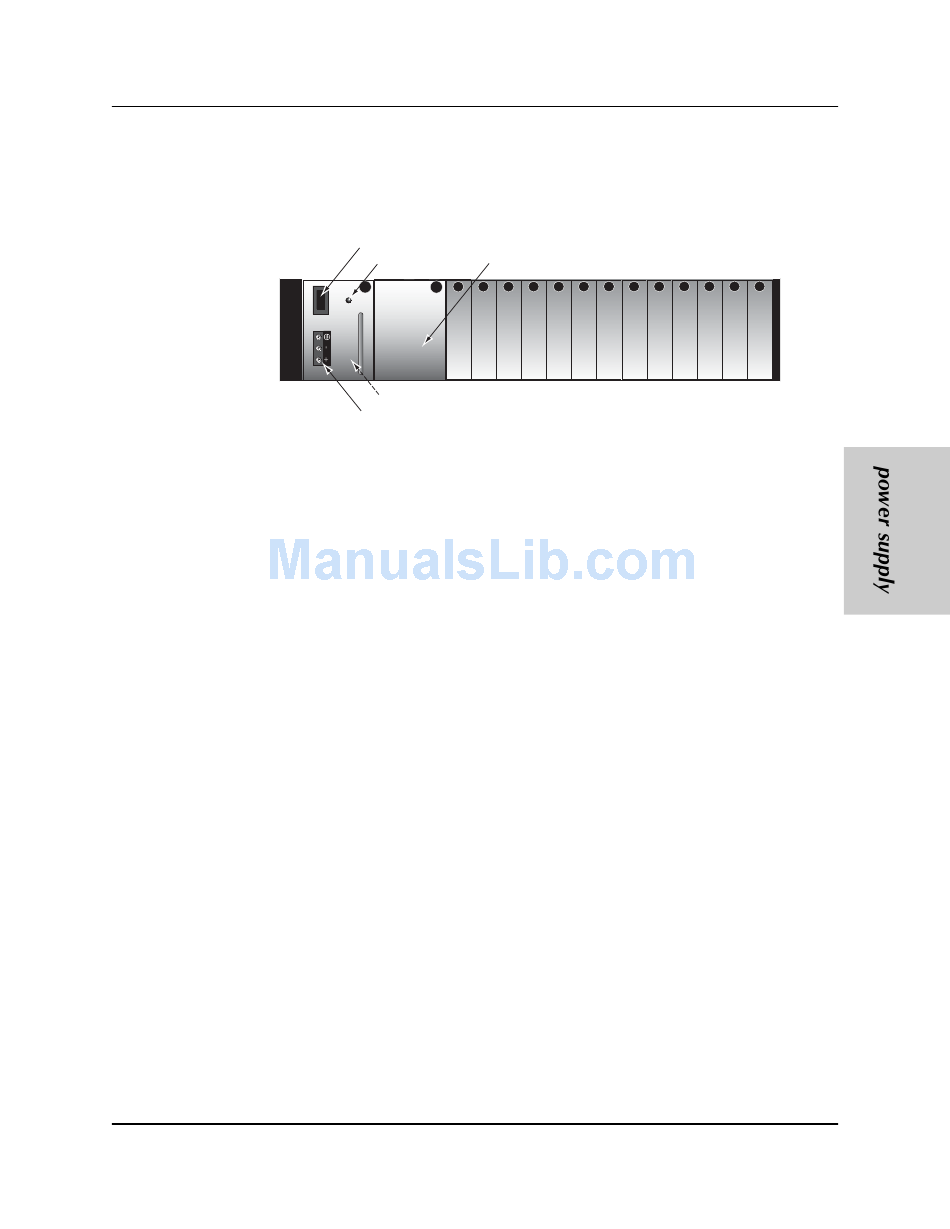

The components of the CPSMP-130 48-VDC power supply module include:
•
•
•
•
Optional Redundant 48-VDC Power Supply Module
An extra installation space is available in the front of the chassis for installing an
optional redundant 48-VDC power supply module (P/N CPSMP-130). See section
3.5.1 Installing the Power Supply Module for instructions on installation.
Instant Fail-Over
The Instant Fail-Over feature ensures uninterrupted power to the chassis. If one of
the power supply modules loses power, the chassis mother board automatically
switches to the other power supply.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
On/Off Switch
Power LED
I
0
Fuse (on the circuit board)
External Power Connectors
A set of three (3) external power connectors that distribute power from an
external 48-VDC outlet to a chassis ground connector, a positive (+) connector,
and a negative (-) connector on the power supply module.
An On/Off switch that, when set to "I", allows the module to supply power to
the chassis, and any installed modules.
A power LED indicator.
A fuse installed on the power supply module's circuit board.
CPSMC13xx-100 PointSystem ™ Chassis
Redundant Power Supply Installation Space
