4.3

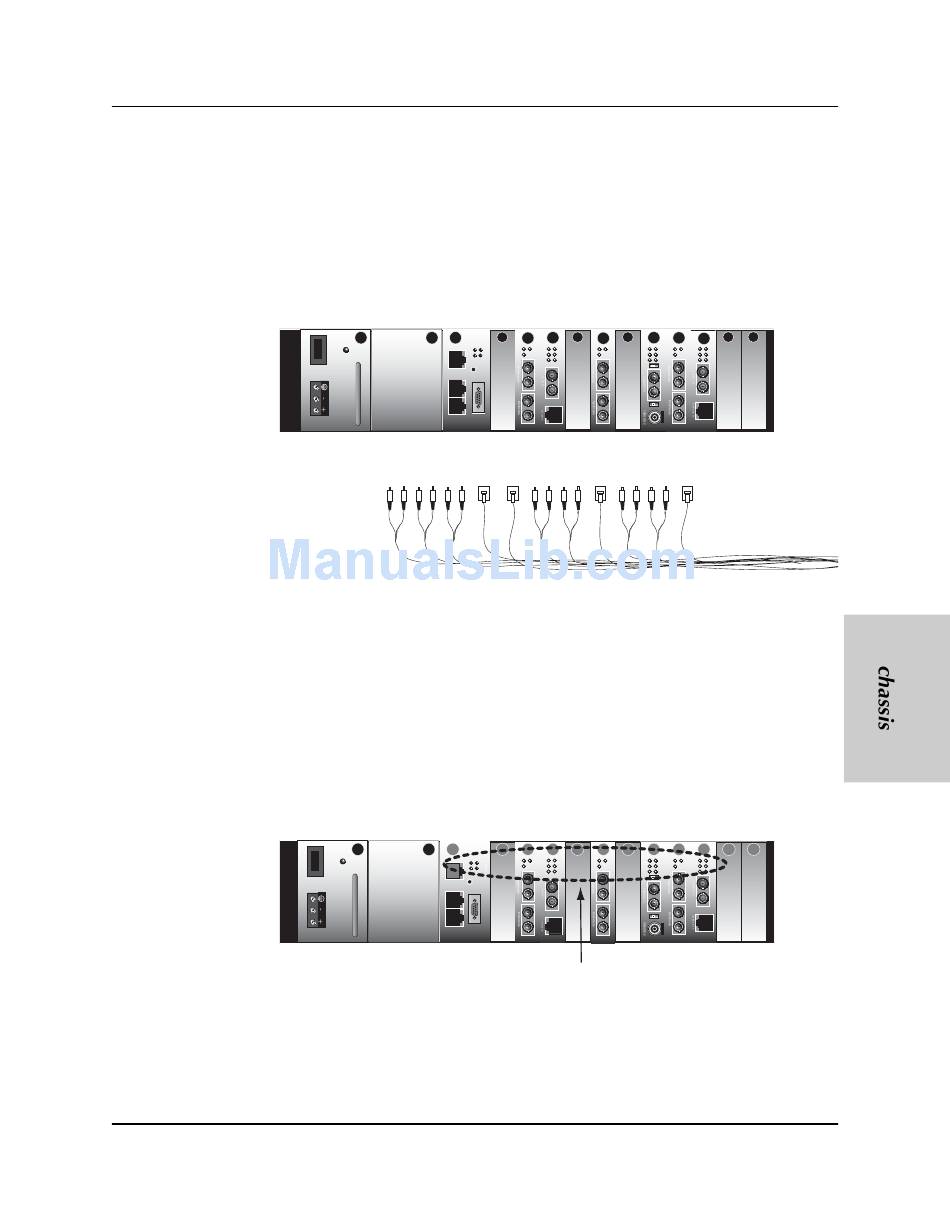

Connecting the Slide-in-Modules to the Network

Once the CPSMC13xx-100 chassis has been installed, the media converter slide-in-
modules may be connected to the network.
CAUTION:
connectors within the same network protocol (such as Ethernet-to-Ethernet, Fast
Ethernet-to-Fast Ethernet, ATM-to-ATM). Failure to observe this caution will cause
data transfer to fail.
Refer to the user's guide included with each media converter slide-in-module for
cabling specifications and instructions.
4.4

Operation

Daily operation of the CPSMC13xx-100 chassis requires no network administrator
activity except for the occasional monitoring of the status LED indicators on the
installed media converter slide-in-modules.
Each media converter and each management module has one or more LED
indicators to help monitor the CPSMC13xx-100 chassis network.
Refer to the individual user's guide included with each Transition Networks slide-in-
module to interpret the LED indicators.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Connect input/output network cables ONLY to media converter
I
TX PWR
0
RX LNK
RESET
Check the individual user's guides for specific information on
how to connect each slide-in-module to the network.
I
TX PWR
0
RX LNK
RESET
LED indicators on the management module and slide-in-modules
CPSMC13xx-100 PointSystem ™ Chassis
PWR PWR PWR
PWR
LKS SPD PWR LA
LKS LKS
LNK
LKM FRX FLNK LKM RXF LKM
CRX CLNK RXC COL
TX TX TX
Link Alert
E D TX
TX
RX RX RX
RX
TX
TX RX TX
0 50½
RX RX RX
CFMFF100 CFETF110 CFMFF100 CETCF100 CFMFF100
PWR PWR PWR
PWR
LKS SPD PWR LKS LA LKS
LNK
LKM FRX FLNK LKM RXF LKM
CRX CLNK RXC COL
TX TX TX
Link Alert
E
D TX
TX
RX RX RX
RX
TX TX TX
RX
50½
0
RX
RX RX
CFMFF100 CFETF110 CFMFF100 CETCF100
CFMFF100
SPD PWR
FRX FLNK
CRX CLNK
CFETF100
SPD PWR
FRX FLNK
CRX CLNK
CFETF100
28
