Copper Cable; Technical Specifications - Transition Networks E-100BTX-FX-04(LH) User Manual

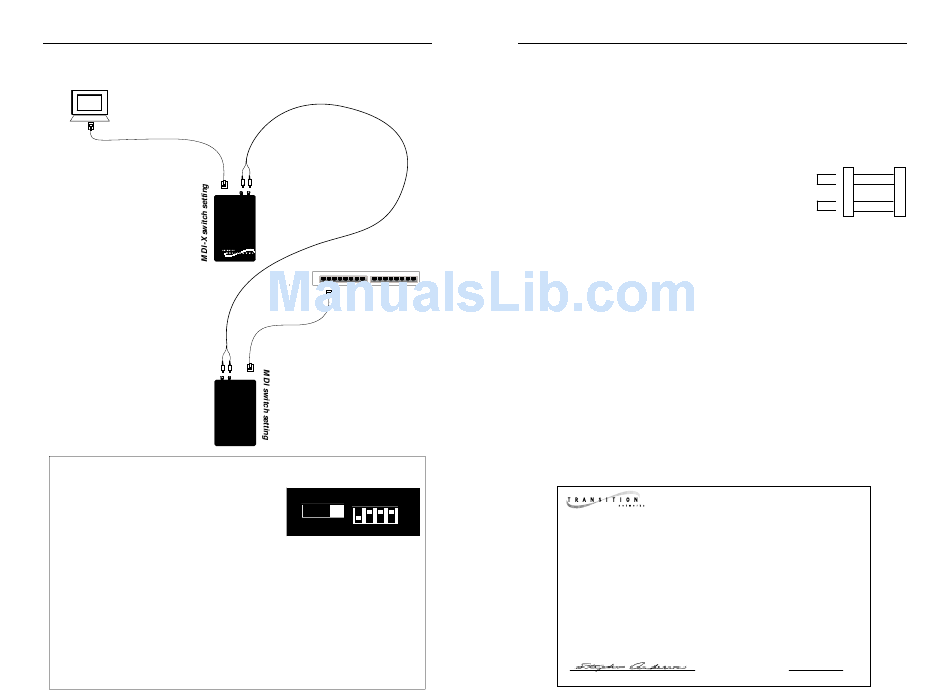

E-100BTX-FX-04 IN THE NETWORK
100 meters
UTP/STP
Do NOT connect media
converters between hubs.
Install no more than two (2)
media converters in series.
Switches at the side of the media converter are used to configure the media
converter for the network.
MDI/MDI-X SWITCH
Allows straight-through twisted-pair cable to be
used for crossover 100BASE-TX connections.
4-POSITION SWITCH
1(UP) Enables Auto-negotiation function to detect and adapt to line
speed/operation mode of attached device. (DOWN) Disables Auto-
negotiation function.
2(UP) Allows an attached full-duplex station to transmit and receive
simultaneously. (DOWN) Allows an attached half-duplex station to transmit
and receive sequentially.
3(UP) Enables BOTH Link Pass Through AND Remote Fault Detect functions.
(See page 4) (DOWN) Disables BOTH Link Pass Through AND Remote Fault
Detect functions
4 Relevant only if Switch 3 is UP. (UP) Enables Remote Fault Detect function
at Switch 3. (DOWN) Disables Remote Fault Detect function at Switch 3.
2 kilometers - multimode
20 kilometers - singlemode
40 kilometers - singlemode (LH)
Fiber
100 meters
1 2 3 4
MDI MDI-X

Copper Cable

Category 5 shielded twisted-pair (STP) or unshielded twisted-pair (UTP) copper
wire is required. DO NOT USE FLAT OR SILVER SATIN WIRE.
CATEGORY 5:
Gauge
Attenuation
Maximum Cable Distance:
The two active pairs in a 100BASE-TX
network are pins 1 & 2 and pins 3 & 6. Use
only dedicated wire pairs (such as
blue/white & white/blue, orange/white &
white/orange) for the active pins.

TECHNICAL SPECIFICATIONS

Standards IEEE 802.3u
Case Dimensions 4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm)
Shipping Weight 3 pounds
Delay 400nsec round trip
Environment Temperature:
Humidity
Altitude
Power Supply Requirements Replace power supply with only the equivalent
input rating (see below) and output rating (regulated 9VDC at 550 mA).
TN PN Requirement
3525 240 volts, 50 hertz
3525 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3525 240 volts, 50 hertz
NOTE: This product can be powered by the E-MCR series media converter rack.
Warranty Lifetime
DECLARATION OF CONFORMITY
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: E-100BTX-FX-04 Series Media Converters
Part Number(s): E-100BTX-FX-04, E-100BTX-FX-04(SC), E-100BTX-FX-04(MT),
E-100BTX-FX-04(SM), E-100BTX-FX-04(SMLC), E-100BTX-FX-04(LH),
E-100BTX-FX-04(XL), E-100BTX-FX-04(LW)
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the E-100BTX-FX-04 to which this declaration refers is
in conformity with the following standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
24 to 22 AWG
22.0 dB /100m @ 100 MHz
100 meters
Straight Through Cable
1 1
Twisted
Pair #1
2 2
Twisted 3 3
Pair #2
6 6
(1.4 kilograms)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
_August 1, 1999_____
Date
