MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards 802.3, 100BASE-SX PMD
Case dimensions
4.75" x 3.0" x 1.0"
Shipping Weight
2 pounds
Environment
Temperature:
Humidity
Altitude
Warranty
Lifetime
Power Supply Requirements
Replace power supply with only the equivalent input
rating (see below) and output rating (regulated 9VDC at 700 mA).
TN PN Requirement
3525 240 volts, 50 hertz
3525 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3525 240 volts, 50 hertz
NOTE: This product also can be powered by the Transition Networks E-MCR series media
converter rack.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
(0.9 kilograms)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33103.B
10BASE-T/100BASE-TX to 100BASE-SX
Bridging Media Converter
E-PSW-SX-01, E-PSW-SX-01(SC)
USER'S GUIDE
TRANSITION Networks E-PSW-SX-01 series two-port bridging media
converter segments 10BASE-T/100BASE-TX copper and 100BASE-SX fiber
Ethernet collision domains to extend total network diameter, to reduce
™
network congestion, and to convert between legacy 10BASE-T and
100BASE-SX environments.
A four-position DIP switch located at the side of the media converter allows
site-selection of auto-negotiation, of 10MB/s or 100Mb/s speed, and of
full-duplex or half-duplex mode.
E-PSW-SX-01
Provides an RJ-45 twisted-pair
connector to UTP/STP copper
cable and a set of RX (receive)
and TX (transmit) ST 850nm
multimode fiber connectors.

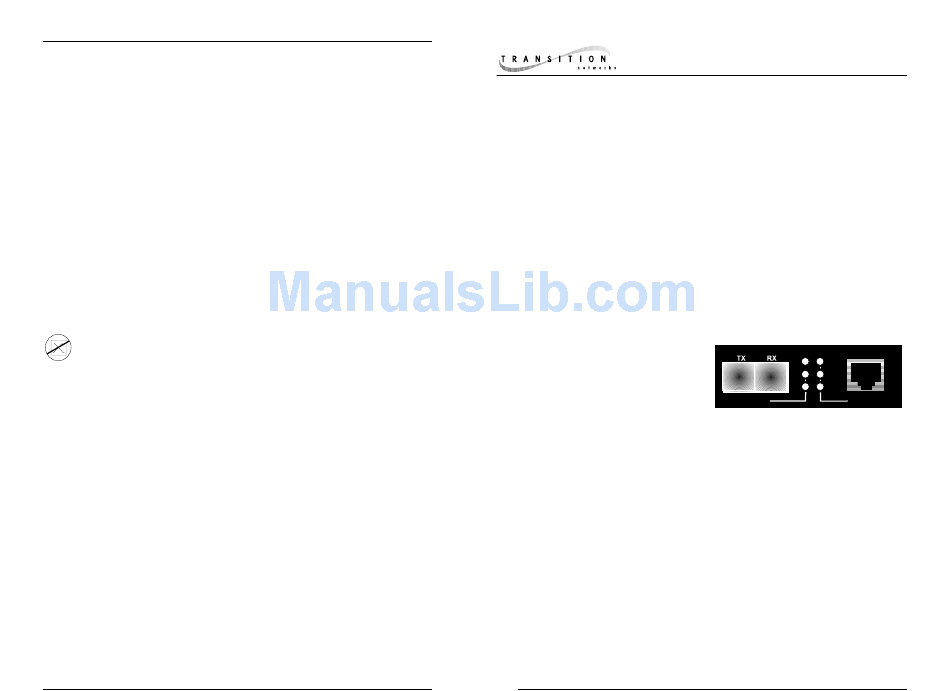

E-PSW-SX-01(SC)
Provides an RJ-45 twisted-pair
connector to UTP/STP copper
cable and an RX (receive) and TX
(transmit) SC 850nm multimode
fiber connector.
STATUS LEDS
Power Steady green LED indicates connection to external AC power.
100 Indicates 100MB/s speed on UTP/STP.
Link (RECEIVE) Steady green LED indicates UTP/STP OR Fiber link.
Blinking green LED indicates packet reception on UTP/STP OR
Fiber link.
FDX Steady green LED indicates full-duplex operation on UTP/STP
OR on Fiber link.
Minneapolis, MN 55344 USA
Power
100
Link
FDX
Fiber Link UTP/STP
