Installation
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the jumper or when installing the media converter.
Failure to observe this caution could result in damage to, and subsequent
failure of, the media converter.

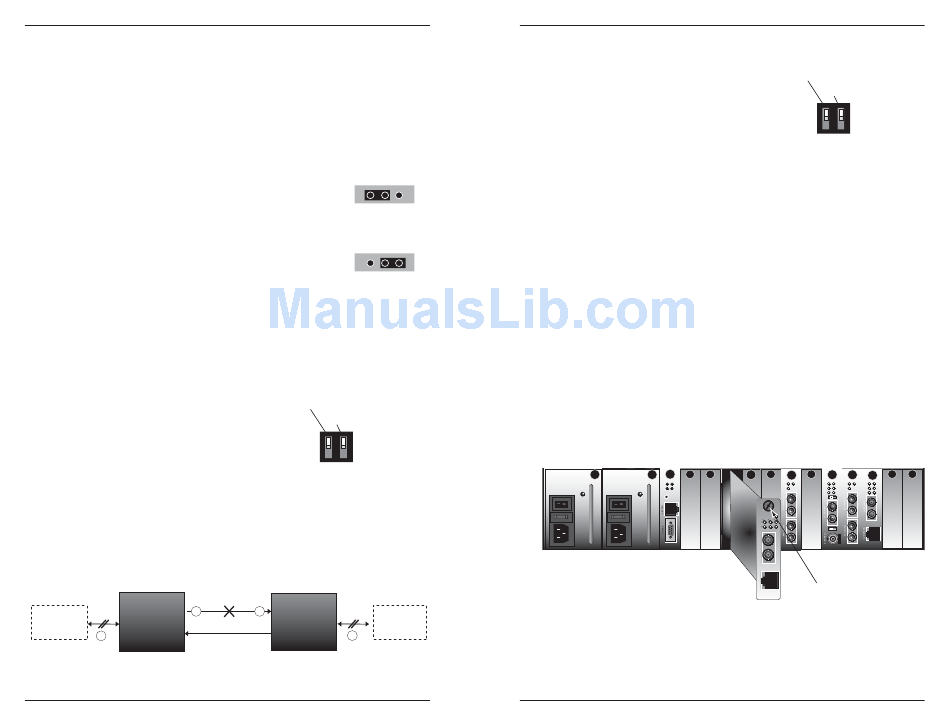

Set the Hardware / Software Jumper
•
The hardware/software jumper (J2) is located on
the circuit board.
•
Use small needle-nose pliers to move the jumper
to the desired position.
Hardware The media converter mode is determined by
the switch settings (see below).
Software
The media converter mode is determined by
the most-recently saved, on-board
microprocessor settings.
The Link Pass-Through and speed switches are located on the side of the
media converter. Use a small screwdriver to set the recessed switches.
Set Link Pass-Through (switch 1)
Switch 1 sets the Link Pass-Through feature:
up
= Enable Link Pass-Through.
down = Disable Link Pass-Through.
Link Pass-Through is a troubleshooting feature that allows the media converter
to monitor both the fiber and copper RX (receive) ports for loss of signal. In
the event of a loss of an RX signal on one media port, the media converter will
automatically disable the TX (transmit) signal of the other media port, thus,
"passing through" the link loss. This feature prevents the loss of valuable data
unknowingly transmitted over an invalid link.
media converter A
disables the fiber TX link
2
Near-End
Media
Device
Converter A
1
original fault
on the copper link
2
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
J2
H
S
hardware mode
J2
H
S
software mode
Link Pass-Through: up = Enable
Speed: up = 100 Mb/s
1 2
media converter B
loses the fiber RX link
3
Media
Far-End
Converter B
Device
4
media converter B
disables the copper link
Installation
-- Continued
Set the Speed (switch 2)
Switch 2 sets the speed for both the twisted-pair
copper and fiber links:
up
= copper and fiber links are at 100Mb/s.
down
= copper and fiber links are at 10 Mb/s.
NOTE: The CSEFE10xx-10x media converters are fully compliant with
10Base-T, 100Base-TX, and 100Base-FX standards and, therefore, can be
connected to any compliant 10Base-T, 100Base-TX, and 100Base-FX devices.
The CSEFE10xx-10x media converters are NOT 10Base-FL compliant and,
therefore, must be connected to another CSEFE10xx-10x media converter in a
10Mb/s network.
Install the Slide-In-Module
CAUTION: Slots in the PointSystem™ chassis without a slide-in-module
installed MUST have a protective plate covering the empty slot for Class A
and/or Class B compliance.
To install the CSEFE10xx-10x media converter slide-in-module:
1.
Locate an empty installation slot on the PointSystem™ chassis.
2.
Carefully slide the slide-in-module into the installation slot, aligning the
module with the installation guides.
3.
Ensure that the module is firmly seated against the back of the chassis.
4.
Push in and rotate the panel fastener screw (attached to the slide-in-
module) to secure the module to the chassis front.
TX
PWR
RX
LNK
R
E
S
E
T
INIT
TERM
CPSMM120
Power the Media Converter
The CSEFE10xx-10x slide-in-module is powered through the Transition
Networks PointSystem™ chassis.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat
Link Pass-Through: up = Enable
Speed: up = 100 Mb/s
1 2
PWR
PWR
PWR
PWR
LKS
LKS
LA
LKS
SPD
PWR
LNK
LKM
LKM
RXF
LKM
FRX
FLNK
RXC
COL
CRX
CLNK
TX
TX
Link Alert
TX
E
D
TX
PWR
RX
RX
RX
ACT
100
10
RX
TX
TX
TX
SX
TX
0
50½
RX
RX
RX
CFMFF100
CFMFF100
CETCF100
CFMFF100
CFETF100
panel fastener screw
3
