Diagnostic Monitoring Interface (DMI)

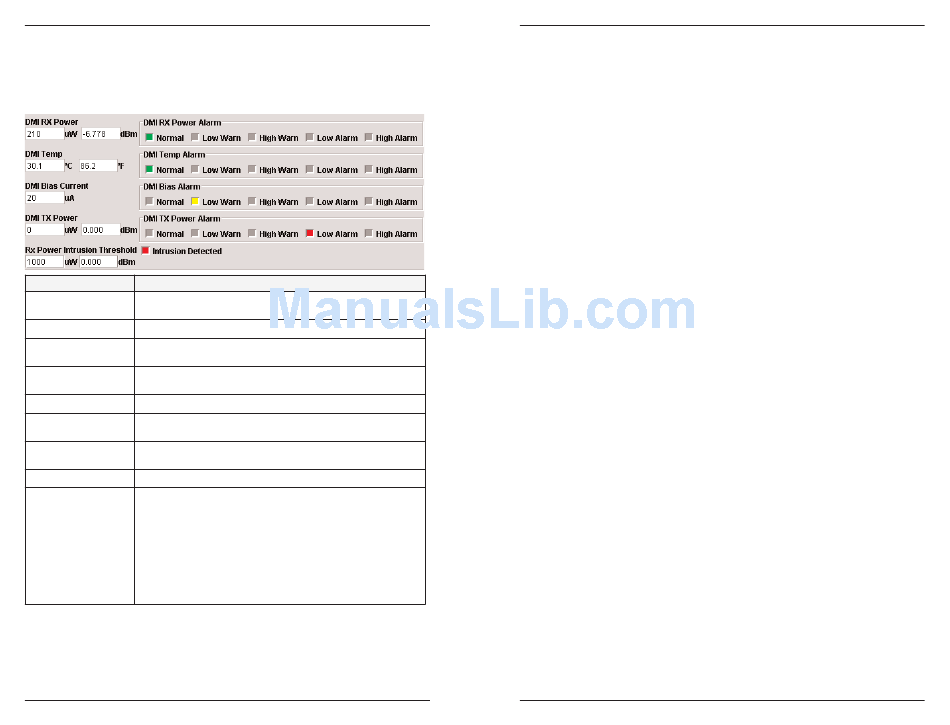

The following DMI port screen and explanation table contains brief definitions of the
DMI support offered on Transition Networks SFP optical interfaces. For further
information, please see the help option on the CPSMM-xxx SNMP agent or Focal Point
GUI.
Variable Name Description
DMI Rx Power Measured Receive optical power in microwatts and in decibels
relative to 1mW.
DMI Rx Power Alarm Alarm status of measured Receive optical power.
DMI Temp Internally measured temperature of transceiver in degrees C and
degrees F.
DMI Temp Alarm Alarm status for internally measured temperature of transceiver.
DMI Bias Current Measured transmit bias current in microamperes.
DMI Bias Alarm Alarm status for measured transmit bias current for the
interface.
DMI Tx Power Measured transmit power, in microwatts and in decibels relative
to 1mW..
DMI Tx Power Alarm Alarm status of measured transmit power.
Rx Power Intrusion Instructs the converter to stop passing traffic when the receive
Threshold power drops below the new threshold. This feature is
sometimes referred to as 'Intrusion Detection, since tapping into
a fiber to intercept traffic leads to a reduction in receive power.
This value can be entered in microwatts or in decibels relative
to 1mW.
Note: This feature is not available on all devices.
24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
10

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber cable

Bit Error Rate:
Single mode fiber (recommended):
Multimode fiber (recommended):
Multimode fiber (optional):
CGETF1013-110
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Link Budget:
CGETF1014-110
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
CGETF1015-110
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
CGETF1017-110
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
CGETF1024-110
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
CGETF1035-110
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
CGETF1029-110
CGETF1029-111
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
<10-9
9 μm
62.5/125 μm
100/140, 85/140, 50/125 μm
850 nm multimode
min: -10.0 dBm max: -4.0 dBm
min: -17.0 dBm max: 0.0 dBm
7.0 dB
1310 nm single mode
min: -9.5 dBm max: -3.0 dBm
min: -20.0 dBm max: -3.0 dBm
10.5 dB
1310 nm single mode
min: -5.0 dBm max: -0.0 dBm
min: -24.0 dBm max: -3.0 dBm
19.0 dB
1550 nm single mode
min: -3.0 dBm max: 2.0 dBm
min: -24.0 dBm max: -3.0 dBm
21.0 dB
1300 nm extended multimode
min: -10.0 dBm max: -3.0 dBm
min: -17.0 dBm max: -3.0 dBm
7.0 dB
1550 nm single mode
min: 0.0 dBm max: 5.0 dBm
min: -27.0 dBm max: -3.0 dBm
27.0 dB
1310nm TX / 1550nm RX single mode
1550nm TX / 1310nm RX single mode
min: -8.0 dBm max: -3.0 dBm
min: -21.0 dBm max: -3.0 dBm
13.0 dB
