VLT® Flow Drive FC 111
Design Guide
6.4.5 Relays and Terminals on Enclosure Size H13–H14
1

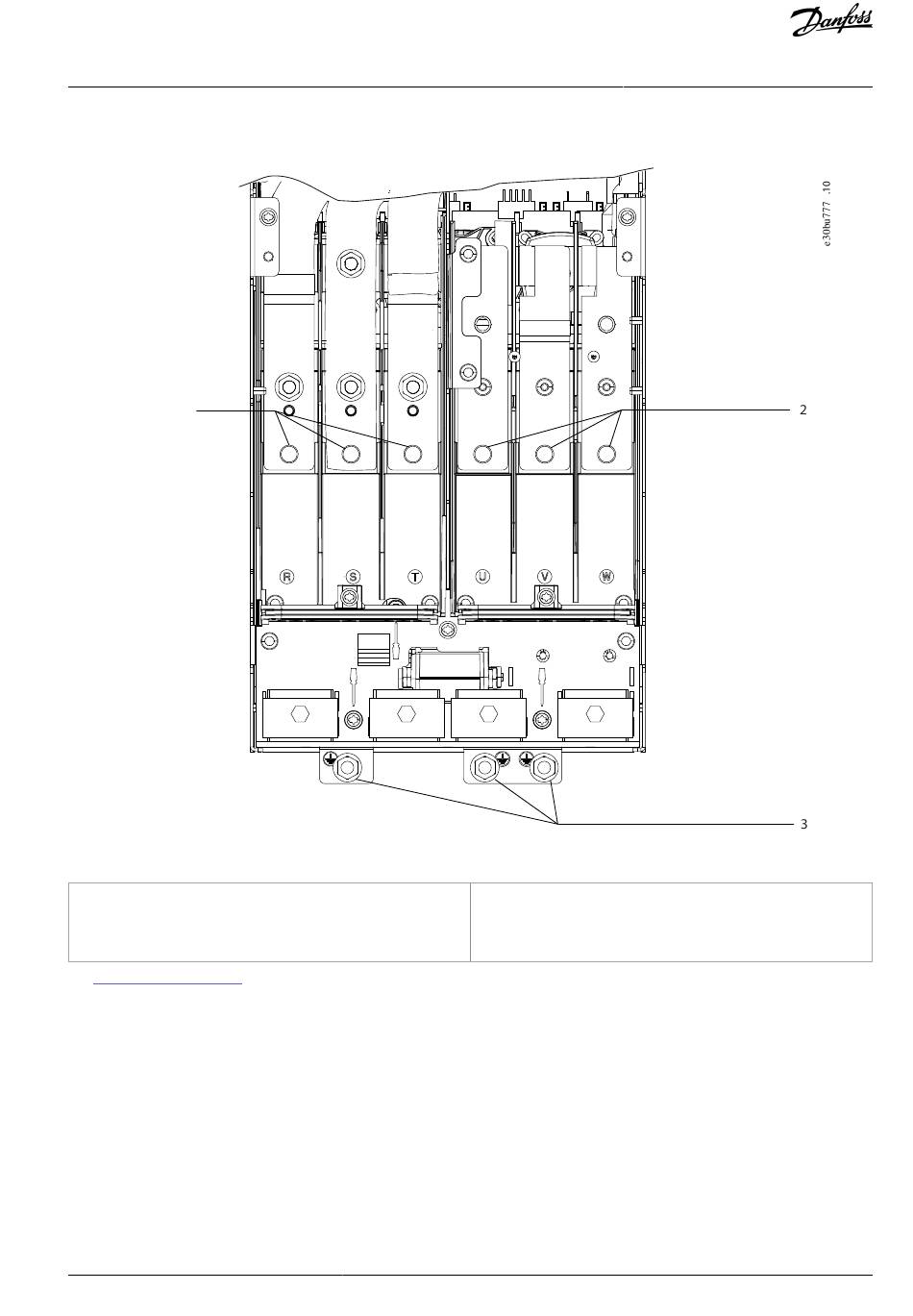

Illustration 52: Enclosure Size H13–H14 IP20, 380–480 V, 110–315 kW (150–450 hp)
1 Mains
2 Motor
See 6.5 View of Control Shelf
6.5 View of Control Shelf
The control shelf of H13-H14 drives holds the keypad, known as the local control panel or LCP. The control shelf also includes the
control terminals, relays, and various connectors.
Danfoss A/S © 2021.04
for the relay terminals of H13–H14 drives.
3 Ground
AJ363928382091en-000101 / 130R0983 | 69
Electrical Installation
Considerations
