2.1.1.

Connection Ports

Port Number
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
3
2
1

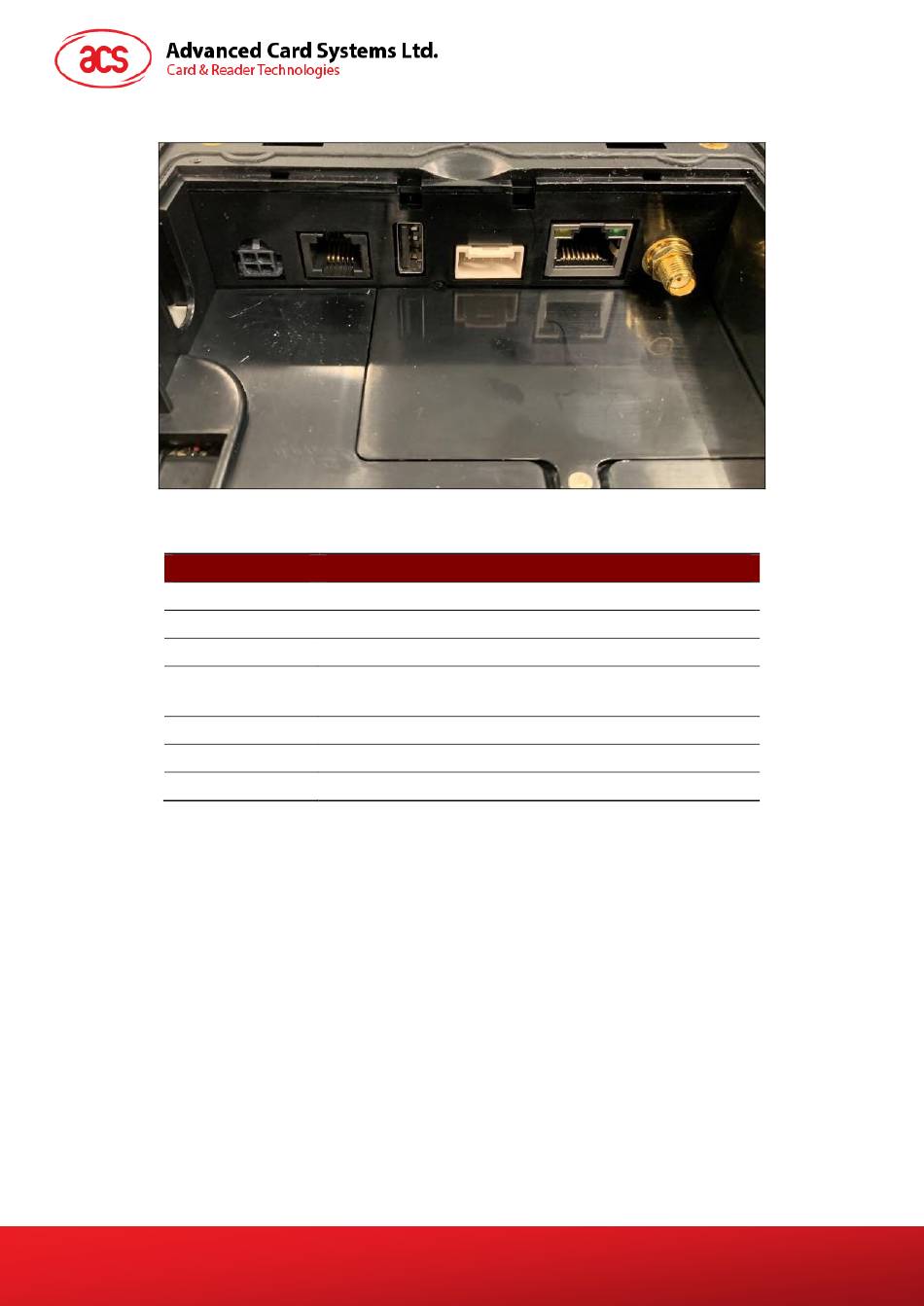

Figure 2: ACR350 Connection Ports

Port Name
1 Power Socket (With ignition pin)
2 RJ11 Serial Port (RS232, RS485)
3 USB Host
GPIO and CANBUS
4
(12P socket MOLEX 5018761240, mate with 501646 plug)
5 Ethernet
6 Socket for External GPS Antenna
7 SAM Cover with 4 ISO7816 SAM Socket inside

Table 2: ACR350 Connection Ports Description

5
4
7
6
Page 7 of 61
