2.3. Installing the Back Mount

2.3.1.

Preparing the Components

Prior to installation, it is necessary to ensure that the components are complete and in good condition.
Both the pole and the back-mount should be ready before the installation.
2.3.1.1. The Pole
To prepare the pole:
1. On the right side of the pole, check if the holes needed to secure the position of the ACR350 have
been well-drilled. For reference, please refer to the illustration below.
Note: The position of the holes can be adjusted depending on the requirement
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
Cable in

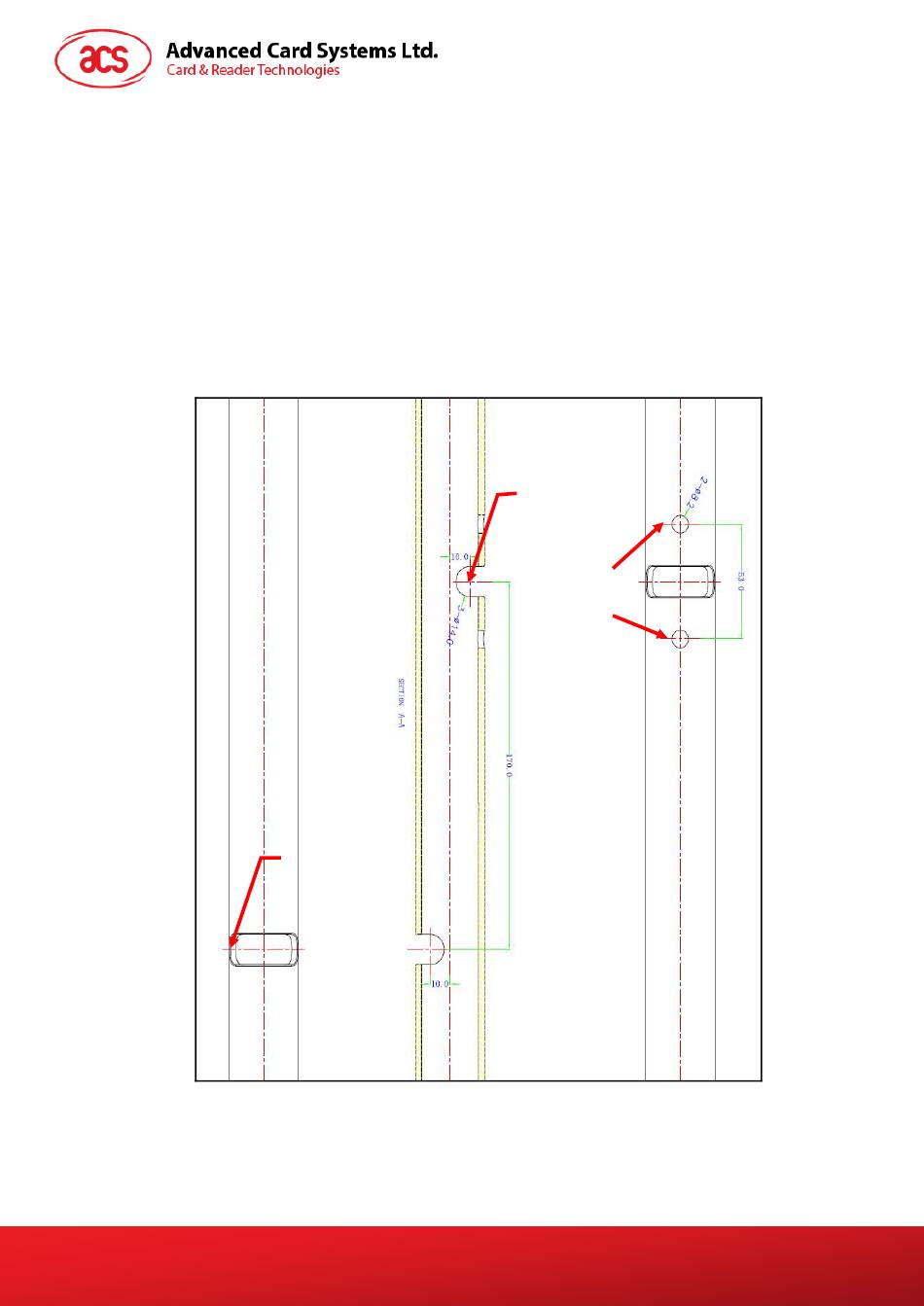

Figure 7: Pole Hole Position

Cable out
2 Holes that
prevent the
back- mount
from moving
