3.0. ACR350 Software Overview

The ACR350 EVK includes C++ programming language.

3.1. C++ Software Block Diagram

Note: Additional Information below:
 Tool Chain version: phytec-acr350-glibc-x86_64-phytec-qt5demo-image-cortexa9t2hf-neon-
toolchain-BSP-Yocto-i.MX6-PD20.1.0.sh
 QT version: 5.12.8
 For the APPLICATION, the file should be placed inside /data.
 For the DATA, the file should be placed inside /data.
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02

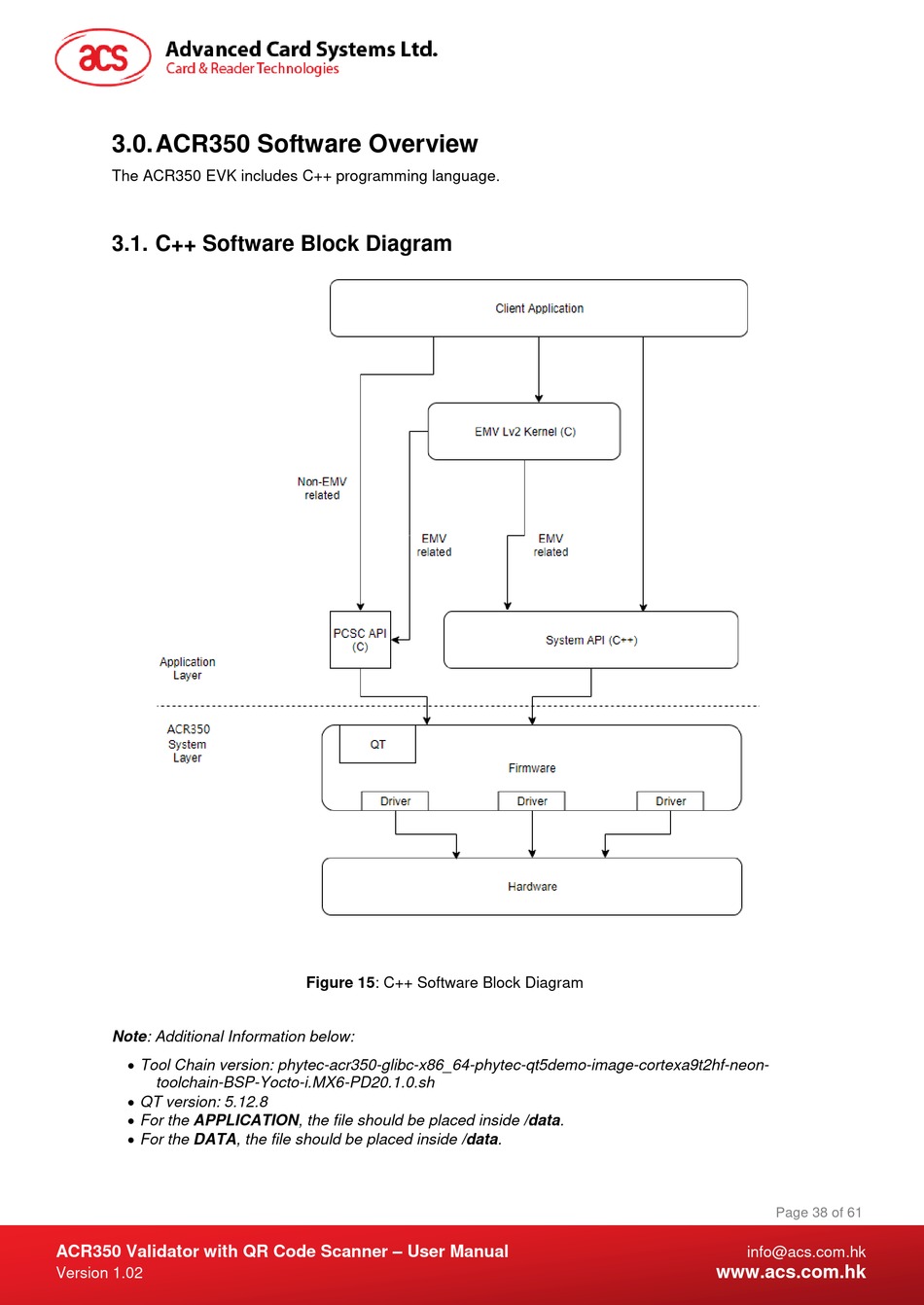

Figure 15: C++ Software Block Diagram
