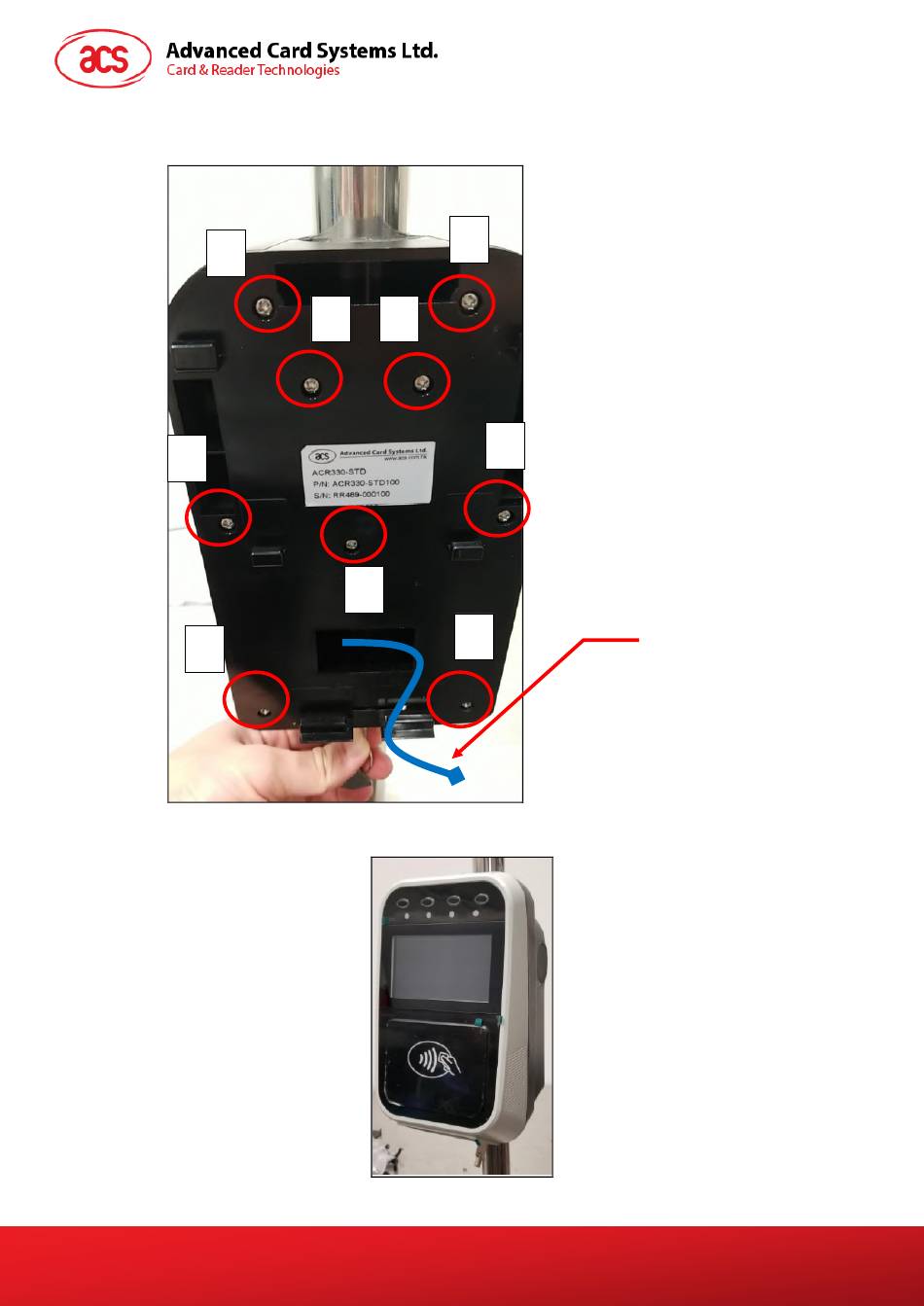

8. Screw the top cover to the back cover using PM3.0*10 screws (9 pieces). The exact position
and order is shown on the photo below:
1
5
3
9. Connect the cables to the ACR350.
10. Mount the ACR350 on the back-mount.
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
2
7 8
9
4
6
Note: This is where the
Connection Cable (ie, Power
Cord) will go through. Make
sure that the cables are out
so that they may be easily
connected to the ACR350
Validator later on.
