LTE Board Description

Note: Below is the application direct access device paths list:

ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
1
4
5

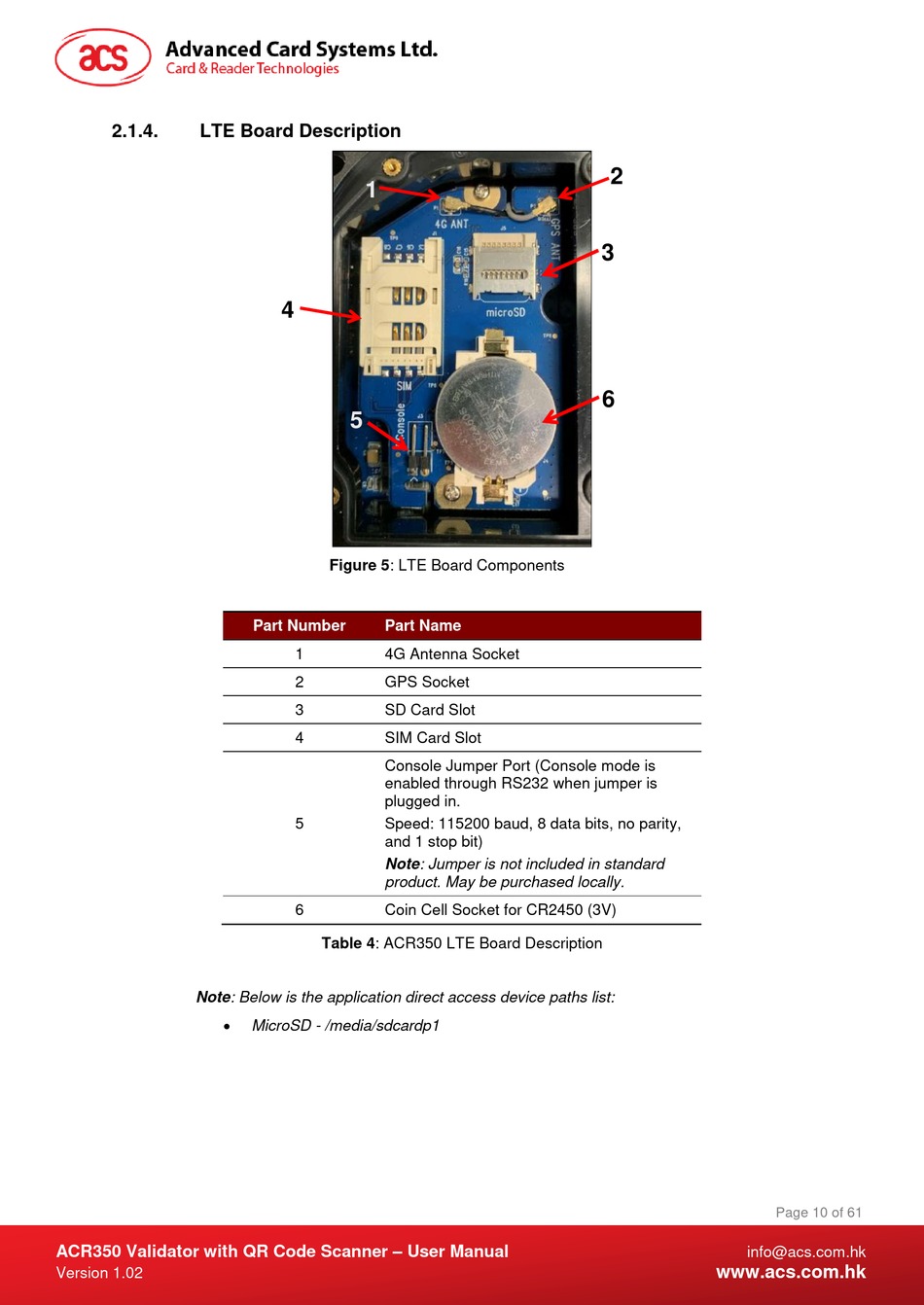

Figure 5: LTE Board Components

Part Number Part Name
1 4G Antenna Socket
2 GPS Socket
3 SD Card Slot
4 SIM Card Slot
Console Jumper Port (Console mode is
enabled through RS232 when jumper is
plugged in.
5 Speed: 115200 baud, 8 data bits, no parity,
and 1 stop bit)
Note: Jumper is not included in standard
product. May be purchased locally.
6 Coin Cell Socket for CR2450 (3V)

Table 4: ACR350 LTE Board Description

MicroSD - /media/sdcardp1
2
3
6
