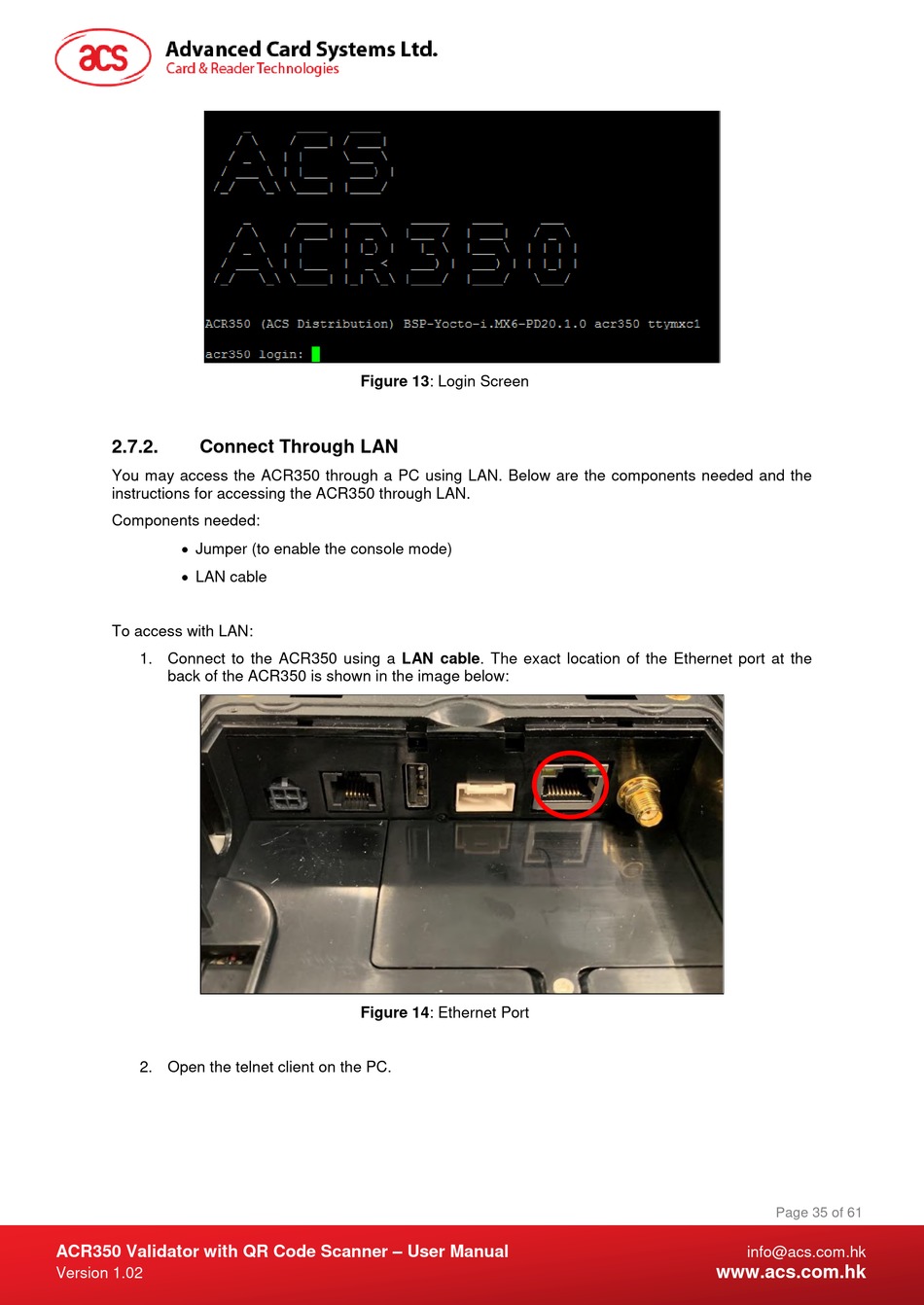

Connect Through Lan; Figure 13: Login Screen; Figure 14: Ethernet Port - Advanced Card Systems ACR350 User Manual

2.7.2.

Connect Through LAN

You may access the ACR350 through a PC using LAN. Below are the components needed and the
instructions for accessing the ACR350 through LAN.
Components needed:
 Jumper (to enable the console mode)
 LAN cable
To access with LAN:
1. Connect to the ACR350 using a LAN cable. The exact location of the Ethernet port at the
back of the ACR350 is shown in the image below:
2. Open the telnet client on the PC.
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02

Figure 13: Login Screen

Figure 14: Ethernet Port

Page 35 of 61
