2.2. ACR350 EVK Components

The ACR350 EVK contains the following items:
1. Debug Cable
2. Console Jumper Port
3. 1m DC Power Jack to Molex Power Cord

The cable should comply with the required power rating.
(example: 12V == 4A; 24V == 2A)

A DC jack adapter may be needed depending on the power supply used.
4. Demo Cards
Purpose: To be used for the demo pre-installed on the reader

2 pcs. Test Cards [Type: Mifare Desfire EV1]

There are QR Codes at the back of the cards to emulate both a valid and an expired
card.
Note: For more information about the demo, please check Section 3.3 - ACR350 Demo
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
1
2

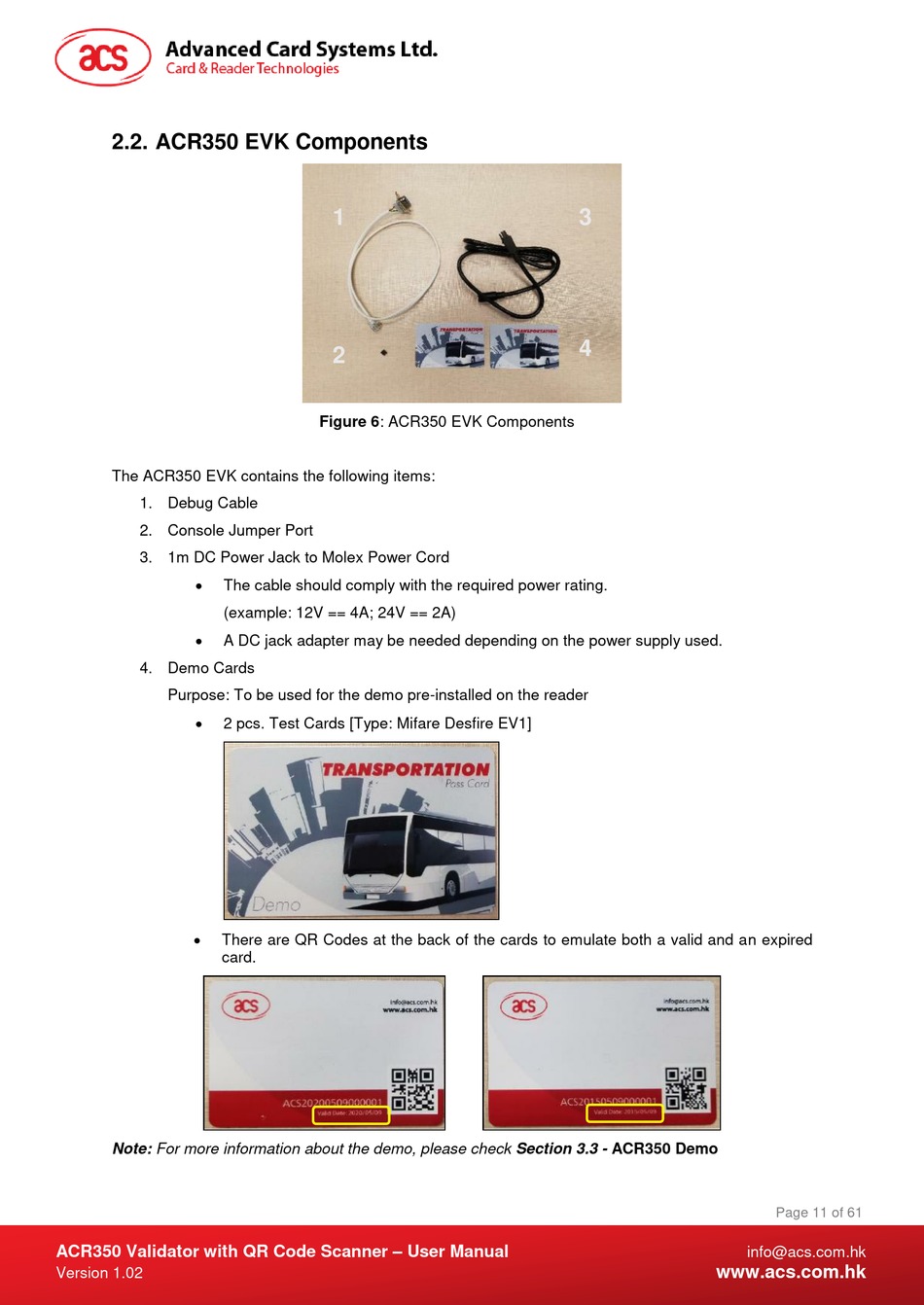

Figure 6: ACR350 EVK Components

3
4
