4. Screw the back cover to the metal parts using PM4*25 screws (4 pieces).

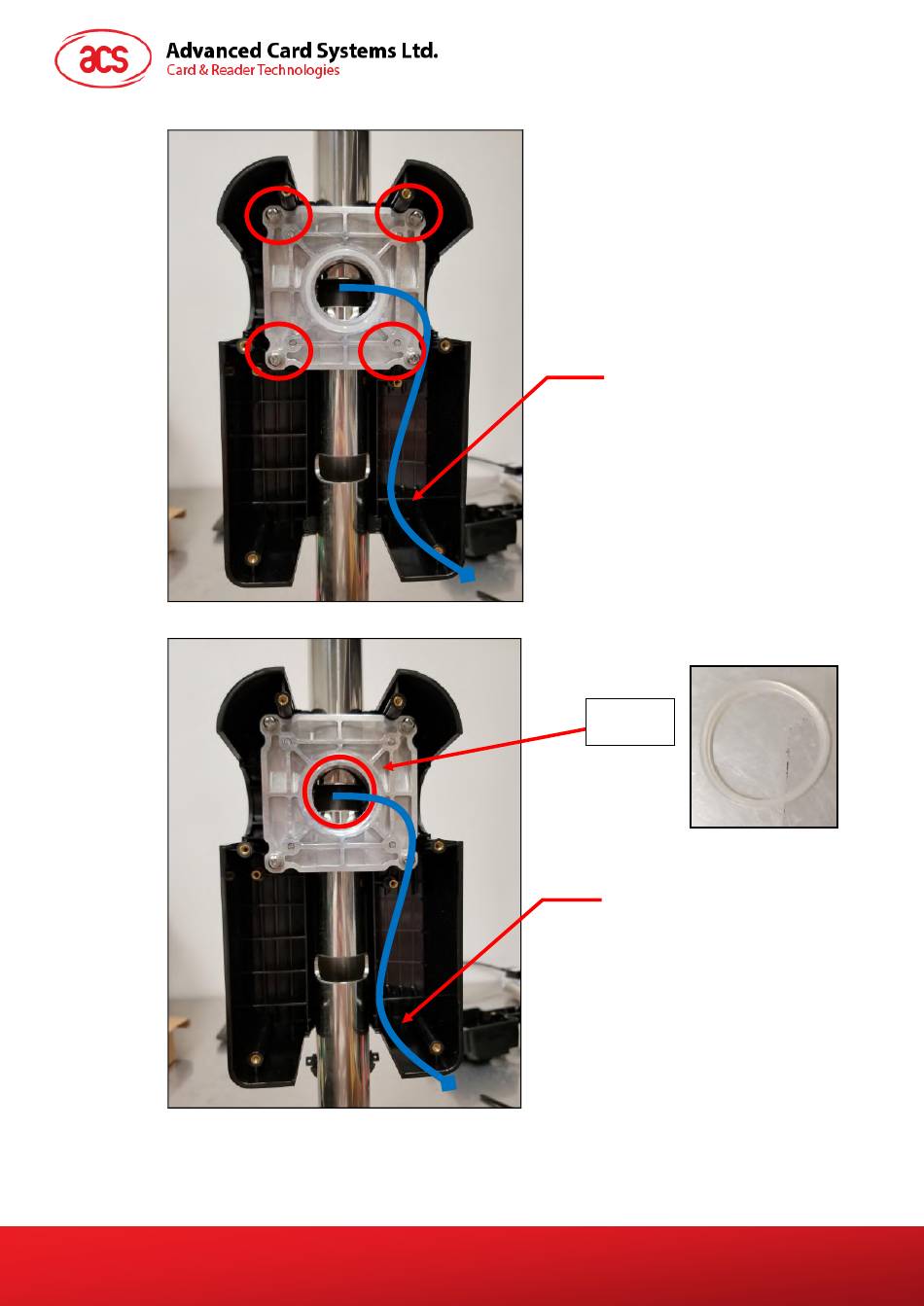

5. Place the O-ring on top of the metal part. The exact position is shown on the photo below:
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
Note: This is where the
Connection Cable (ie, Power
Cord) will go through. Make
sure that the cables are out
so that they may be easily
connected to the ACR350
Validator later on.
O-ring
Note: This is where the
Connection Cable (ie, Power
Cord) will go through. Make
sure that the cables are out
so that they may be easily
connected to the ACR350
Validator later on.
