3.2.6.

LED/Speaker Settings Module

The LED/Speaker module allows you to configure the LED Settings on Page 1 and Speaker Settings
on Page 2.
3.2.6.1. LED Settings
Page 1 shows the configurable LED Settings.
1. Select "LED/Speaker".
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
2. User controllable settings for the Front LEDs will be shown.
Note: When Cycle is selected, the LED will light up from left
to right.
3. The tapping region's backlight changes when the CSC Reader
LED setting is controlled.
Note: When Cycle is selected, the backlight will change
between the three colors simultaneously.
4. The Button's LED backlight
will turn ON and OFF upon
selection of the Button LED
settings.

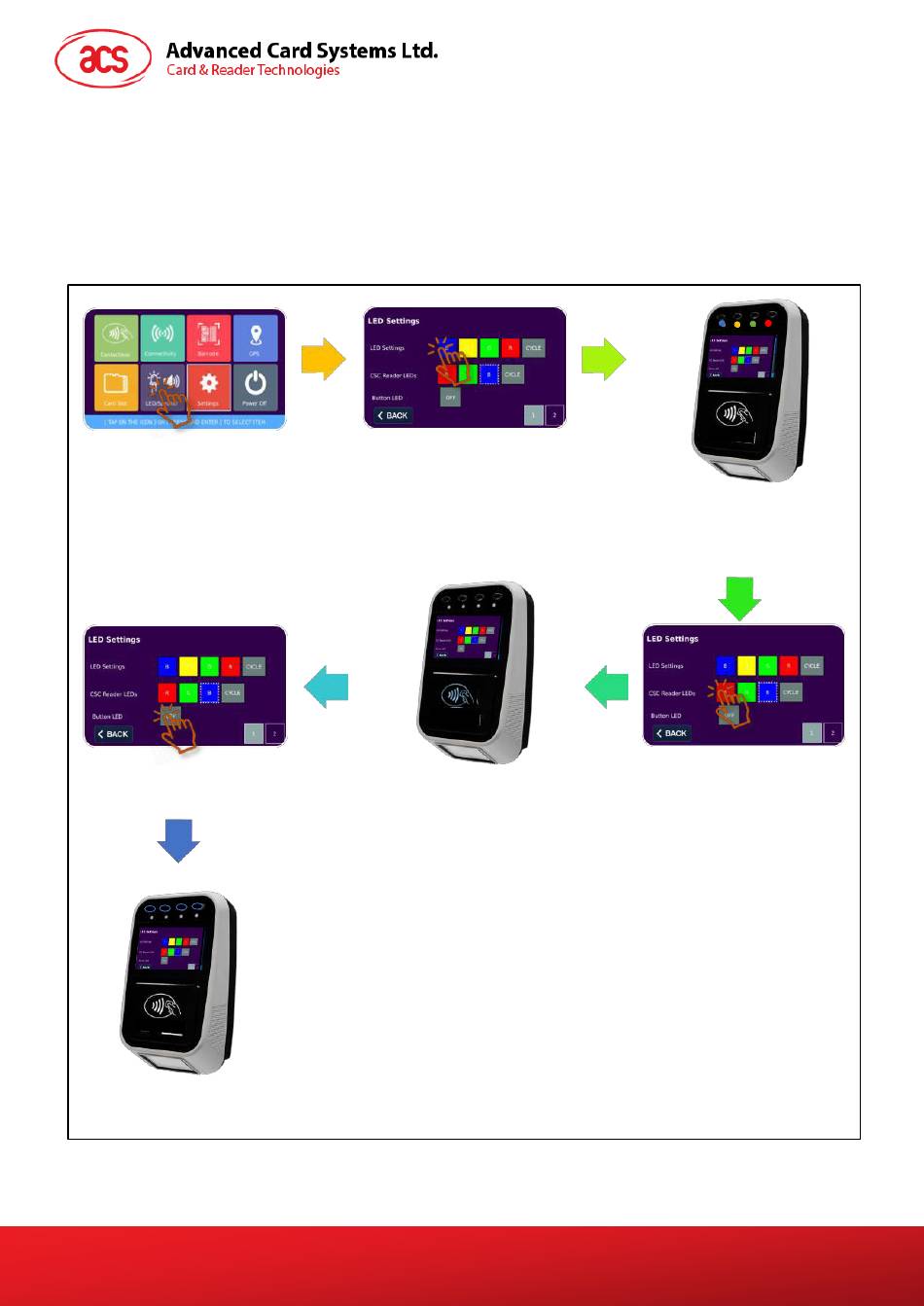

Figure 31: LED Settings
