2. Check if the required cables (e.g. power cords) have been properly passed through the poles, and
that they can reach the position of the mounting with ample extra length.
3. Check the following details of the pole:
 Diameter (31/32mm or 35mm)
 Orientation (Vertical or Horizontal)
4. After checking the pole, proceed to check the back-mount.

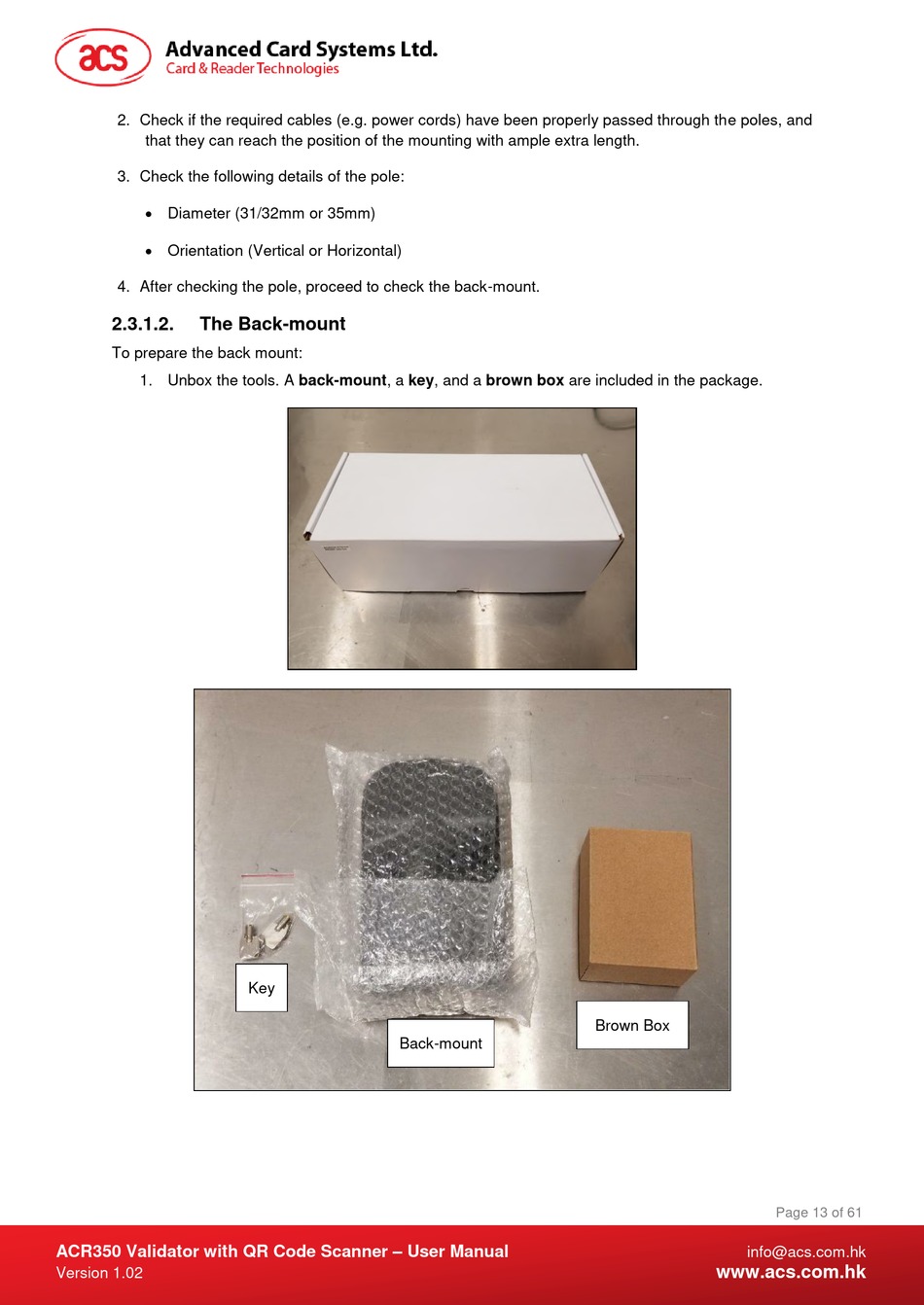

2.3.1.2. The Back-mount
To prepare the back mount:
1. Unbox the tools. A back-mount, a key, and a brown box are included in the package.
ACR350 Validator with QR Code Scanner – User Manual
Version 1.02
Key
Back-mount
Brown Box
