RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS

CPU OUTLET
CPU INLET
GPU OUTLET
BOTTOM
RADIATOR
OUTLET
BOTTOM
RADIATOR
INLET

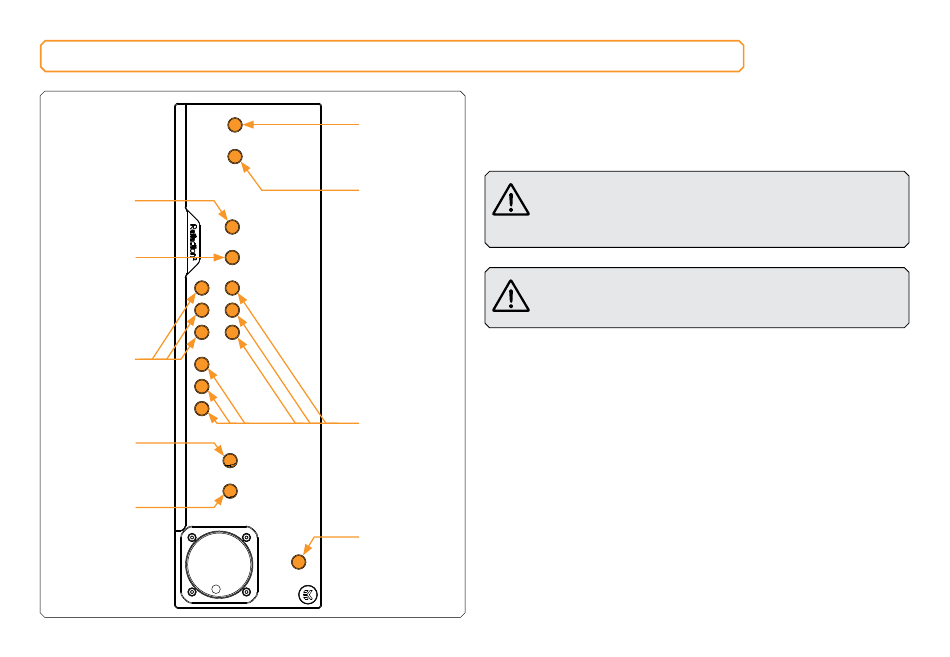

To complete your loop, all ports must be used as marked in the
image.
TOP RADIATOR
All remaining unused ports must be closed with supplied plugs,
INLET
using the EK-Loop Multi Allen Key.
If one of the prescribed components will not be installed
TOP RADIATOR
(ie. bottom radiator or GPU block) then one INLET and
OUTLET
one OUTLET port must still be joined together in order
for this distribution plate to function!
Only one INLET and one OUTLET port for the GPU
connection can be used, while all other INLET and
OUTLET GPU ports must be closed with G1/4 plugs.
GPU INLET
DRAIN
