Main Parts And Technical Specifications - EK-Quantum Reflection2 7000D D5 PWM D-RGB User Manual

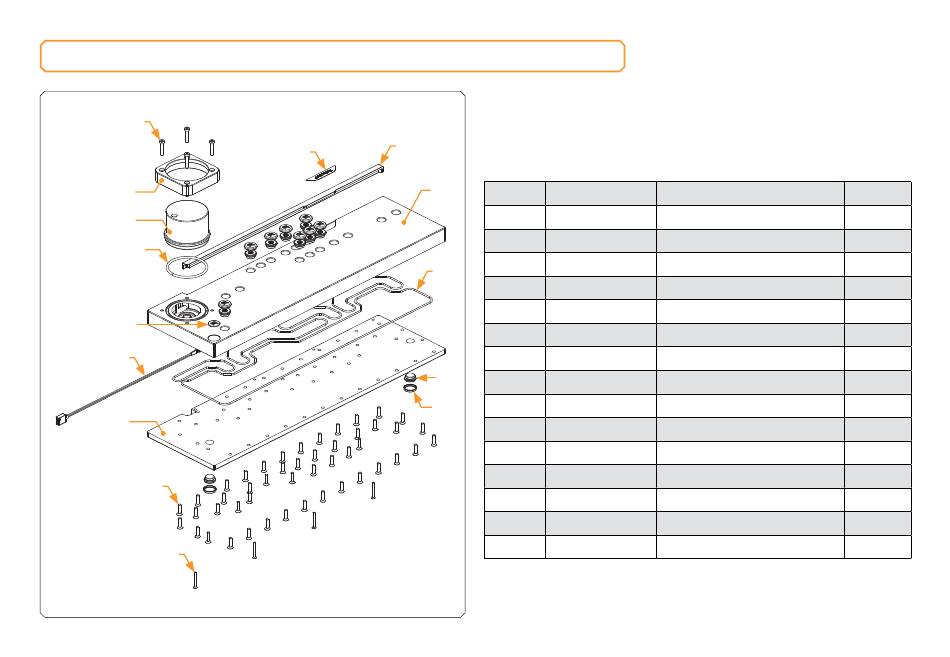

MAIN PARTS AND TECHNICAL SPECIFICATIONS

9
3
4
13
11
7
2
8
10
6
5
1
12
15
14
- 6 -
Technical Specification:
- Dimensions with the attached pump (W x D x H): 215.1 x 77.8 x 471.9 mm
- D-RGB LED count: 24
- D-RGB cable length: 500 mm
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Position EAN Description
1 105707 Bottom plate (Plexi)
2 105708 Top plate (plexi)
3 101803 Pump bracket
4 3831109837597 EK-D5 PWM (12V SATA)
5 104599 Mylar sticker
6 105709 LED Cover
7 100815 LED strip 500/400mm
8 8312 Screw M4x16 DIN7991
9 9061 Screw M3x25 DIN7991
10 8311 Screw M4x20 DIN7984
11 100663 EK - Badge
12 105712 OR Set
13 5154 Pump OR 52x3 mm
14 3831109834282 Plug Cover (Black)
15 102639 EK -Plug G1/4 (Nickel)
Quantity
1
1
1
1
1
1
1
47
4
4
1
1
1
10
10
