PREPARING AND INSTALLING THE DISTRIBUTION PLATE
M4 x 5 DIN7984 SCREW

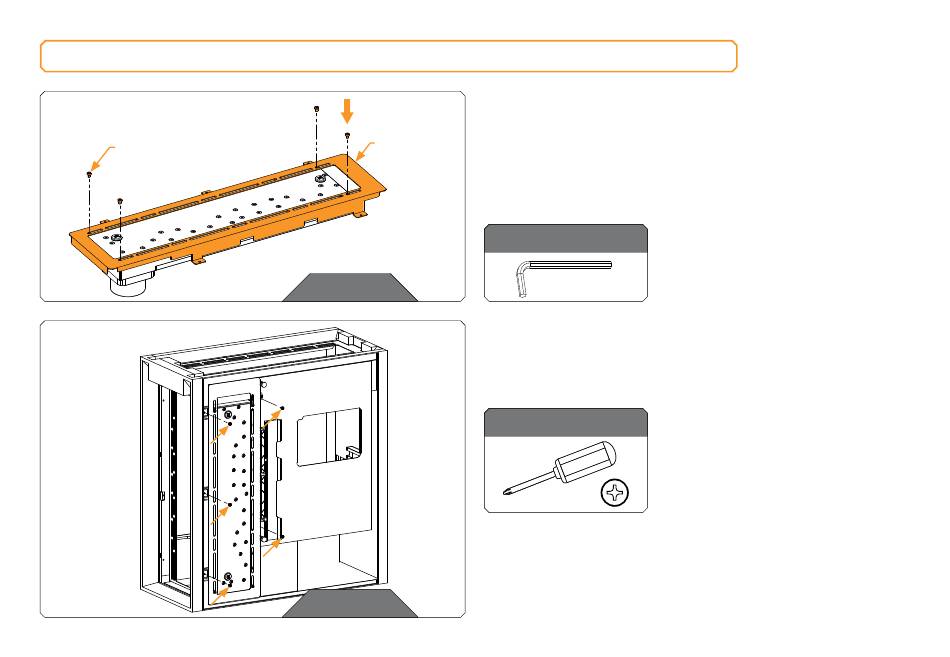

STEP 1
Carefully place the EK-Quantum Reflection
onto the saved Radiator bracket.
RADIATOR
BRACKET
Secure the distribution plate using Allen Key 2.5 mm and M4 x 5
DIN7984 Screws. Do not use excessive force.
For this step you will need:
Allen Key 2.5 mm (1 pc)
STEP 1
STEP 2
Secure the Radiator bracket with the pre-installed distribution plate
into the PC Case using five (5) saved factory-provided UNC screws.
For this step you will need:
Phillips Head Screwdriver
STEP 2
