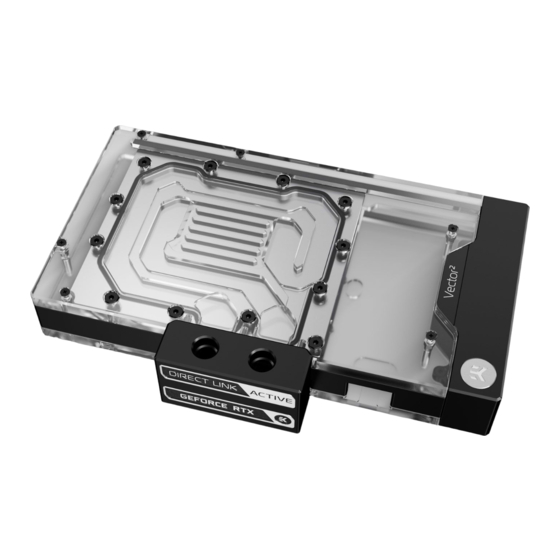

EK-Quantum Vector Master RTX 4090 D-RGB User Manual

EK-Quantum Vector Master RTX 4090 D-RGB User Manual

Gpu water block

Advertisement

Quick Links

EK-Quantum
Vector² Master RTX 4090 D-RGB
GPU WATER BLOCK
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vector Master RTX 4090 D-RGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EK-Quantum Vector Master RTX 4090 D-RGB

  • Page 1 EK-Quantum Vector² Master RTX 4090 D-RGB GPU WATER BLOCK USER GUIDE...
  • Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI NICKEL ACETAL PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER GeForce RTX™ 4090 GAMING OC PREPARING THE WATER BLOCK FOR INSTALLATION CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND ATTACHING THE WATER BLOCK INSTALLING THE BACKPLATE...
  • Page 4: Box Contents

    M2.5x4 AX1 Screw (7 pcs) M2.5x6 AX1 Screw (2 pc) M2.5x8 AX1 Screw (1 pc) Polyamid Washer M2.5 Standoff M2.5-M3 x 6.6mm EK-Quantum Vector Master RTX 4090 D-RGB M3x10 AX1 Screw (1 pc) 0.5mm (7 pcs) (1 pc) Thermal Pad F 1.0 mm (7 pcs) (3830046996732) Standoff Ø4.5/2.5 (1 pc)
  • Page 5: Water Block Dimensions

    WATER BLOCK DIMENSIONS 272 mm 176.3 mm 145.8 mm 27 mm 25.5 mm - 5 -...
  • Page 6: Technical Specifications And Water Block Parts

    TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI - Dimensions: (L x H x W): 272 x 155 x 27 mm - D-RGB LED count: 14 - D-RGB cable length: 50 cm - D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data | Blocked | Ground) Position Description...
  • Page 7: Nickel Acetal

    NICKEL ACETAL - Dimensions: (L x H x W): 272 x 155 x 27 mm - D-RGB LED count: 40 - D-RGB cable length: 50 cm - D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data | Blocked | Ground) Position Description Quantity...
  • Page 8: Preparing The Graphics Card

    PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER GeForce RTX™ 4090 GAMING OC Important! Before starting, make sure to have a clean, flat surface to work on. It is recommended to put foam or soft material to lay the graphics card on. STEP 1 First, unscrew...
  • Page 9: Preparing The Water Block For Installation

    PREPARING THE WATER BLOCK FOR INSTALLATION STEP 1 DO NOT REMOVE Unscrew six (6) Screws AX1 M2.5 x 8 mm. Remove the backplate M2.5 x 8 AX1 STANDOFFS together with the Screws and backplate standoffs. Standoffs must FROM SCREWS! stay on Screws AX1 M2.5 x 8 mm. Remove PCB cardboard. Save the BACKPLATE STANDOFF removed parts for later steps.
  • Page 10: Applying Thermal Compound

    STEP 2 Once cut to the size, Thermal Pads should be placed on the PCB, as shown in the picture: Before attaching the PCB to the Water Block, make sure all the Thermal Pads are placed correctly! Thermal Pad - 120 x 16 x 1.0 mm STEP 2 APPLYING THERMAL COMPOUND STEP 1...
  • Page 11: Attaching The Water Block

    ATTACHING THE WATER BLOCK STEP 1 The factory-provided I/O Bracket must be reused before placing the FACTORY- water block onto the GPU PCB. PROVIDED I/O BRACKET SCREW For this step, you will need: I/O Bracket Screw Phillips Head I/O Bracket (5 pcs) Screwdriver FACTORY-...
  • Page 12 STEP 3 Use five (5) M2.5 x 4 AX1 Screws and five (5) PVC washers to tighten M2.5 PVC WASHER M2.5 x 4 AX1 SCREW the PCB on the water block. An additional one (1) M2.5 x 6 AX1 Screw must be used without the PVC Washer (Marked in the picture).
  • Page 13: Installing The Backplate

    INSTALLING THE BACKPLATE STEP 1 After attaching the water block, a few more thermal pads need to be Thermal Pad F – 1.0 mm (120 x 16 mm) cut into smaller pieces to cover all the necessary components. EK made sure to provide you with more than an adequate quantity of thermal pads to complete this step.
  • Page 14: Attaching The Backplate

    ATTACHING THE BACKPLATE STEP 1 Position the Backplate (including screws and standoffs) onto BACKPLATE the GPU PCB. Make sure all the holes are aligned. Tighten the screws evenly. Before attaching the backplate, make sure all the Thermal Pads are placed correctly! Do not use excessive force! For this step, you will need: Phillips Head Screwdriver...
  • Page 15: Fittings And Tubing

    FITTINGS AND TUBING Screw in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block to the cooling loop. EK- PLUG G1/4 Do not forget to plug the remaining two openings using the enclosed EK-Plug G1/4 or its equivalent. EK recommends using EK fittings with all EK water blocks.
  • Page 16: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.
  • Page 17: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
