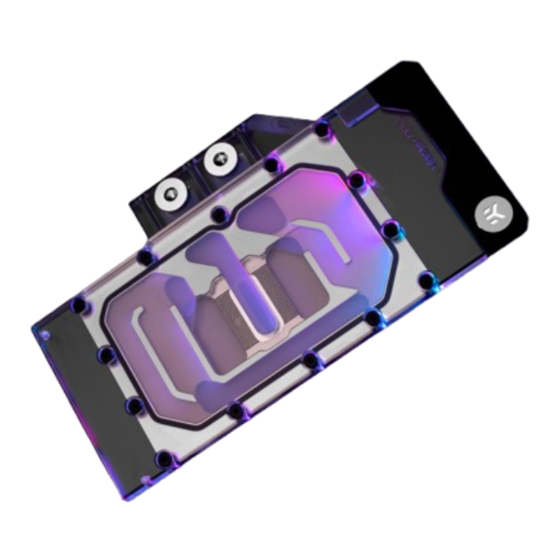

- Page 1 EK-Quantum Vector RE RTX 3080/3080Ti/3090 Active Backplate (PLEXI / ACETAL) USER GUIDE...
- Page 2 This product is intended for installation by expert users only. Please Before you start using this product, please follow these basic guidelines: consult with a qualified technician. Improper installation may result in damage to your equipment. EK assumes no liability whatsoever, Carefully read the manual before beginning with the expressed or implied, for the use of this product or its installation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS ACTIVE BACKPLATE DIMENSIONS REQUIRED TOOLS ACTIVE BACKPLATE SPECIFICATIONS AND MAIN PARTS INSTALLING THE ACTIVE BACKPLATE PREPARING THE GRAPHICS CARD CUTTING AND PLACING THERMAL PADS REMOVING THE TERMINAL METAL PLATE ATTACHING THE ACTIVE BACKPLATE INSTALLING FITTINGS AND TUBING CONNECTING THE D-RGB LED STRIP TESTING THE LOOP SUPPORT AND SERVICE... -
Page 4: Box Contents
M2.5x8 AX1 Screw (8 pcs) Thermal Pad G 1.0 mm (2 pcs) EK-Quantum Vector RE RTX 3080/3080Ti/3090 Active Backplate Thermal Pad G 1.5 mm (1 pc) Thermal Pad G 2.0 mm (2 pcs) Allen Key 2.5 mm (1 pc) -
Page 5: Active Backplate Dimensions
ACTIVE BACKPLATE DIMENSIONS 99.5 mm 128.5 mm 222.7 mm REQUIRED TOOLS Phillips Head Screwdriver Scissors - 5 -... -
Page 6: Active Backplate Specifications And Main Parts
ACTIVE BACKPLATE SPECIFICATIONS AND MAIN PARTS Technical Specifications: Dimensions (L x H x W): 223 x 124 x 33.4 mm D-RGB (Addressable RGB) Cable Length: 500 mm D-RGB LED Count: 9 M4 x 27 DIN7984 SCREW D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) EK-PLUG G1 O-RING 15x1 TERMINAL METAL PLATE... -
Page 7: Installing The Active Backplate
EK-Quantum Vector RE RTX 3080/3080Ti/3090 Active Backplate comes with its own terminal, meaning the original terminal, along M4 x 27 DIN7984 with two (2) 15x1 O-rings, on the EK-Quantum Vector RE RTX SCREW 3080/3080Ti/3090 water block has to be removed. -
Page 8: Cutting And Placing Thermal Pads
STEP 2 Thermal PAD G 1.0 mm (120 x 24 mm) CUTTING AND PLACING THERMAL PADS Your backplate comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components. EK made sure to 1 mm provide you with more than an adequate quantity of thermal pads to 120 mm... - Page 9 STEP 3 3080/3080Ti Version Once cut to size, thermal pads should be placed on the backplate, as illustrated below. Thermal Pad G 1.5 mm Thermal Pad G 2.0 mm 3090 Version Thermal Pad G 1.0 mm Thermal Pad G 1.5 mm STEP 3 Thermal Pad G 2.0 mm - 9 -...
-
Page 10: Removing The Terminal Metal Plate
STEP 4 REMOVING THE TERMINAL METAL PLATE TERMINAL METAL PLATE The Metal plate attached on the Terminal is meant as a precaution, to secure the two O-rings to prevent them from falling out of their sockets during transport and handling. Before the installation of the Active Backplate, this metal plate has to be removed. - Page 11 Place the active backplate on the PCB and make sure all holes are aligned. Position an M2.5 x 8 AX1 screw into each of the five (5) mounting holes (as shown in the image) and tighten them evenly with a Phillips head screwdriver. To avoid using excessive force, you can easily loosen up the three (3) M4 x 27 M2.5 x 8 AX1 SCREW 7984DIN screws pre-installed on the terminal, but be careful that two (2) 15 x...
-
Page 12: Installing Fittings And Tubing
EK-FITTING You can use any opening as an inlet/outlet port. The pre-mounted terminal is positioned for the optimal flow in the EK-Quantum Vector RE RTX 3080/3080Ti/3090 water block and in the EK-Quantum Vector RE RTX 3080/3080Ti/3090 Active Backplate. The terminal can be shifted for 180 degrees but by using it so, the inlet and outlet ports are changed. -
Page 13: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 4-pin D-RGB connector from the GPU water block to the D-RGB Header on your motherboard or controller. The LED strip will work only if the pin layout on the header is as follows: +5V, Data, Empty, Ground. -
Page 14: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
