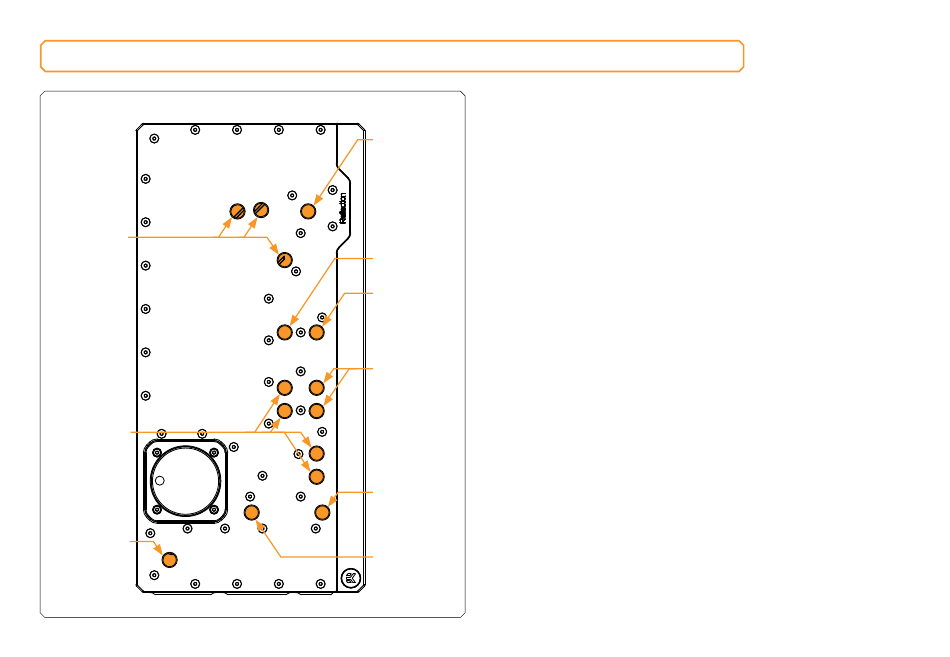

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS
TOP
RADIATOR
OUTLET
GPU INLET
DRAIN
It is mandatory to use at least one of each type of port and all
remaining ports should be sealed using the supplied plugs. The
TOP
EK-Loop Multi Allen Key (6mm, 8mm, 9mm) may be used to install
RADIATOR
all EK fittings, do not use excessive force.
INLET
If one of the prescribed components will not be installed (ie.
bottom radiator or GPU block) then one IN and one OUT port
must still be joined together in order for this distribution plate
to function!
CPU OUTLET
CPU INLET
GPU OUTLET
BOTTOM
RADIATOR
OUTLET
BOTTOM
RADIATOR
INLET
