www.ti.com
3.2.2 Software Features
The DAC63004WCSP-EVM GUI incorporates interactive functions that help configure an individual DACx3004W
2
device using I
C or SPI communication. These functions are built into several GUI pages, as shown in the
following subsections. The menu bar on the far left of the GUI allows the user to switch between pages. The
menu bar displays the High Level Configuration page with Basic DAC, Margining, and Function Generation
subpages, and the Low Level Configuration page.
Before using the GUI, see the respective device data sheet for detailed DACx3004W programming instructions.
3.2.2.1 High Level Configuration Page
Figure 3-6
shows the High Level Configuration page that provides an interface to quickly configure the
parameters and relevant register settings for the respective DACx3004W device. The High Level Configuration
page consists of the Basic DAC, Margining, and Function Generation subpages.
SLAU879 – DECEMBER 2022
Submit Document Feedback

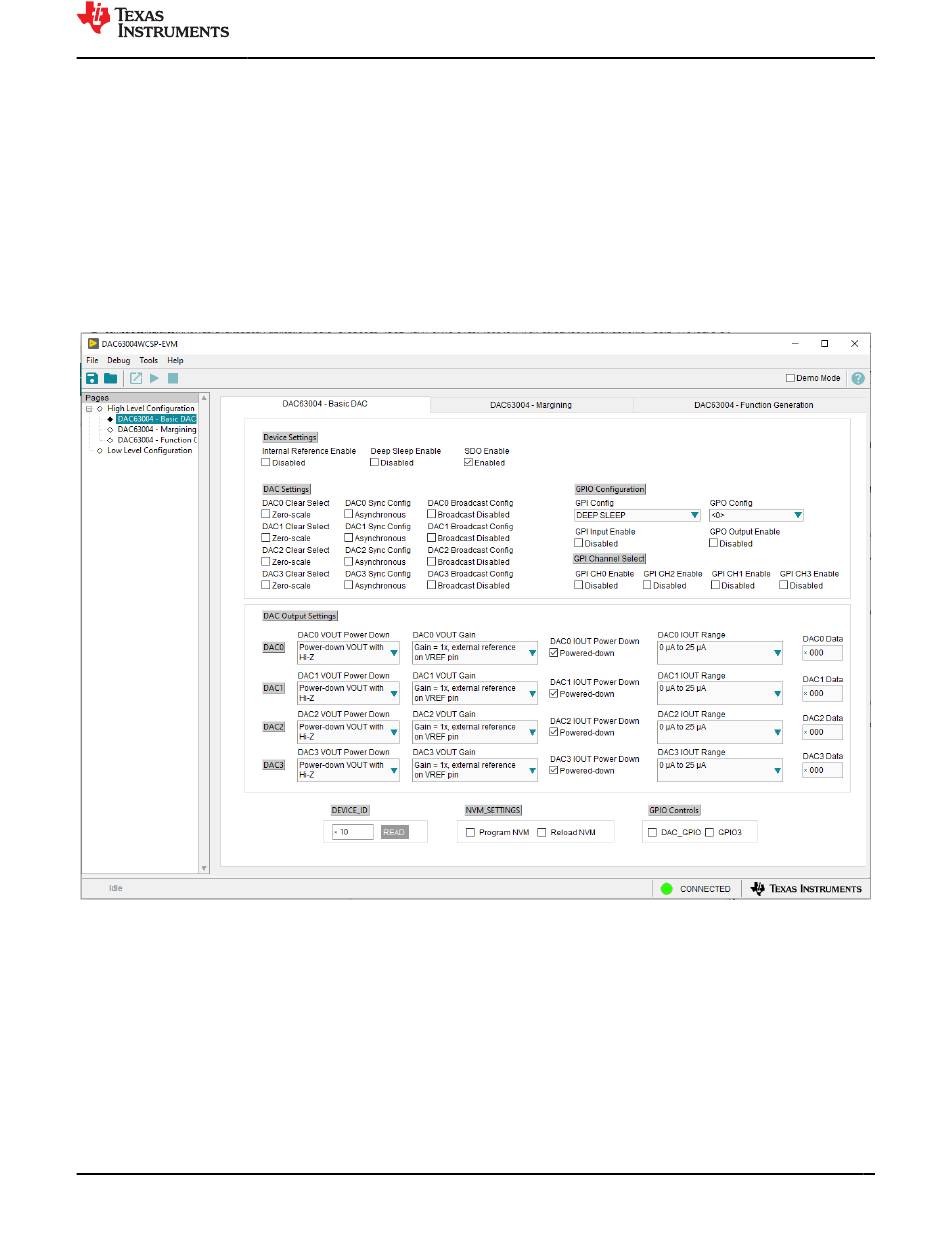

Figure 3-6. High Level Configuration Page
Copyright © 2022 Texas Instruments Incorporated
Detailed Description
DAC63004WCSP-EVM User's Guide
11
