www.ti.com
User's Guide
DAC63204EVM User's Guide
This user's guide describes the characteristics, operation, and use of the DAC63204EVM evaluation module
(EVM). This EVM is designed to evaluate the performance of the DAC63204, DAC53204, and
(DACx3204) commercial, buffered voltage output DACs in a variety of configurations. Throughout this document,
the terms evaluation board, evaluation module, and EVM are synonymous with the DAC63204EVM. This
document includes a schematic, printed-circuit board (PCB) layouts, and a complete bill of materials.
SLAU866 – NOVEMBER 2021
Submit Document Feedback
ABSTRACT
Copyright © 2021 Texas Instruments Incorporated
DAC43204
DAC63204EVM User's Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DAC63204EVM
Summary of Contents for Texas Instruments DAC63204EVM
- Page 1 User’s Guide DAC63204EVM User's Guide ABSTRACT This user’s guide describes the characteristics, operation, and use of the DAC63204EVM evaluation module (EVM). This EVM is designed to evaluate the performance of the DAC63204, DAC53204, and DAC43204 (DACx3204) commercial, buffered voltage output DACs in a variety of configurations. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the DAC63204EVM.
-
Page 2: Table Of Contents
Figure 2-1. Software Installation Path............................4 Figure 2-2. FTDI USB Drivers..............................5 Figure 2-3. Hardware Setup................................ Figure 3-1. DAC63204EVM Hardware Simplified Schematic...................... Figure 3-2. DAC63204EVM GUI Location........................... Figure 3-3. DAC63204EVM GUI Connection Detection......................Figure 3-4. High Level Configuration Page..........................10 Figure 3-5. Basic DAC Subpage.............................. -
Page 3: Overview
Table 1-1 details the contents of the EVM kit. Contact the nearest TI Product Information Center if any component is missing. Make sure to verify the latest versions of the related software at the Texas Instruments website, www.ti.com. Table 1-1. Contents of DAC63204EVM Kit... -
Page 4: System Setup
DAC63204EVM software installer executable. When the DAC63204EVM software is launched, an installation dialog window opens and prompts the user to select an installation directory. If left unchanged, the software location defaults to C:\Program Files (x86)\Texas... -
Page 5: Figure 2-2. Ftdi Usb Drivers
The FTDI USB drivers install in a second executable, shown in Figure 2-2, that is automatically launched after the DAC63204EVM software installation is complete. Figure 2-2. FTDI USB Drivers SLAU866 – NOVEMBER 2021... -
Page 6: Hardware Setup
The jumper settings on the DAC63204EVM are crucial to the proper operation of the EVM. Table 2-2 provides the details of the configurable jumper settings on the EVM. The DAC63204EVM pin numbers are defined in Figure 4-1. Table 2-2. DAC63204EVM Jumper Settings... -
Page 7: Detailed Description
3.1 Hardware Description The following sections provide detailed information on the EVM hardware and jumper configuration settings. 3.1.1 Theory of Operation A simplified schematic of the DAC63204EVM board is shown in Figure 3-1. There are two 16-pin connectors that provide access to all of the DAC pins. The GPIO, I C, and SPI signals from the onboard controller are connected to the DAC through three level translators. -
Page 8: Table 3-1. Dac63204Evm J1 Pin Definitions
Detailed Description www.ti.com 3.1.1.1 Signal Definitions The DAC63204EVM provides access to all DAC pins through connection J1 and J2, as listed in Table 3-1 Table 3-2. Table 3-1. DAC63204EVM J1 Pin Definitions Pin# Signal Description Ground DAC_SDI SPI SDI signal for DAC... -
Page 9: Software Description
Detailed Description 3.2 Software Description This section describes the features of the DAC63204EVM software, and discusses how to use these features. The software provides basic control of all the DACx3204 registers and functions. 3.2.1 Starting the Software To launch the software, locate the Texas Instruments folder in the All Programs menu, and select the DAC63204EVM icon. -
Page 10: Figure 3-4. High Level Configuration Page
Detailed Description www.ti.com 3.2.2 Software Features The DAC63204EVM GUI incorporates interactive functions that help configure an individual DACx3204 device using I C communication. These functions are built into several GUI pages, as shown in the following subsections. The menu bar on the far left of the GUI allows the user to switch between pages. The menu bar displays the High Level Configuration page with Basic DAC, Margining, and Function Generation subpages, and the Low Level Configuration page. -
Page 11: Figure 3-5. Basic Dac Subpage
GPIO pin on the respective DACx3204 device, and control the two GPIO outputs of the DAC63204EVM onboard controller. The register settings can be programmed or retrieved using the Program NVM or Reload NVM checkboxes, respectively. -
Page 12: Figure 3-6. Margining Subpage
(Trigger MHx). The register settings can be programmed or retrieved using the Program NVM or Reload NVM checkboxes, respectively. Figure 3-6. Margining Subpage DAC63204EVM User's Guide SLAU866 – NOVEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 13: Figure 3-7. Function Generation Subpage
The register settings can be programmed or retrieved using the Program NVM or Reload NVM checkboxes, respectively. Figure 3-7. Function Generation Subpage SLAU866 – NOVEMBER 2021 DAC63204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 14: Figure 3-8. Low Level Configuration Page
Write Selected or Write Modified buttons are pressed. By default, Immediate Update Mode is selected for the Low Level Configuration page write operations. Figure 3-9. Low Level Configuration Page Options DAC63204EVM User's Guide SLAU866 – NOVEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 15: Schematic, Pcb Layout, And Bill Of Materials
Schematic, PCB Layout, and Bill of Materials 4 Schematic, PCB Layout, and Bill of Materials This section contains the schematics, printed circuit board (PCB) layout diagrams, and a complete bill of materials for the DAC63204EVM. 4.1 Schematic VCCIO_FTDI VCCIO_FTDI... -
Page 16: Figure 4-2. Dac63204Evm Schematic
DAC_A0 DAC_GPIO DAC_GPIO/SDO DAC_A0/SDI DAC_SDO DAC_SDI DAC_SDO DAC_SDI DAC_SCL DAC_SDA DAC_SCL DAC_SDA DAC_SCL/SYNC DAC_SDA/SCLK DAC_SYNC DAC_SCLK DAC_SYNC DAC_SCLK Figure 4-2. DAC63204EVM Schematic Page 2 DAC63204EVM User's Guide SLAU866 – NOVEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 17: Pcb Layout

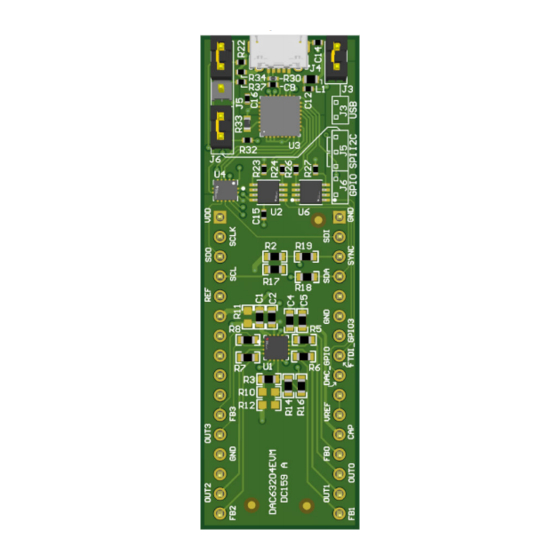

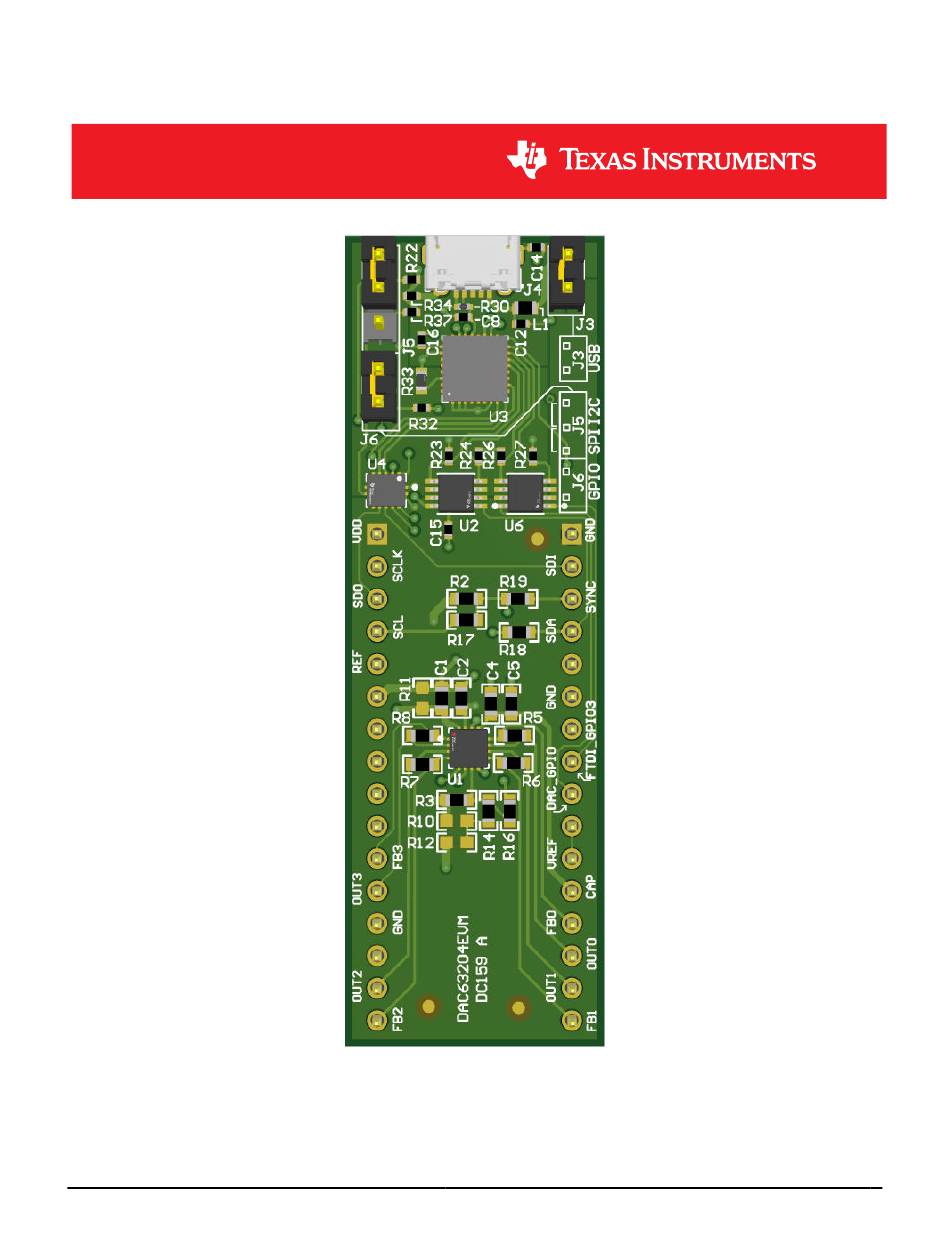

Schematic, PCB Layout, and Bill of Materials 4.2 PCB Layout Figure 4-3. DAC63204EVM PCB Components Layout Figure 4-4. DAC63204EVM PCB Layers SLAU866 – NOVEMBER 2021 DAC63204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 18: Bill Of Materials
Schematic, PCB Layout, and Bill of Materials www.ti.com 4.3 Bill of Materials Table 4-1. DAC63204EVM Bill of Materials Designator Quantity Value Description Package Reference Part Number Manufacturer !PCB Printed Circuit Board DC159 C1, C2, C4 0.1 µF CAP, CERM, 0.1 µF, 50 V,+/- 5%, X7R, 0603 0603 06035C104JAT2A CAP, CERM, 1 µF, 50 V,+/- 10%, X7R, 0805 0805... - Page 19 Schematic, PCB Layout, and Bill of Materials Table 4-1. DAC63204EVM Bill of Materials (continued) Designator Quantity Value Description Package Reference Part Number Manufacturer 12 k 12 kOhms ±1% 0.1W, 1/10W Chip Resistor 0402 ERJ-2RKF1202X Panasonic ECG 0402 (1005 Metric) Automotive AEC-Q200...
- Page 20 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 21 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 22 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 23 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 24 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
- Page 25 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2021, Texas Instruments Incorporated...
