Detailed Description
3.2.2.1.1 Basic DAC Subpage

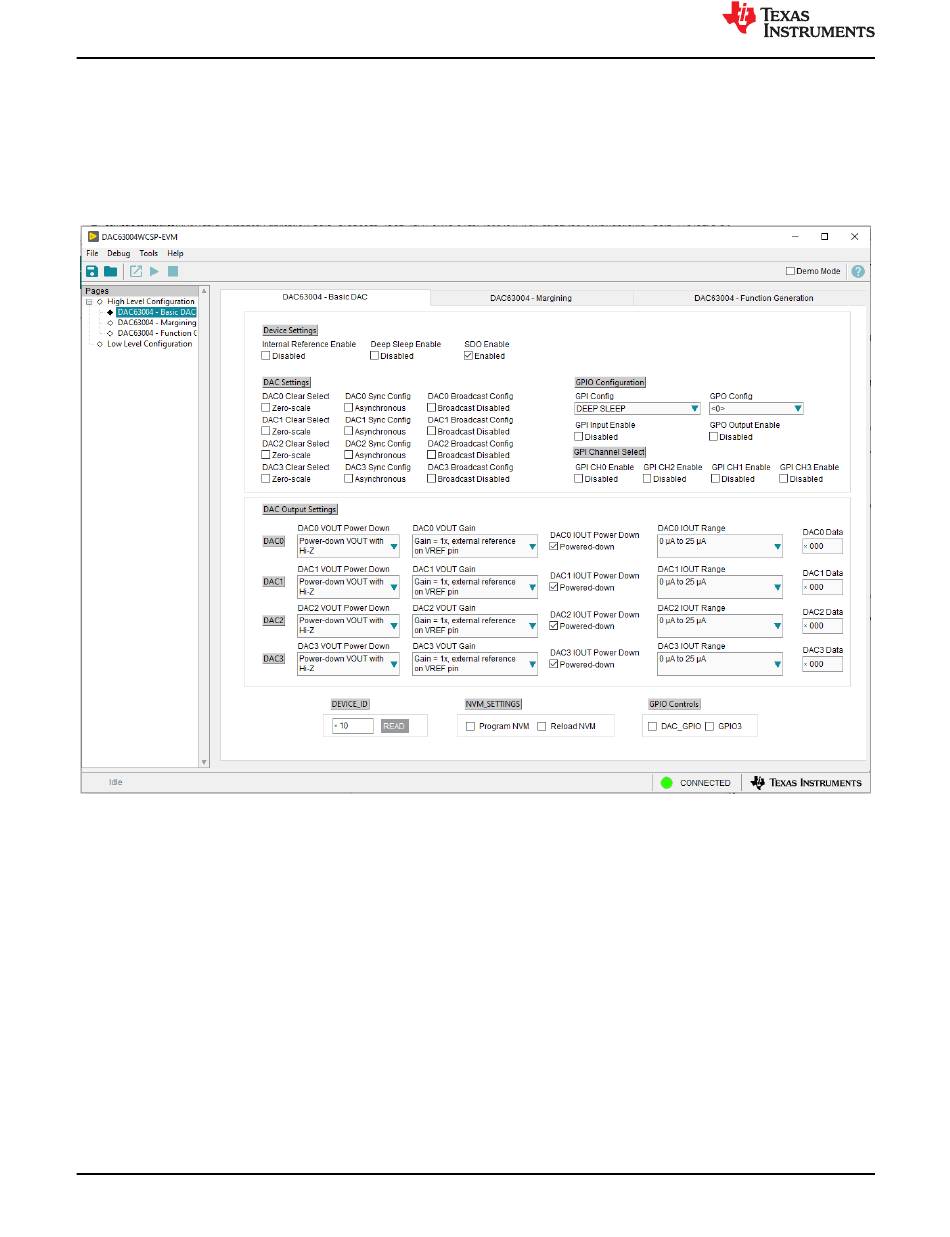

Figure 3-7
shows the Basic DAC subpage that provides an interface to quickly power up, select the reference
and output span, and program the output voltage or current for the respective DACx3004W device. When VDD
is applied, the DACx3004W device starts up in Hi-Z power-down mode by default. The Basic DAC subpage also
provides controls to configure the GPIO pin on the respective DACx3004W device, and control the two GPIO
outputs of the DAC63004WCSP-EVM onboard controller. The register settings can be programmed or retrieved
using the Program NVM or Reload NVM checkboxes, respectively.
12
DAC63004WCSP-EVM User's Guide
Figure 3-7. Basic DAC Subpage
Copyright © 2022 Texas Instruments Incorporated
www.ti.com
SLAU879 – DECEMBER 2022
