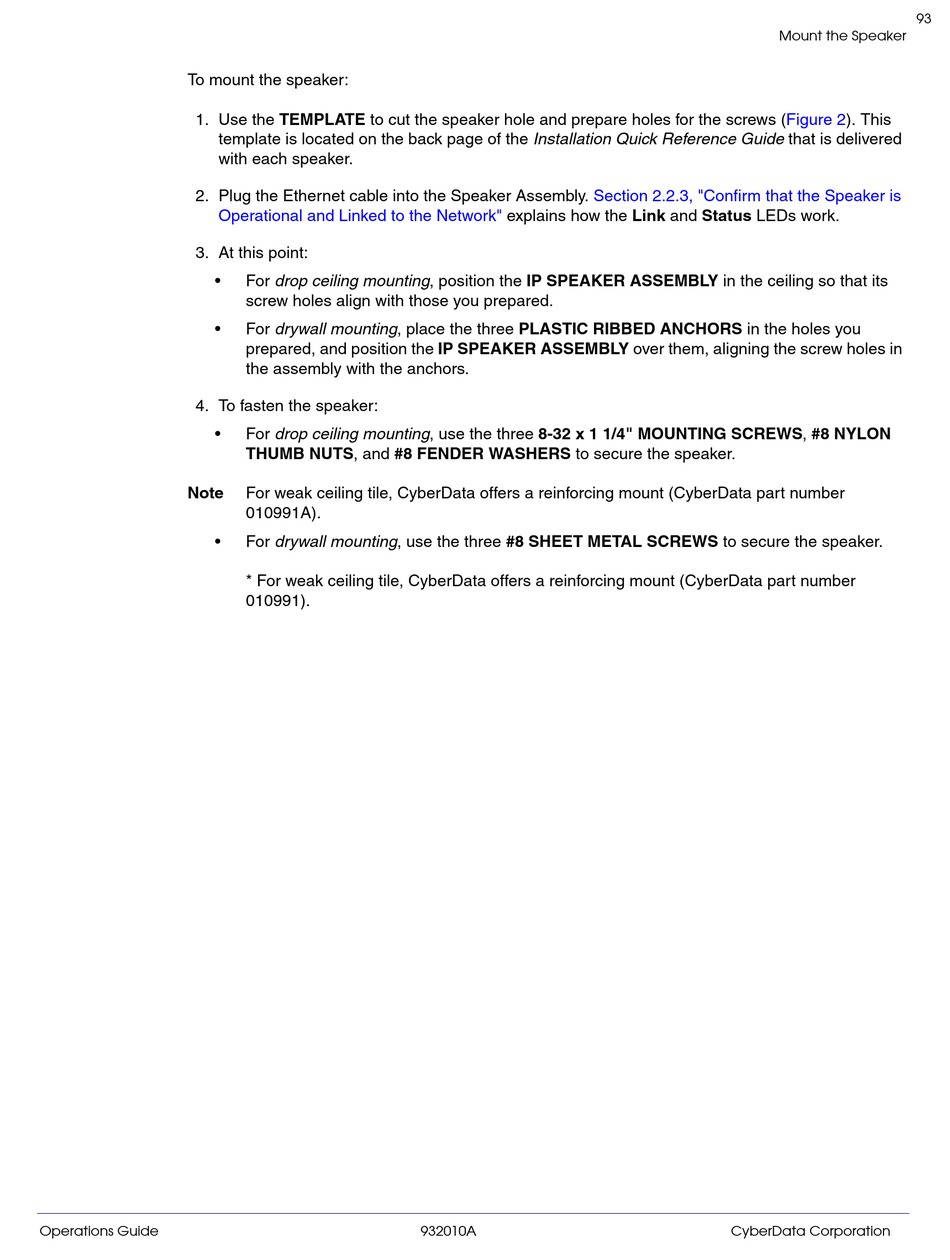

To mount the speaker:
1. Use the TEMPLATE to cut the speaker hole and prepare holes for the screws
2. Plug the Ethernet cable into the Speaker Assembly.
3. At this point:
•
•
4. To fasten the speaker:
•
Note
•
Operations Guide
template is located on the back page of the Installation Quick Reference Guide that is delivered
with each speaker.
Operational and Linked to the Network"
For drop ceiling mounting, position the IP SPEAKER ASSEMBLY in the ceiling so that its
screw holes align with those you prepared.
For drywall mounting, place the three PLASTIC RIBBED ANCHORS in the holes you
prepared, and position the IP SPEAKER ASSEMBLY over them, aligning the screw holes in
the assembly with the anchors.
For drop ceiling mounting, use the three 8-32 x 1 1/4" MOUNTING SCREWS, #8 NYLON
THUMB NUTS, and #8 FENDER WASHERS to secure the speaker.
For weak ceiling tile, CyberData offers a reinforcing mount (CyberData part number
010991A).
For drywall mounting, use the three #8 SHEET METAL SCREWS to secure the speaker.

* For weak ceiling tile, CyberData offers a reinforcing mount (CyberData part number
010991).
Section 2.2.3, "Confirm that the Speaker is
explains how the Link and Status LEDs work.
