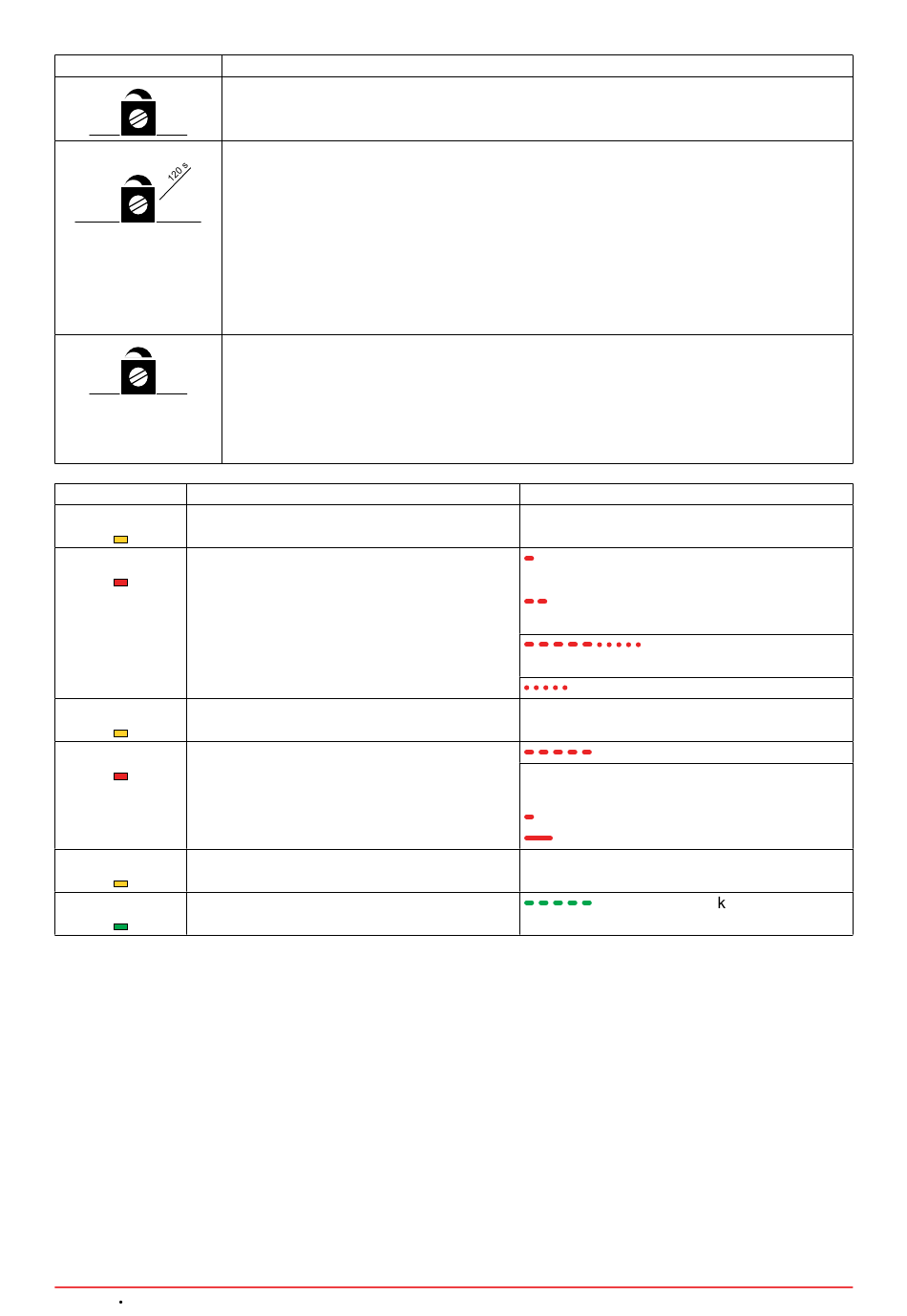

Trimmer
VA-VC Opening speed adjustment. Adjusts the opening speed.
Closing speed adjustment. Adjusts the closing speed.
min max
TC Setting automatic closing time. From 0 to 120 s.
With DIP3=OFF, once a safety switch has been activated, the counter starts as soon
as the safety switch is released (for example after passing through the photocells),
and lasts for a period of time set with trimmer TC (50%).
0 s Disabled
With DIP3=ON, the counter starts when automation is opened and lasts for the entire
duration set with trimmer TC (100%).
NOTE: after the activation of the stop command, once contact 1-9 has closed again,
automatic closing is only enabled after a total, partial or step-by-step opening com-
mand.
R1 Obstacle thrust adjustment.
The control panel is equipped with a safety system that stops motion if an obstacle is
encountered during an opening operation and inverts the movement during a closing
min max
operation.
R1=MIN gives maximum obstacle sensitivity (minimum thrust).
R1=MAX gives maximum thrust.
LED
IN Receipt of command or change in status of
a dip-switch.
SIG Transmitter enabling/storage phase.
11 0-11 limit switch contact is open.
SA At least one of the safety contacts is open.
12 0-12 limit switch contact is open.
POWER ALARM Power supply on.
IP1982EN 2012-03-22
Description
On
8
Flashing
/
Reception of a radio transmission of a
stored transmitter.
Reception of a radio transmission of a not
stored transmitter.
Cancellation of transmitters
in progress.
Memory damaged.
/
Safety test failure (terminal 41).
Operations count performed (only when con-
trol panel is switched on):
= 1000 operations
= 10000 operations
/
Encoder not wor ing.
